Fabric properties
Semi transparent
35% Polyester, 65% PVC, aluminium backed
320 g/m²
0.45 mm
235 cm
240 cm
Features / Technical properties
8
Flame retardant
Optimised for workstations
Low heat transmittance
Antimicrobial (ASTM - SGS)
Applicable in humid areas
Oeko-Tex
Special colours from 1’200 m
Weldable
Washing instructions
Optical and solar coefficients (± 5%, DIN EN 410)
| Colour | |||||||
|---|---|---|---|---|---|---|---|
| Colour 01 | Tv(%) 6.4 | Ts(%) 6.5 | Rs(%) 77.1 | As(%) 16.4 | Tuv(%) 5.6 | Fc() 0.43 | gtot() 0.31 |
| Colour 02 | Tv(%) 7.6 | Ts(%) 7.8 | Rs(%) 76.1 | As(%) 16.1 | Tuv(%) 6.9 | Fc() 0.44 | gtot() 0.32 |
| Colour 03 | Tv(%) 3.4 | Ts(%) 3.6 | Rs(%) 79.2 | As(%) 17.2 | Tuv(%) 2.6 | Fc() 0.42 | gtot() 0.30 |
| Colour 04 | Tv(%) 4.3 | Ts(%) 4.4 | Rs(%) 80.4 | As(%) 15.2 | Tuv(%) 4.1 | Fc() 0.41 | gtot() 0.29 |
| Colour 05 | Tv(%) 5.6 | Ts(%) 5.6 | Rs(%) 75.8 | As(%) 18.6 | Tuv(%) 5.6 | Fc() 0.44 | gtot() 0.32 |
Fc + gtot: Value calculated with glass: 0.72 / Ug = 1.6 W/m² K, DIN EN 13363-1
Classification of solar shading devices (DIN EN 14501:2021)
| Colour | Glare control | Privacy at night | Sight contact with the outside | Daylight utilisation |
|---|---|---|---|---|
| Colour 01 | Glare control 1 | Privacy at night 2 | Sight contact with the outside 2 | Daylight utilisation 1 |
| Colour 02 | Glare control 1 | Privacy at night 2 | Sight contact with the outside 2 | Daylight utilisation 1 |
| Colour 03 | Glare control 1 | Privacy at night 2 | Sight contact with the outside 2 | Daylight utilisation 1 |
| Colour 04 | Glare control 1 | Privacy at night 2 | Sight contact with the outside 2 | Daylight utilisation 1 |
| Colour 05 | Glare control 4 | Privacy at night 2 | Sight contact with the outside 2 | Daylight utilisation 1 |
0: No effect, 1: Low effect, 2: Medium effect, 3: High effect, 4: Very high effect
Downloads
Flame retardant
On request:
Class 1 (UNI 8456)
Certificates
On request:
Antimicrobial

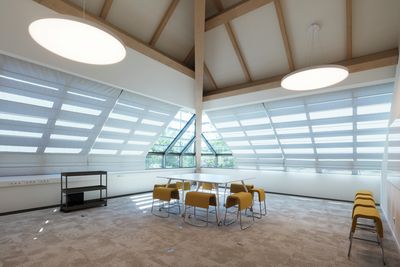

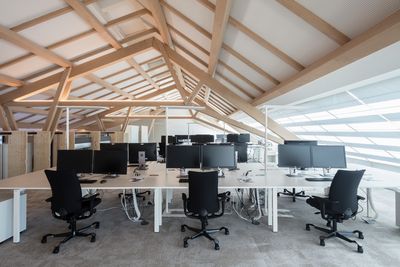

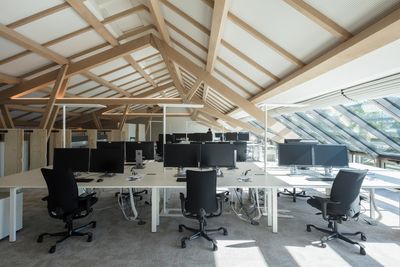

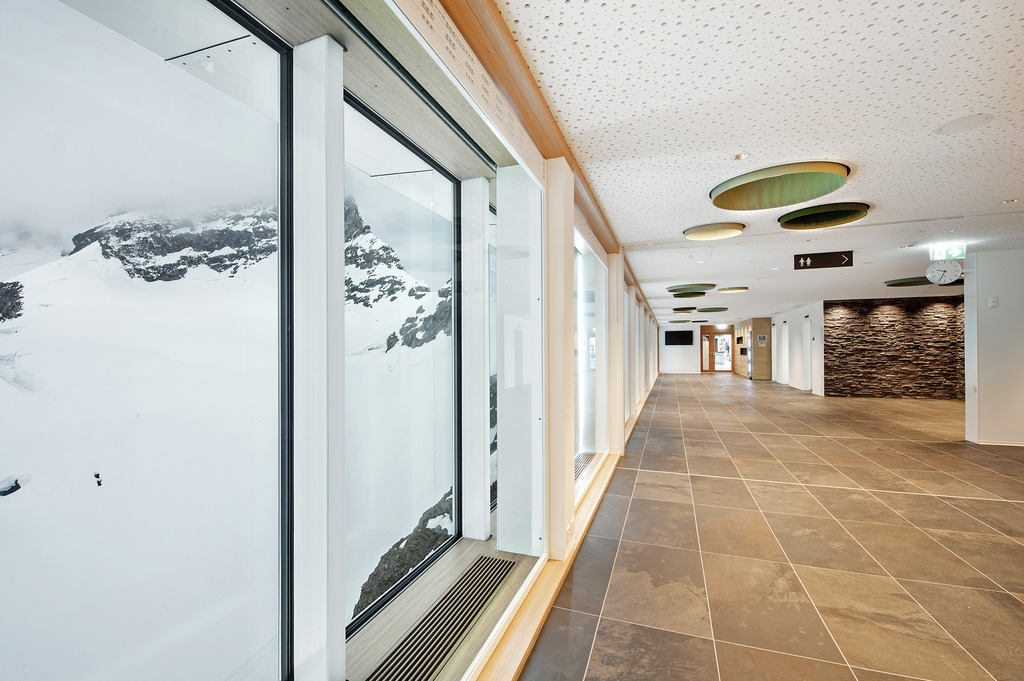

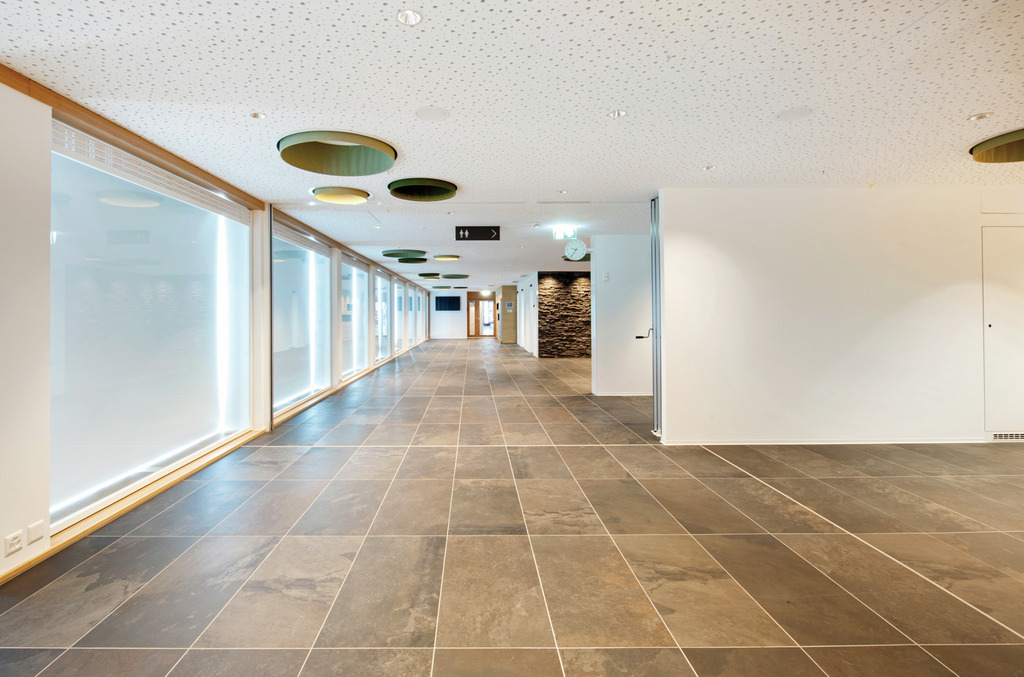

Inspiration
