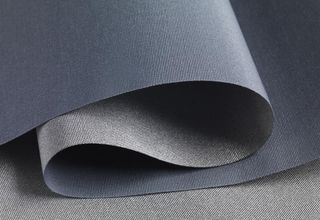

Fabric properties
Semi transparent

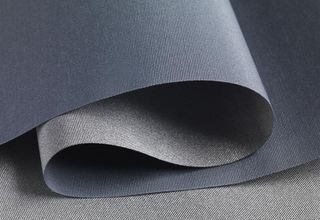

Polyester Trevira CS, aluminium backed
220 g/m²
0.43 mm
235 cm
12.7 cm, 240 cm
Features / Technical properties
5-6
Alpha-w = 0.45 / 0.60
Flame retardant
Optimised for workstations
Low heat transmittance
Digital printing
Oeko-Tex
Special colours from 500 m
Washing instructions
Optical and solar coefficients (± 5%, DIN EN 410)
| Colour | |||||||
|---|---|---|---|---|---|---|---|

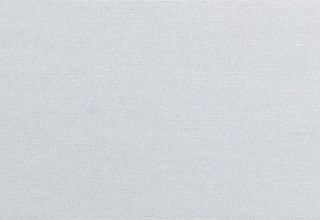

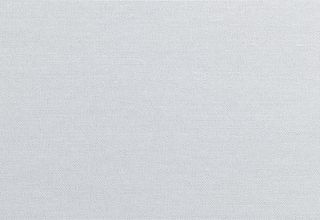

| Colour 111 | Tv(%) 7.0 | Ts(%) 6.0 | Rs(%) 50.0 | As(%) 44.0 | Tuv(%) 4.0 | Fc() 0.61 | gtot() 0.44 |

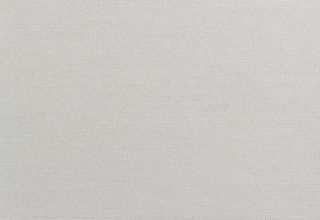

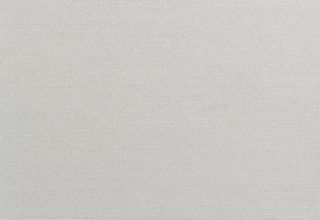

| Colour 113 | Tv(%) 5.0 | Ts(%) 6.0 | Rs(%) 49.0 | As(%) 45.0 | Tuv(%) 3.0 | Fc() 0.61 | gtot() 0.44 |

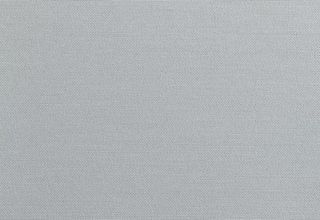

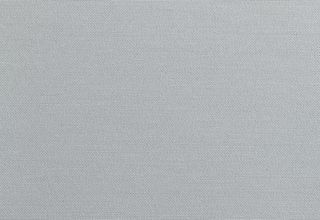

| Colour 114 | Tv(%) 3.0 | Ts(%) 5.0 | Rs(%) 46.0 | As(%) 49.0 | Tuv(%) 2.0 | Fc() 0.63 | gtot() 0.45 |

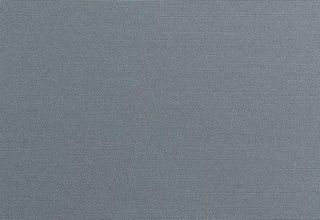

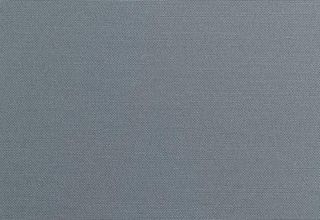

| Colour 115 | Tv(%) 2.0 | Ts(%) 4.0 | Rs(%) 53.0 | As(%) 43.0 | Tuv(%) 2.0 | Fc() 0.58 | gtot() 0.42 |
Fc + gtot: Value calculated with glass: 0.72 / Ug = 1.6 W/m² K, DIN EN 13363-1
Classification of solar shading devices (DIN EN 14501:2021)
| Colour | Glare control | Privacy at night | Sight contact with the outside | Daylight utilisation |
|---|---|---|---|---|
| Colour 111 | Glare control 4 | Privacy at night 2 | Sight contact with the outside 1 | Daylight utilisation 1 |
| Colour 113 | Glare control 4 | Privacy at night 2 | Sight contact with the outside 1 | Daylight utilisation 1 |
| Colour 114 | Glare control 4 | Privacy at night 2 | Sight contact with the outside 2 | Daylight utilisation 1 |
| Colour 115 | Glare control 4 | Privacy at night 2 | Sight contact with the outside 2 | Daylight utilisation 1 |
0: No effect, 1: Low effect, 2: Medium effect, 3: High effect, 4: Very high effect
Downloads
Flame retardant
On request:
NFPA 701
M1 (NF P 92-503/5/7)
IMO
Proven acoustic properties
On request:
Flach, 10 cm
