Basicscreen
1%, 5%, 10%

1%

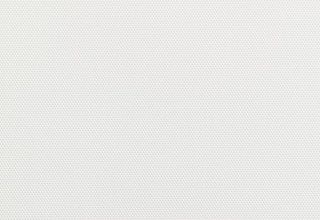

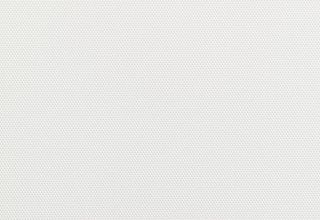

3001

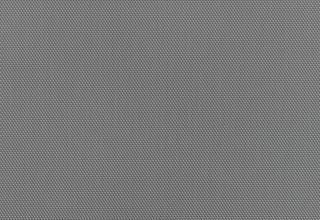

1%

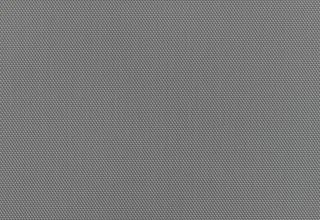

3006

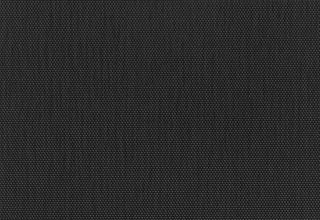

1%

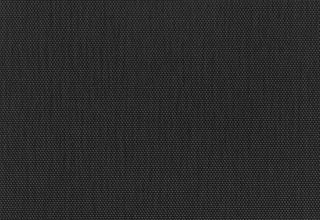

3007

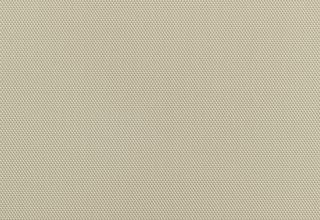

1%

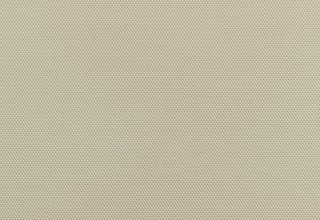

3015

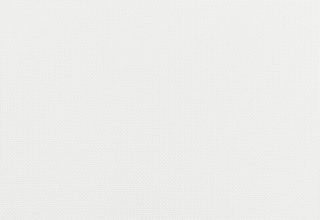

5%

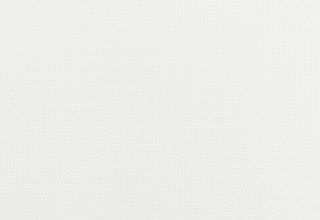

3001

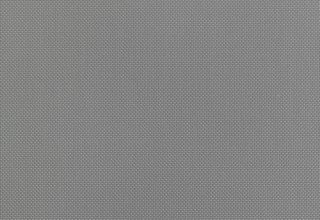

5%

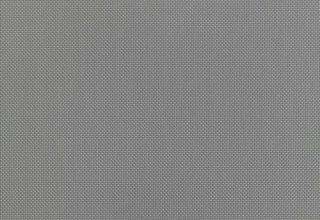

3006

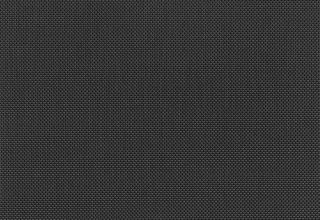

5%

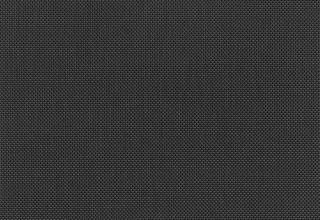

3007
5%

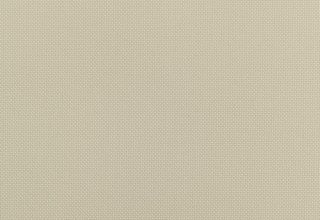

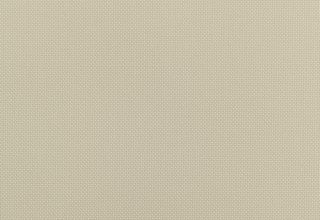

3015
10%

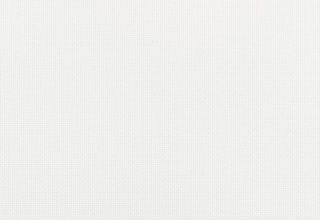

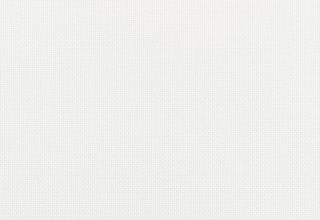

3001

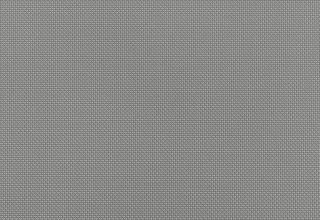

10%

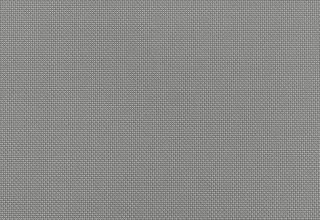

3006

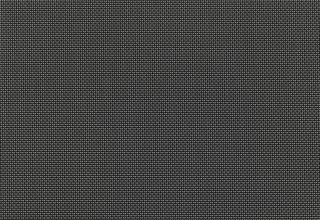

10%

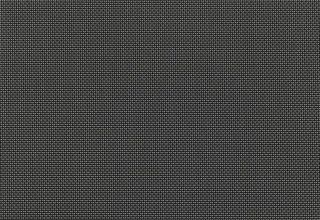

3007

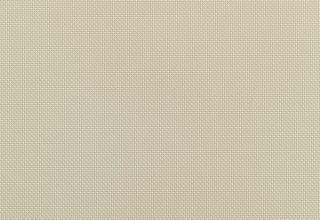

10%

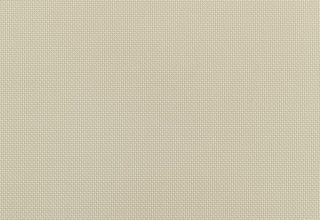

3015

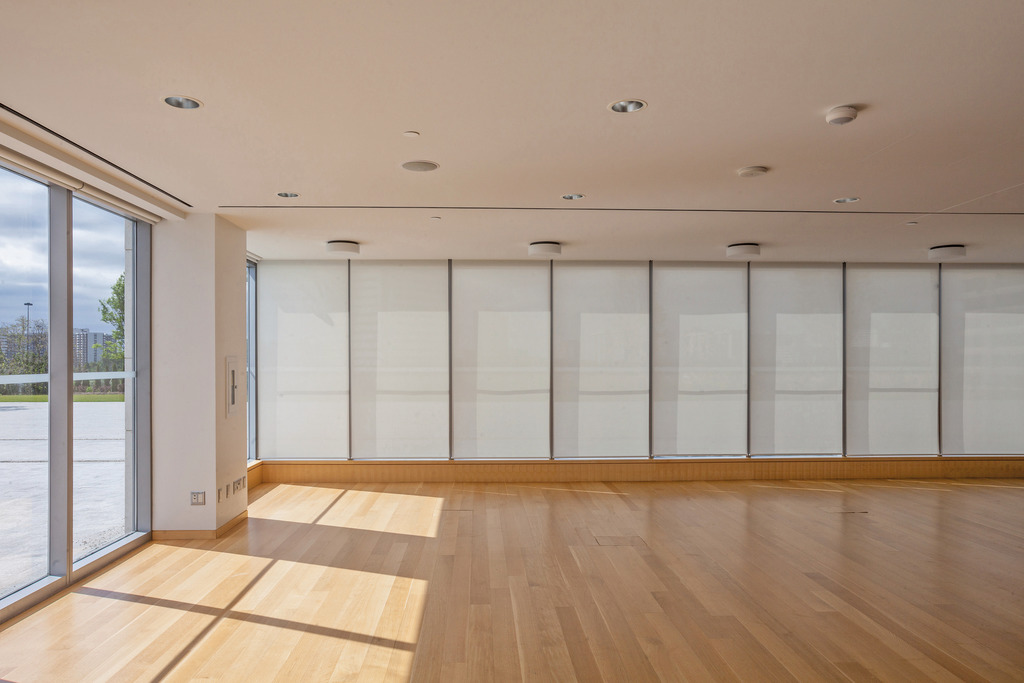

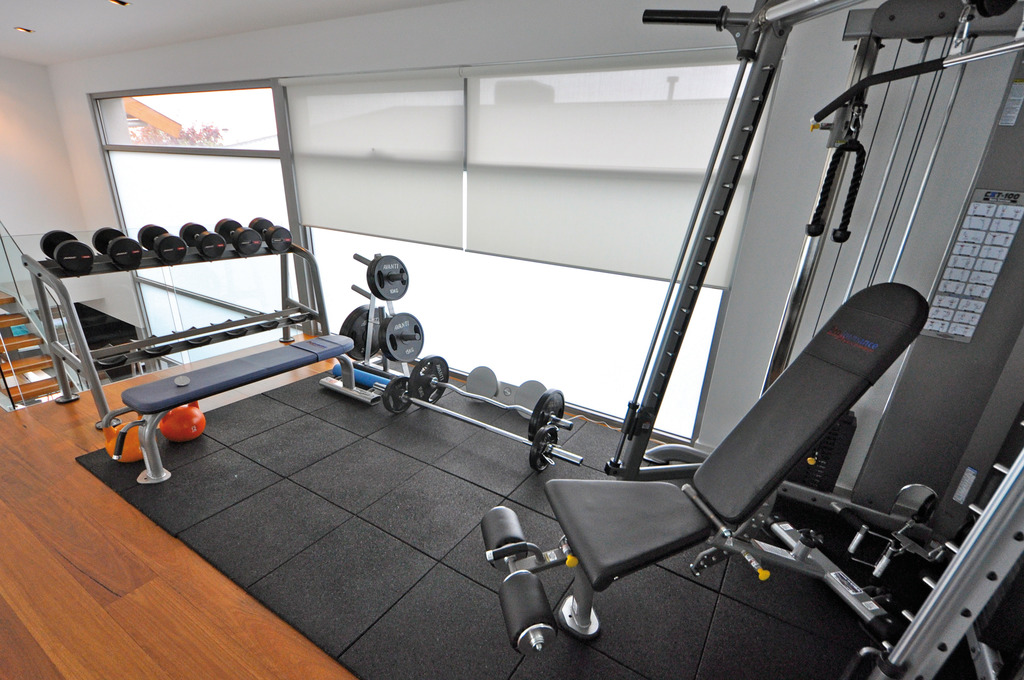

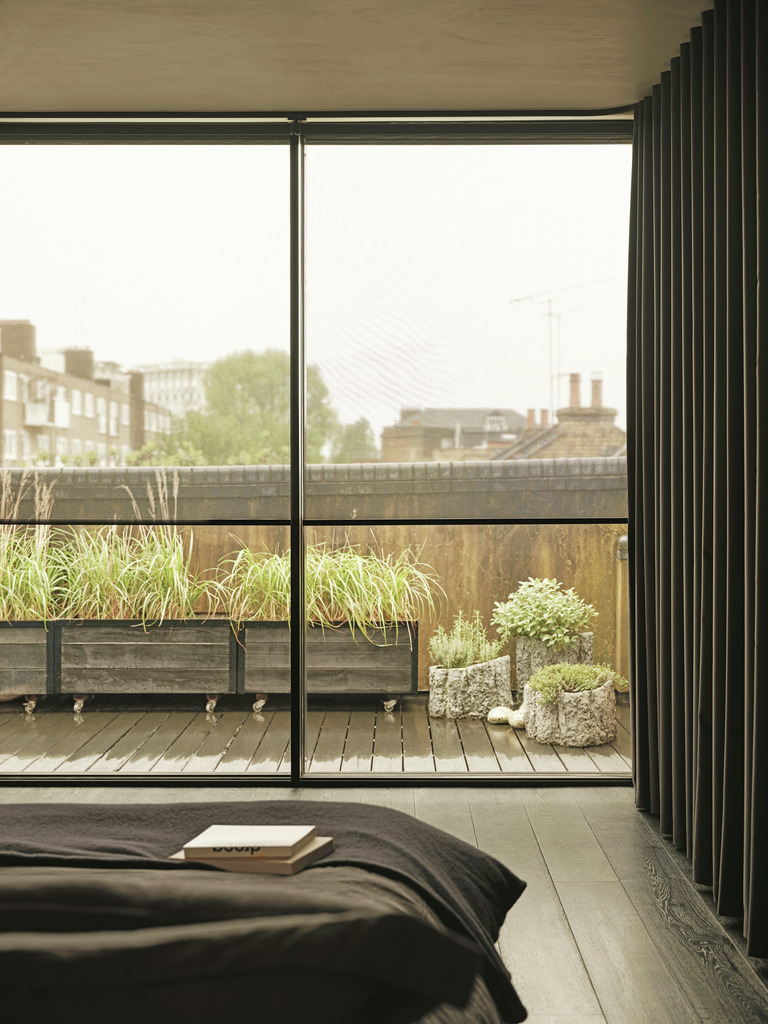

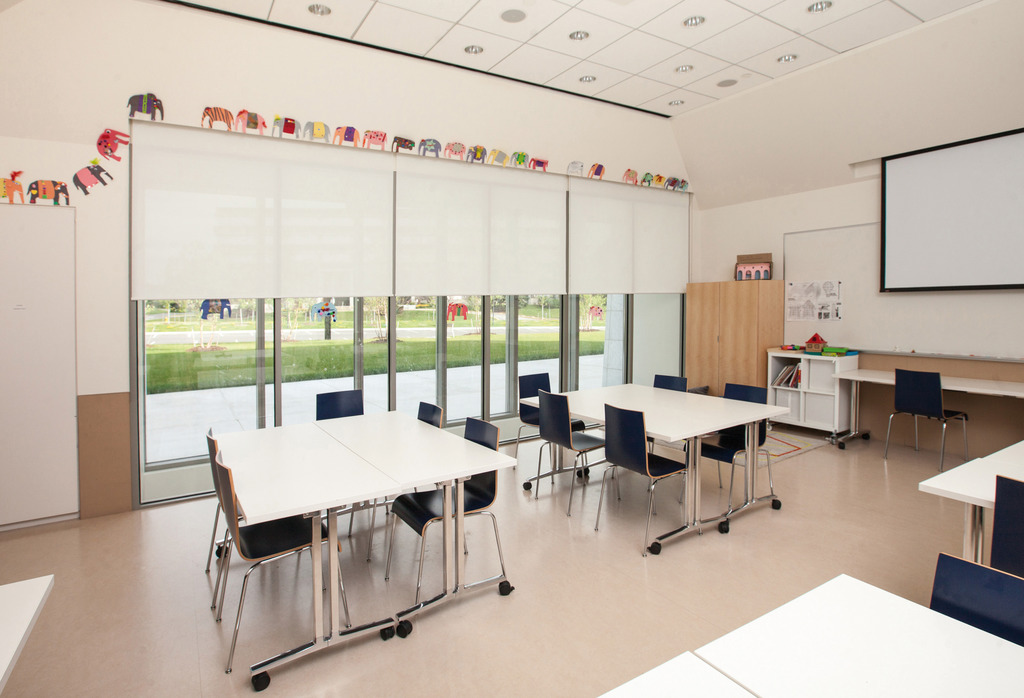

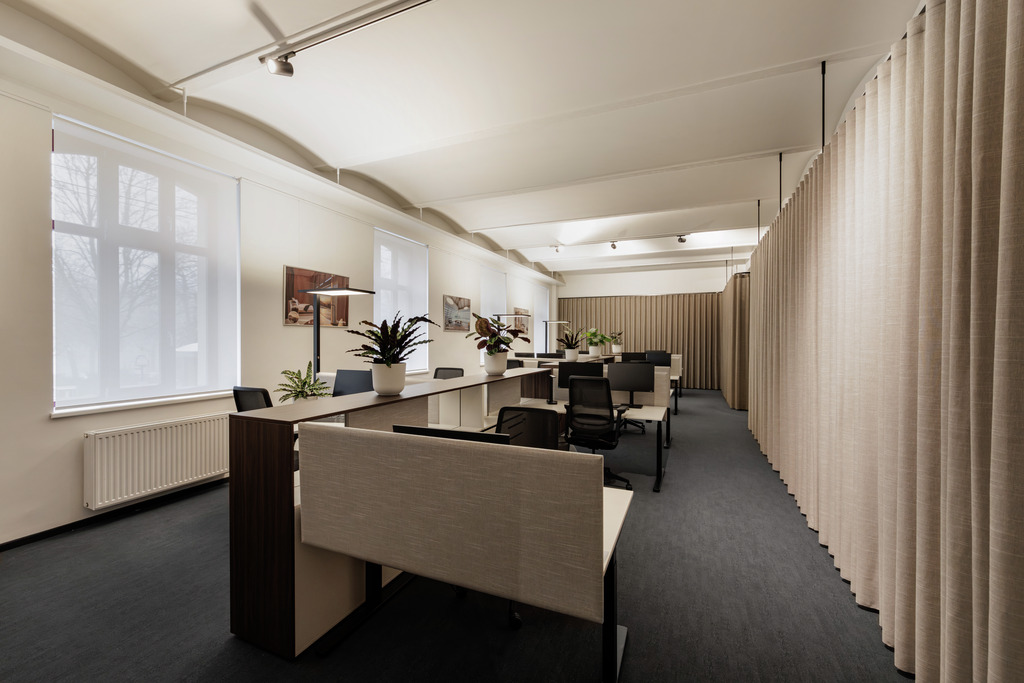

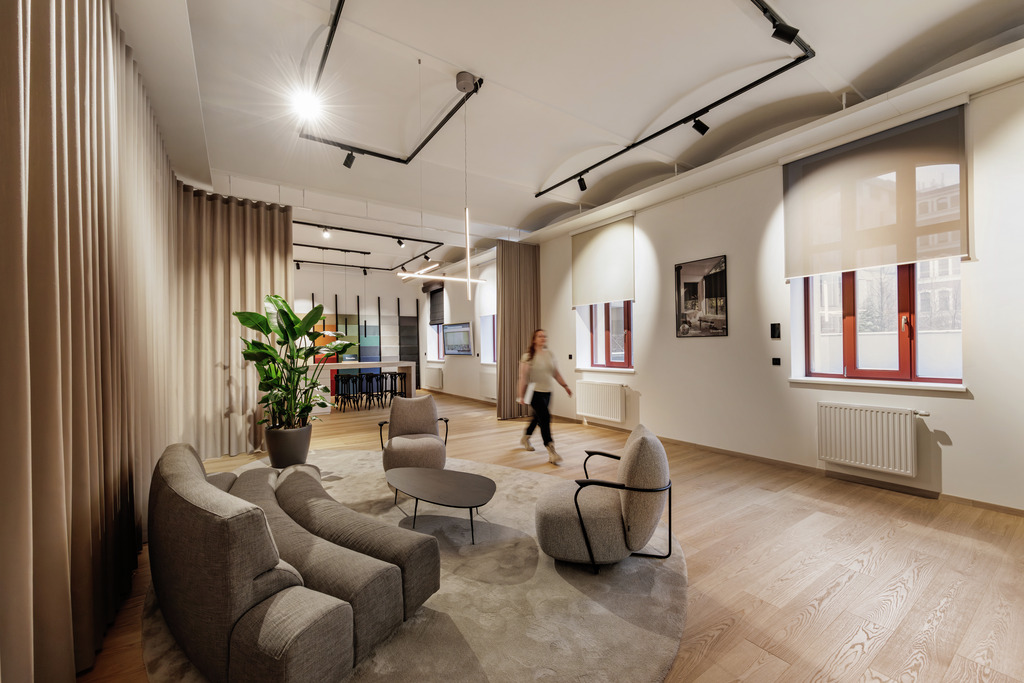

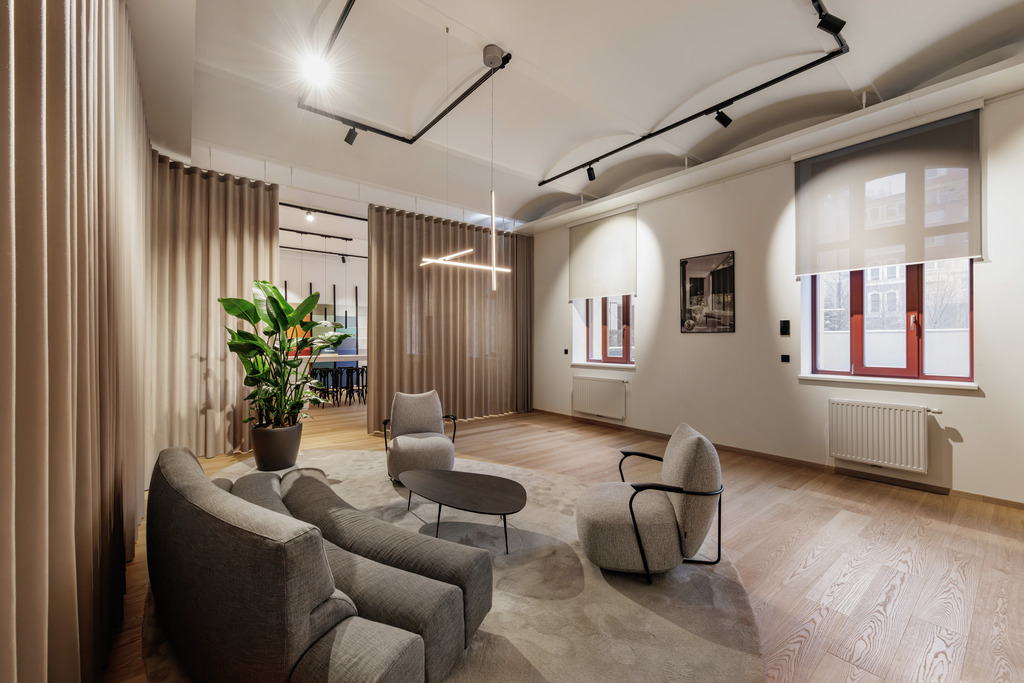

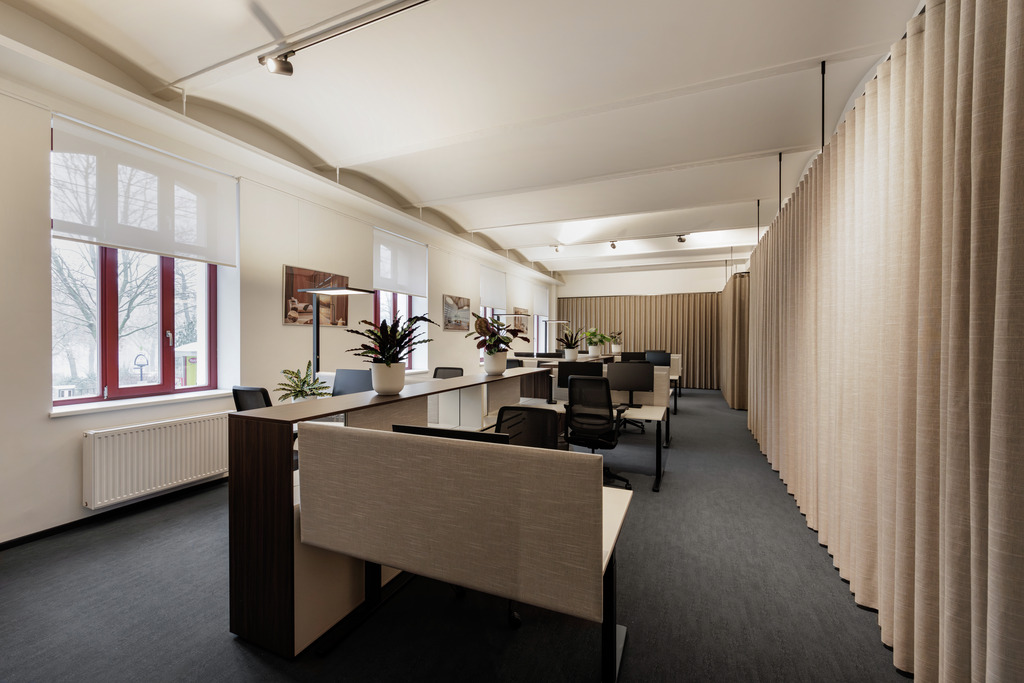

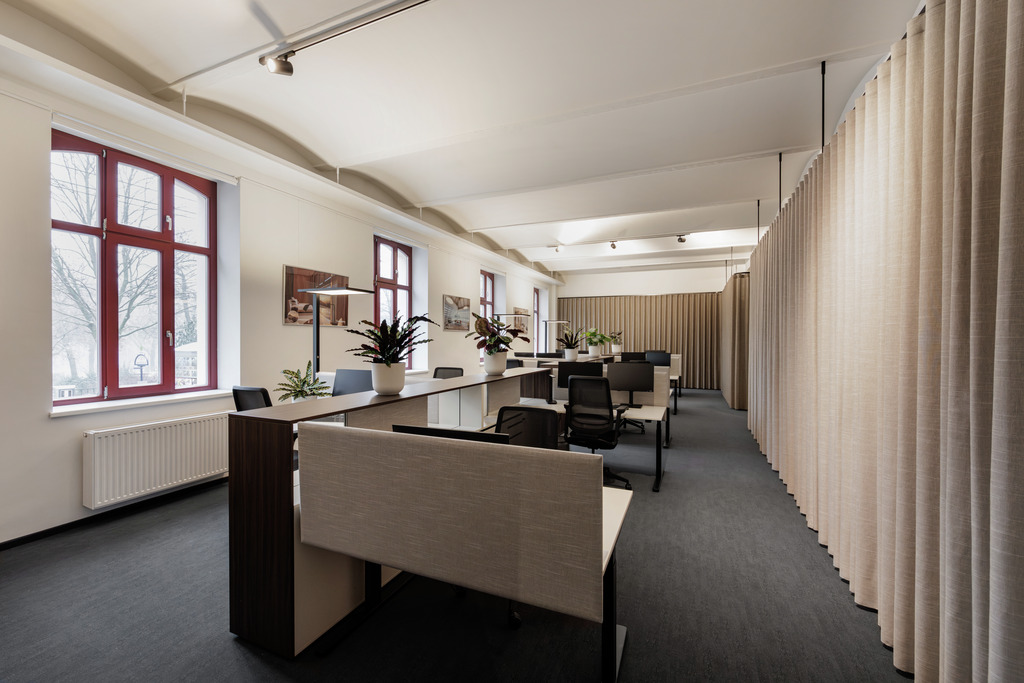

Applications



5%
5%

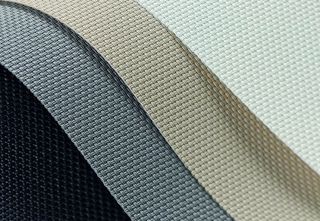

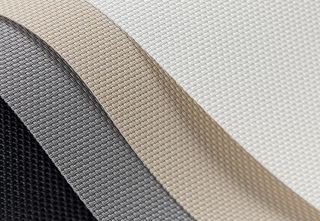

Fabric properties

1% 5% 10%
Semi transparent
30% Polyester, 70% PVC
480 g/m² 410 g/m² 340 g/m²
0.65 mm 0.55 mm 0.50 mm
245 cm
250 cm

Features / Technical properties

5-6
Flame retardant
Optimised for workstations
Various openness factors
Antimicrobial (ASTM - SGS)
Applicable in humid areas
Digital printing
Oeko-Tex, Greenguard
Special colours from 5’000 m
Weldable

Washing instructions

Oeko-Tex Greenguard Fabric tested for increased mould resistance

Optical and solar coefficients (± 5%, DIN EN 410)

Basicscreen 1%
Colour
Colour 3001 Tv(%) 16.8 Ts(%) 20.9 Rs(%) 63.6 As(%) 15.5 Tuv(%) 2.5 Fc() 0.53 gtot() 0.38
Colour 3006 Tv(%) 2.4 Ts(%) 4.3 Rs(%) 20.0 As(%) 75.7 Tuv(%) 1.9 Fc() 0.79 gtot() 0.57
Colour 3007 Tv(%) 2.9 Ts(%) 2.9 Rs(%) 3.3 As(%) 93.8 Tuv(%) 2.9 Fc() 0.90 gtot() 0.65
Colour 3015 Tv(%) 9.0 Ts(%) 14.9 Rs(%) 45.2 As(%) 39.9 Tuv(%) 2.2 Fc() 0.64 gtot() 0.46
Basicscreen 5%
Colour
Colour 3001 Tv(%) 20.3 Ts(%) 24.4 Rs(%) 60.5 As(%) 15.1 Tuv(%) 7.5 Fc() 0.55 gtot() 0.40
Colour 3006 Tv(%) 8.0 Ts(%) 10.1 Rs(%) 20.3 As(%) 69.6 Tuv(%) 7.5 Fc() 0.80 gtot() 0.57
Colour 3007 Tv(%) 7.2 Ts(%) 7.2 Rs(%) 3.4 As(%) 89.4 Tuv(%) 7.2 Fc() 0.90 gtot() 0.65
Colour 3015 Tv(%) 14.4 Ts(%) 20.0 Rs(%) 43.7 As(%) 36.3 Tuv(%) 7.6 Fc() 0.66 gtot() 0.47
Basicscreen 10%
Colour
Colour 3001 Tv(%) 28.3 Ts(%) 32.0 Rs(%) 55.3 As(%) 12.7 Tuv(%) 14.9 Fc() 0.59 gtot() 0.43
Colour 3006 Tv(%) 16.0 Ts(%) 18.3 Rs(%) 18.0 As(%) 63.7 Tuv(%) 15.3 Fc() 0.82 gtot() 0.59
Colour 3007 Tv(%) 16.3 Ts(%) 16.3 Rs(%) 3.1 As(%) 80.6 Tuv(%) 16.2 Fc() 0.91 gtot() 0.66
Colour 3015 Tv(%) 22.4 Ts(%) 27.8 Rs(%) 28.5 As(%) 43.7 Tuv(%) 14.2 Fc() 0.76 gtot() 0.55
Fc + gtot: Value calculated with glass: 0.72 / Ug = 1.6 W/m² K, DIN EN 13363-1

Data Sheet

Downloads

Flame retardant
B-s2,d0 (EN 13501-1)
Type B (BS 5867-2) 10%
Type B (BS 5867-2) 5%
Type B (BS 5867-2) 1%
On request:
NFPA 701
Class 1 (UNI 9176/77)
Certificates
Oeko-Tex
On request:
Greenguard
ASTM
