Colorama 1

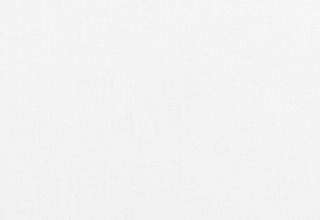

400
401

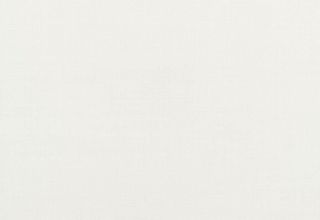

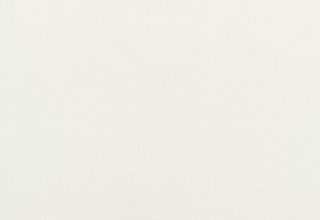

402

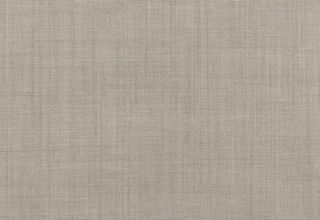

407

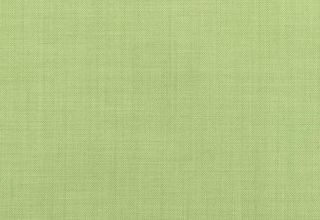

408

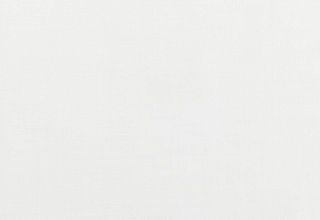

409
410

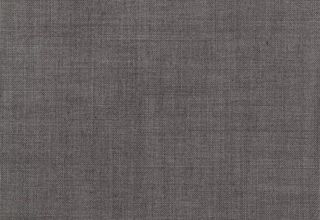

411
413

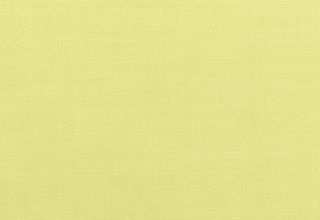

415

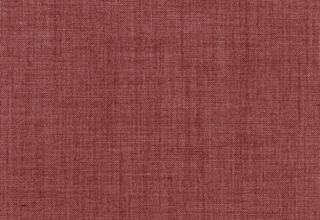

420
422

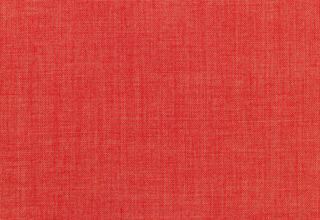

423
427

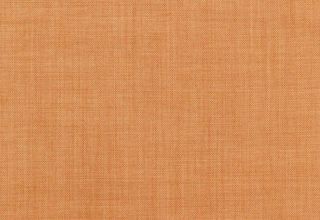

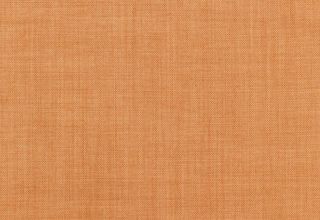

428
429

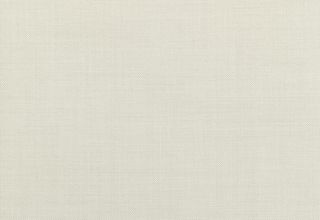

440

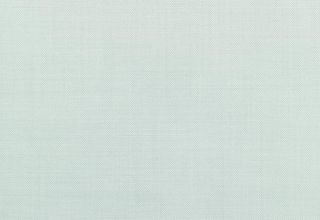

441

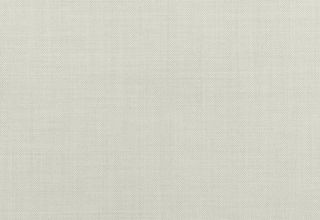

442
443

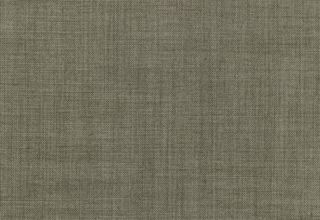

445

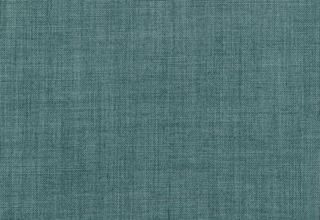

446

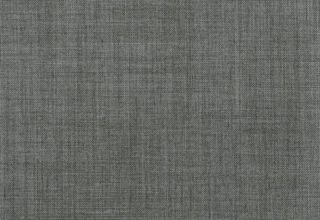

447
450

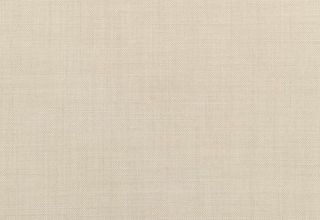

463

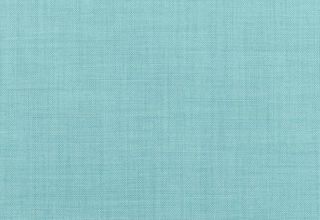

469
476

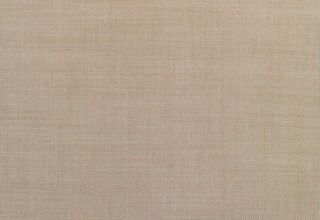

477

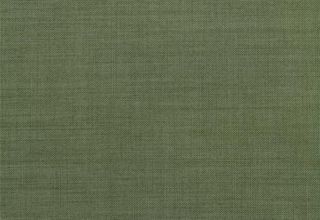

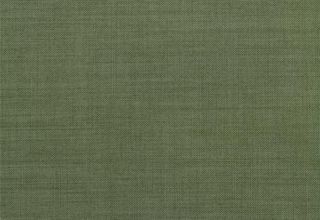

478
479

Applications

Fabric properties

Transparent
Polyester Trevira CS
135 g/m²
0.33 mm
335 cm
340 cm
138 cm, 202 cm, 340 cm (400, 401, 402, 410, 427, 429, 440, 442, 447)

Features / Technical properties

5-7
Alpha-w = 0.10 / 0.15
Flame retardant
Applicable in humid areas
Suitable for Wave
Digital printing
Oeko-Tex, Cradle to Cradle
Special colours from 520 m

Washing instructions

-1%
-1.5%
-2%
-0.5%
-1%
Oeko-TexCradle to CradleIMO

Optical and solar coefficients (± 5%, DIN EN 410)

Colour

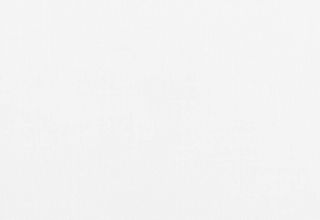

Colour 400Tv(%) 49.8 Ts(%) 50.2 Rs(%) 43.3 As(%) 6.5 Tuv(%) 41.2 Fc() 0.68 gtot() 0.49

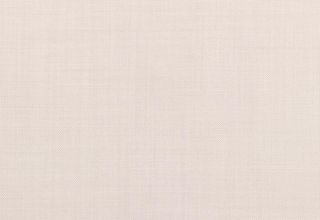

Colour 401Tv(%) 40.5 Ts(%) 42.8 Rs(%) 44.7 As(%) 12.5 Tuv(%) 30.8 Fc() 0.67 gtot() 0.48
Colour 402Tv(%) 47.4 Ts(%) 48.1 Rs(%) 43.5 As(%) 8.4 Tuv(%) 37.5 Fc() 0.68 gtot() 0.49
Colour 407Tv(%) 29.6 Ts(%) 39.0 Rs(%) 34.7 As(%) 26.3 Tuv(%) 26.9 Fc() 0.73 gtot() 0.52

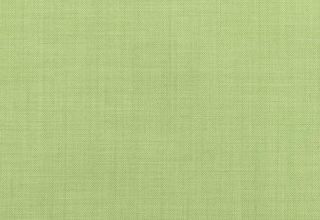

Colour 408Tv(%) 36.7 Ts(%) 41.2 Rs(%) 37.2 As(%) 21.6 Tuv(%) 27.8 Fc() 0.71 gtot() 0.51

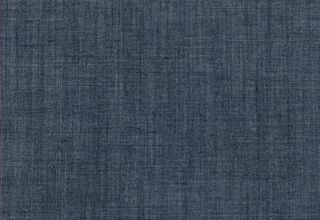

Colour 409Tv(%) 14.4 Ts(%) 32.0 Rs(%) 22.8 As(%) 45.2 Tuv(%) 18.6 Fc() 0.80 gtot() 0.58
Colour 410Tv(%) 55.3 Ts(%) 55.1 Rs(%) 42.4 As(%) 2.5 Tuv(%) 47.4 Fc() 0.69 gtot() 0.50
Colour 411Tv(%) 24.9 Ts(%) 40.4 Rs(%) 23.8 As(%) 35.8 Tuv(%) 28.3 Fc() 0.80 gtot() 0.58
Colour 413Tv(%) 29.2 Ts(%) 40.2 Rs(%) 32.4 As(%) 27.4 Tuv(%) 27.9 Fc() 0.74 gtot() 0.54

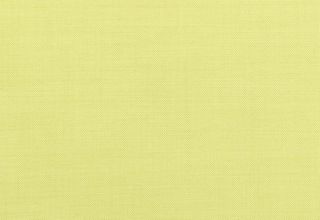

Colour 415Tv(%) 43.9 Ts(%) 44.4 Rs(%) 41.8 As(%) 13.8 Tuv(%) 30.3 Fc() 0.69 gtot() 0.55

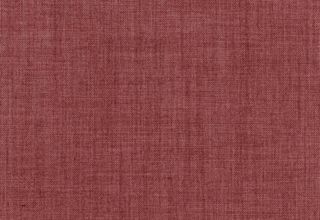

Colour 420Tv(%) 21.8 Ts(%) 38.7 Rs(%) 25.2 As(%) 36.1 Tuv(%) 25.2 Fc() 0.79 gtot() 0.57

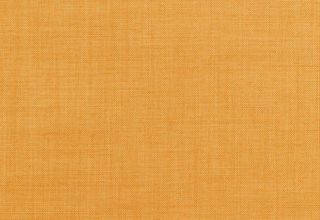

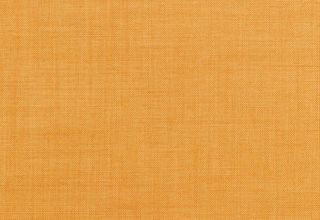

Colour 422Tv(%) 34.8 Ts(%) 42.1 Rs(%) 34.2 As(%) 23.7 Tuv(%) 25.9 Fc() 0.73 gtot() 0.53

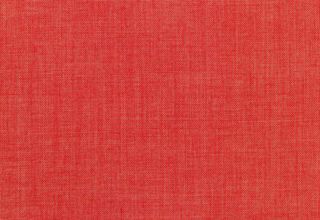

Colour 423Tv(%) 23.1 Ts(%) 38.7 Rs(%) 29.5 As(%) 31.8 Tuv(%) 24.2 Fc() 0.76 gtot() 0.55

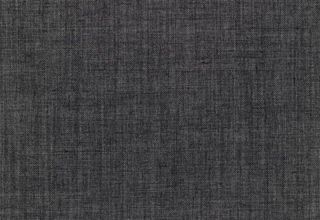

Colour 427Tv(%) 13.0 Ts(%) 32.7 Rs(%) 24.8 As(%) 42.5 Tuv(%) 15.8 Fc() 0.79 gtot() 0.57
Colour 428Tv(%) 28.3 Ts(%) 38.7 Rs(%) 33.2 As(%) 28.1 Tuv(%) 22.7 Fc() 0.74 gtot() 0.53
Colour 429Tv(%) 31.6 Ts(%) 40.7 Rs(%) 36.3 As(%) 23.0 Tuv(%) 28.9 Fc() 0.72 gtot() 0.52

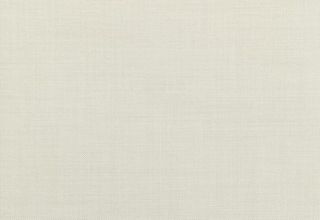

Colour 440Tv(%) 44.3 Ts(%) 47.3 Rs(%) 40.9 As(%) 11.8 Tuv(%) 36.1 Fc() 0.70 gtot() 0.50

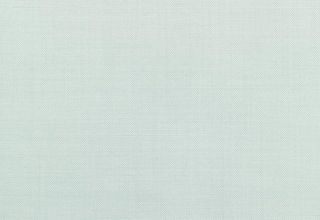

Colour 441Tv(%) 42.8 Ts(%) 45.6 Rs(%) 43.9 As(%) 10.5 Tuv(%) 34.9 Fc() 0.68 gtot() 0.49
Colour 442Tv(%) 36.1 Ts(%) 41.7 Rs(%) 40.3 As(%) 18.0 Tuv(%) 29.2 Fc() 0.70 gtot() 0.50

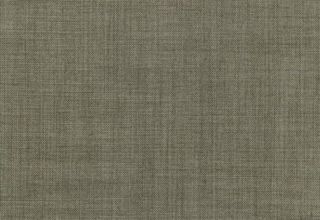

Colour 443Tv(%) 23.9 Ts(%) 38.2 Rs(%) 25.0 As(%) 36.8 Tuv(%) 25.4 Fc() 0.79 gtot() 0.57

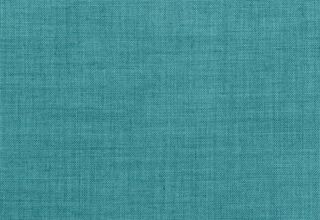

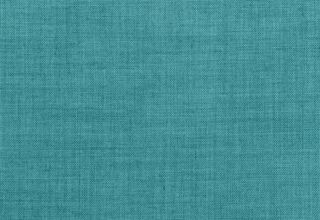

Colour 445Tv(%) 21.8 Ts(%) 35.0 Rs(%) 32.4 As(%) 32.6 Tuv(%) 22.7 Fc() 0.74 gtot() 0.53

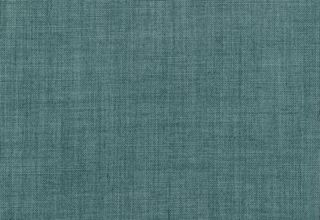

Colour 446Tv(%) 22.0 Ts(%) 37.8 Rs(%) 27.3 As(%) 34.9 Tuv(%) 22.3 Fc() 0.77 gtot() 0.56
Colour 447Tv(%) 26.9 Ts(%) 38.2 Rs(%) 34.1 As(%) 27.7 Tuv(%) 26.2 Fc() 0.73 gtot() 0.53

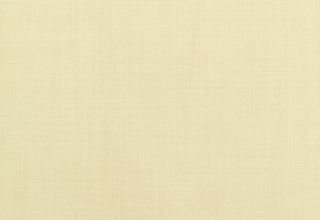

Colour 450Tv(%) 45.7 Ts(%) 46.0 Rs(%) 43.0 As(%) 11.0 Tuv(%) 22.8 Fc() 0.68 gtot() 0.49
Colour 463Tv(%) 37.3 Ts(%) 42.4 Rs(%) 39.6 As(%) 18.0 Tuv(%) 29.8 Fc() 0.70 gtot() 0.50
Colour 469Tv(%) 30.9 Ts(%) 39.9 Rs(%) 37.6 As(%) 22.5 Tuv(%) 28.2 Fc() 0.71 gtot() 0.51

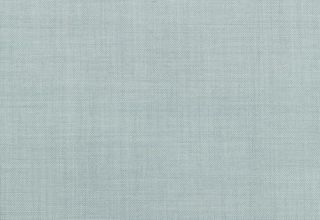

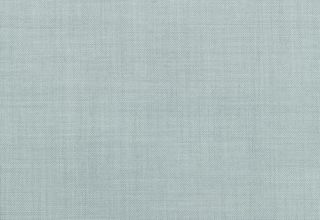

Colour 476Tv(%) 32.6 Ts(%) 40.3 Rs(%) 37.9 As(%) 21.8 Tuv(%) 29.0 Fc() 0.71 gtot() 0.51
Colour 477Tv(%) 34.5 Ts(%) 42.3 Rs(%) 34.6 As(%) 23.1 Tuv(%) 28.7 Fc() 0.73 gtot() 0.53
Colour 478Tv(%) 25.7 Ts(%) 37.6 Rs(%) 27.6 As(%) 34.8 Tuv(%) 23.7 Fc() 0.77 gtot() 0.56

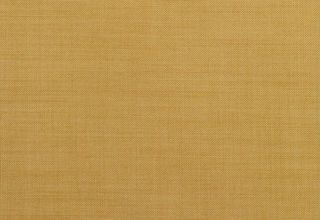

Colour 479Tv(%) 31.7 Ts(%) 38.3 Rs(%) 37.8 As(%) 23.9 Tuv(%) 16.9 Fc() 0.71 gtot() 0.51
Fc + gtot: Value calculated with glass: 0.72 / Ug = 1.6 W/m² K, DIN EN 13363-1

Classification of solar shading devices (DIN EN 14501:2021)

Colour Glare control Privacy at night Sight contact with the outside Daylight utilisation
Colour 400Glare control 0 Privacy at night 0 Sight contact with the outside 2 Daylight utilisation 4
Colour 401Glare control 0 Privacy at night 0 Sight contact with the outside 2 Daylight utilisation 3
Colour 402Glare control 0 Privacy at night 0 Sight contact with the outside 2 Daylight utilisation 3
Colour 407Glare control 0 Privacy at night 0 Sight contact with the outside 2 Daylight utilisation 3
Colour 408Glare control 0 Privacy at night 0 Sight contact with the outside 2 Daylight utilisation 3
Colour 409Glare control 0 Privacy at night 0 Sight contact with the outside 4 Daylight utilisation 2
Colour 410Glare control 0 Privacy at night 0 Sight contact with the outside 2 Daylight utilisation 4
Colour 411Glare control 0 Privacy at night 0 Sight contact with the outside 3 Daylight utilisation 2
Colour 413Glare control 0 Privacy at night 0 Sight contact with the outside 2 Daylight utilisation 3
Colour 415Glare control 0 Privacy at night 0 Sight contact with the outside 2 Daylight utilisation 3
Colour 420Glare control 0 Privacy at night 0 Sight contact with the outside 4 Daylight utilisation 2
Colour 422Glare control 0 Privacy at night 0 Sight contact with the outside 2 Daylight utilisation 3
Colour 423Glare control 0 Privacy at night 0 Sight contact with the outside 3 Daylight utilisation 2
Colour 427Glare control 0 Privacy at night 0 Sight contact with the outside 4 Daylight utilisation 2
Colour 428Glare control 0 Privacy at night 0 Sight contact with the outside 3 Daylight utilisation 3
Colour 429Glare control 0 Privacy at night 0 Sight contact with the outside 2 Daylight utilisation 3
Colour 440Glare control 0 Privacy at night 0 Sight contact with the outside 2 Daylight utilisation 3
Colour 441Glare control 0 Privacy at night 0 Sight contact with the outside 2 Daylight utilisation 3
Colour 442Glare control 0 Privacy at night 0 Sight contact with the outside 2 Daylight utilisation 3
Colour 443Glare control 0 Privacy at night 0 Sight contact with the outside 3 Daylight utilisation 2
Colour 445Glare control 0 Privacy at night 0 Sight contact with the outside 3 Daylight utilisation 2
Colour 446Glare control 0 Privacy at night 0 Sight contact with the outside 3 Daylight utilisation 2
Colour 447Glare control 0 Privacy at night 0 Sight contact with the outside 3 Daylight utilisation 3
Colour 450Glare control 0 Privacy at night 0 Sight contact with the outside 2 Daylight utilisation 4
Colour 463Glare control 0 Privacy at night 0 Sight contact with the outside 2 Daylight utilisation 3
Colour 469Glare control 0 Privacy at night 0 Sight contact with the outside 2 Daylight utilisation 3
Colour 476Glare control 0 Privacy at night 0 Sight contact with the outside 2 Daylight utilisation 3
Colour 477Glare control 0 Privacy at night 0 Sight contact with the outside 2 Daylight utilisation 3
Colour 478Glare control 0 Privacy at night 0 Sight contact with the outside 3 Daylight utilisation 3
Colour 479Glare control 0 Privacy at night 0 Sight contact with the outside 2 Daylight utilisation 3
0: No effect, 1: Low effect, 2: Medium effect, 3: High effect, 4: Very high effect

Data Sheet

Downloads

Flame retardant
B-s1,d0, Class 1, B1, M1, Type C, NFPA 701
CAN/ULC-S109
On request:
IMO
Proven acoustic properties
Wave, 20 cm
Flat, 15 cm
Certificates
Oeko-Tex
Cradle to Cradle

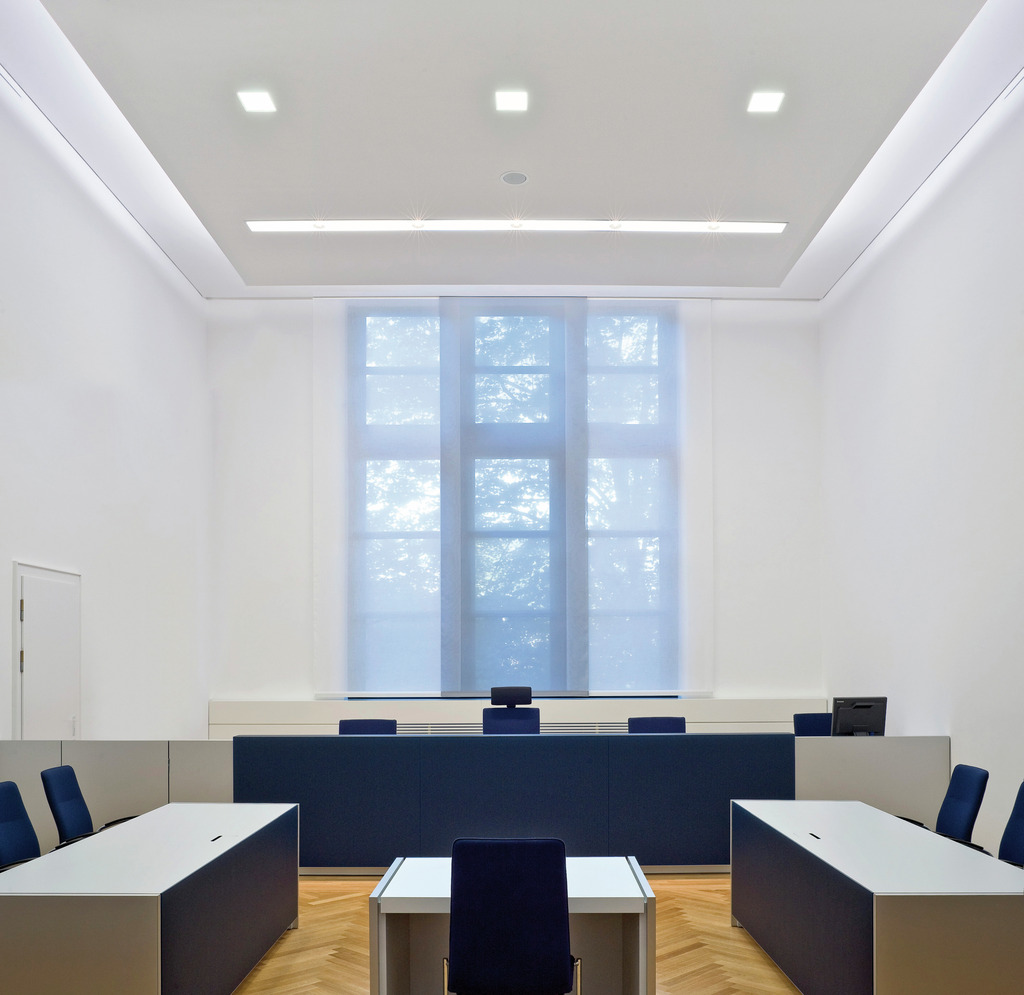

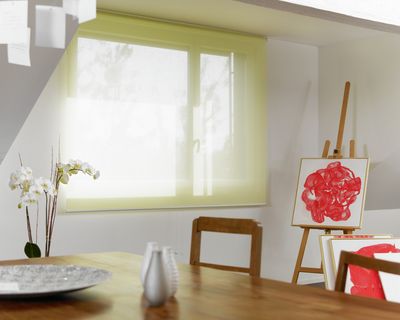

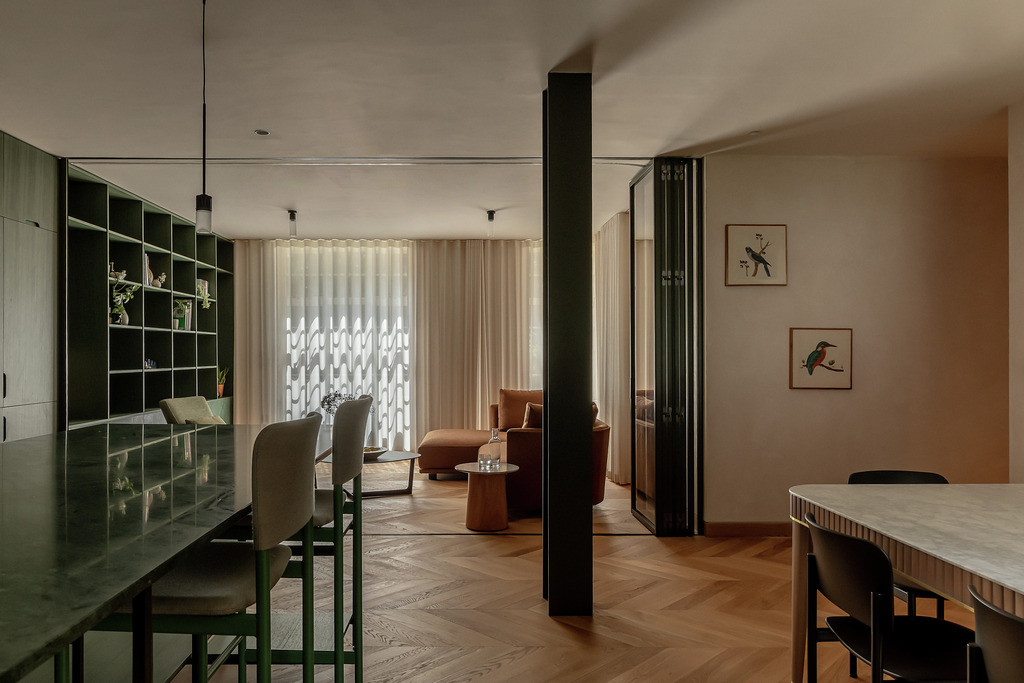

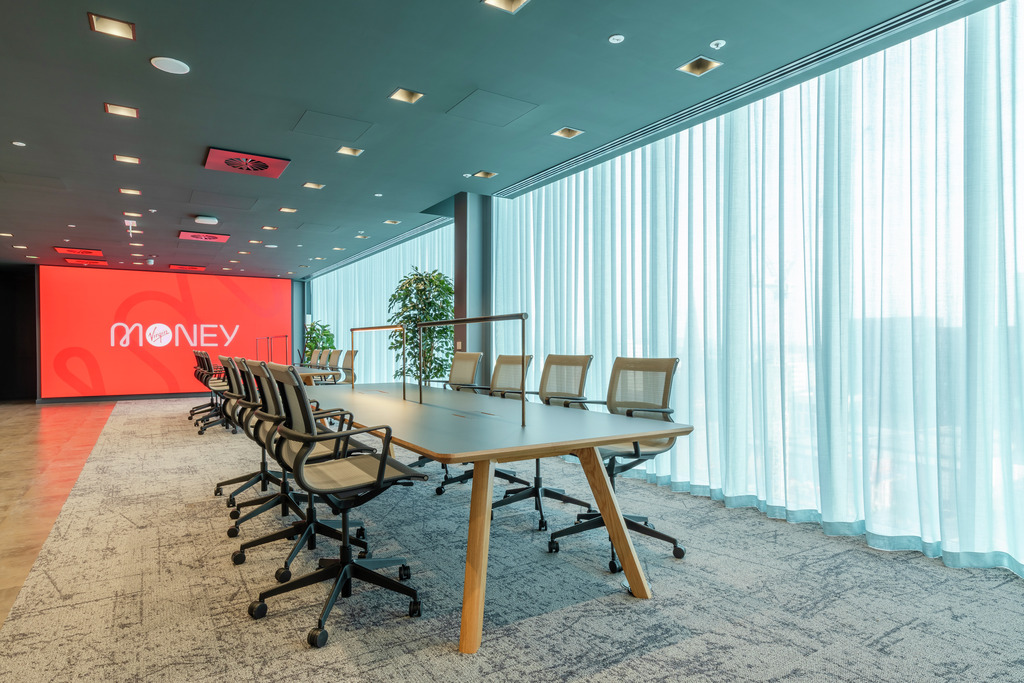

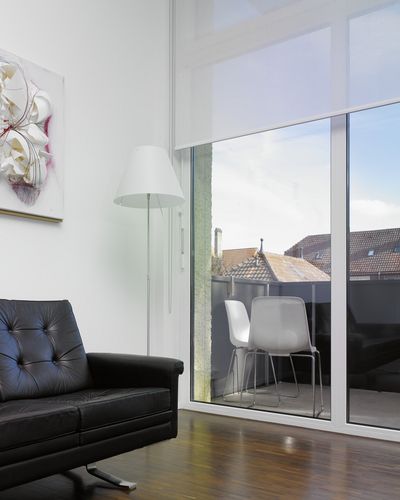

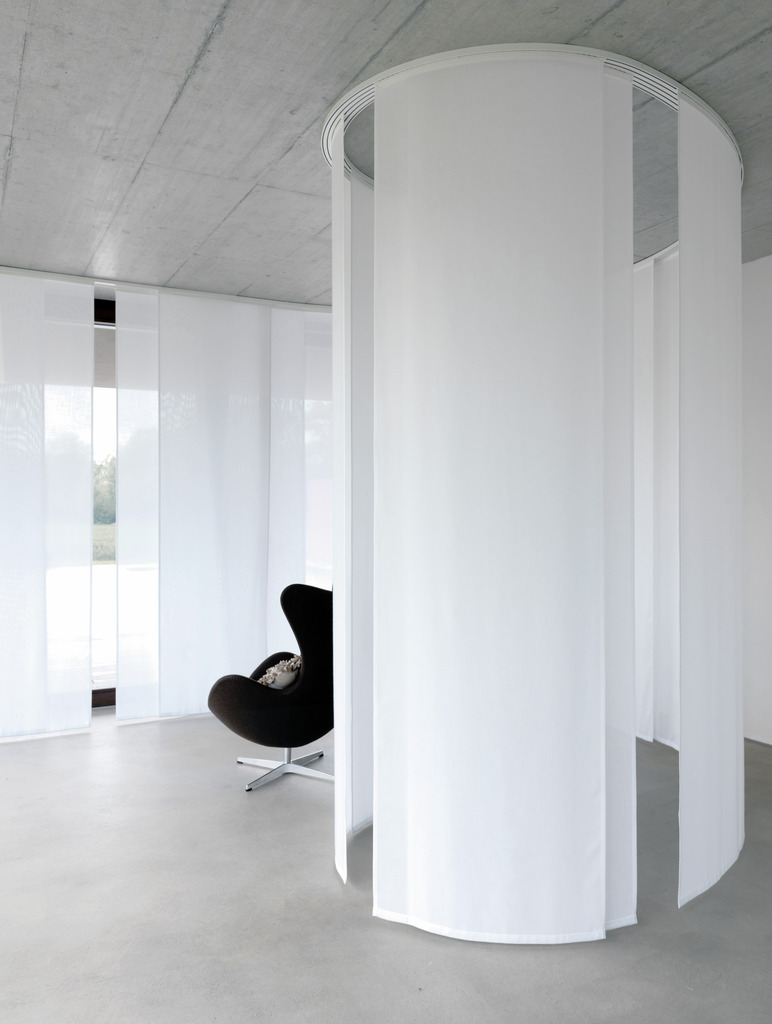

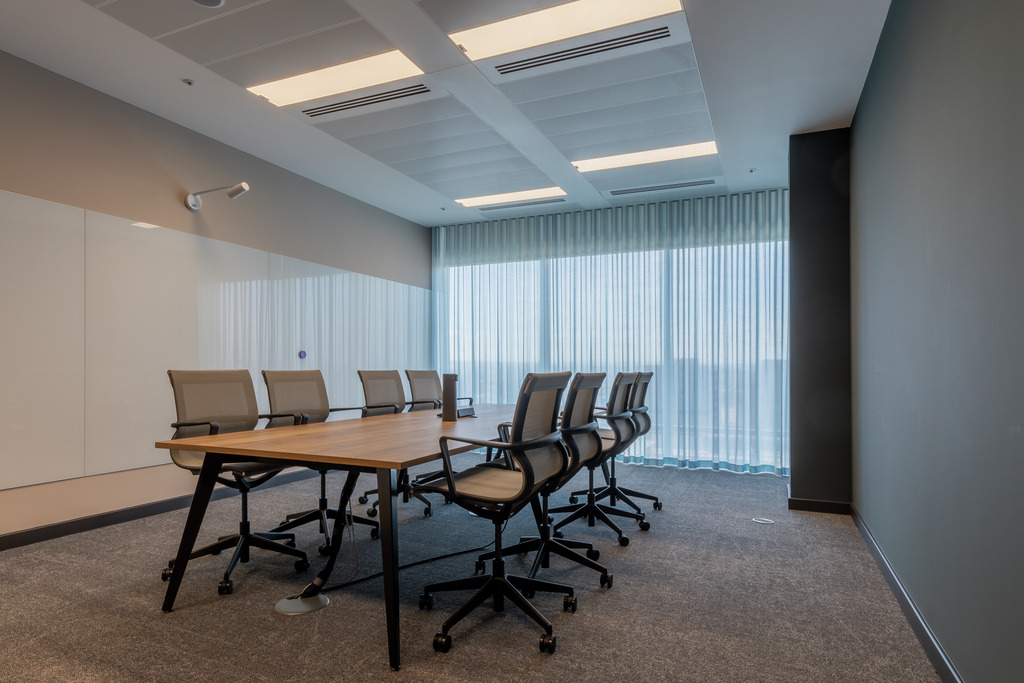

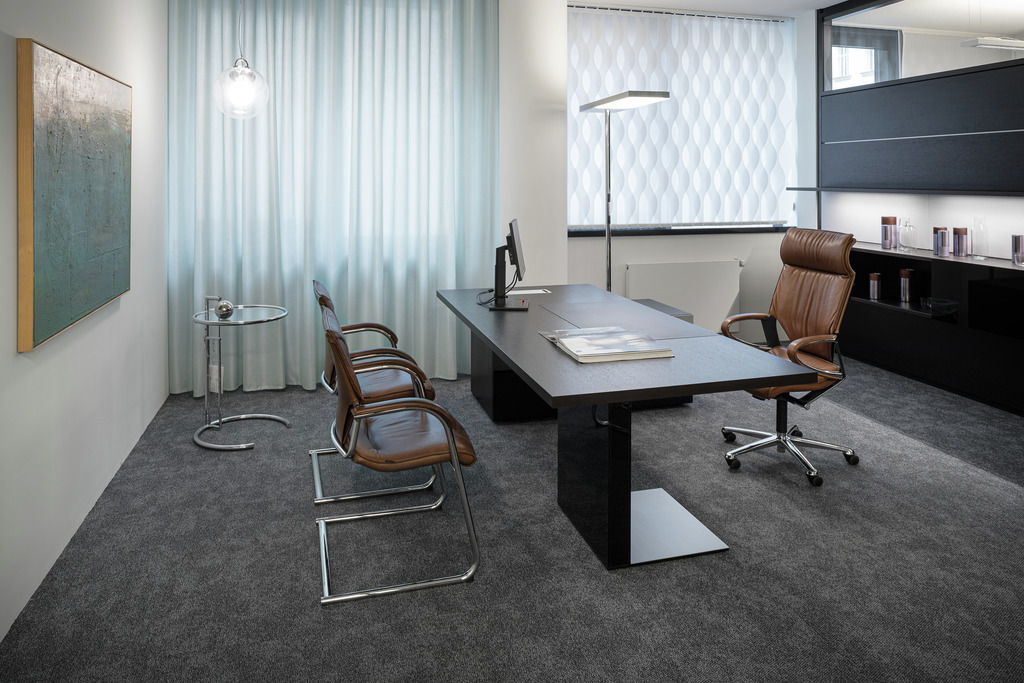

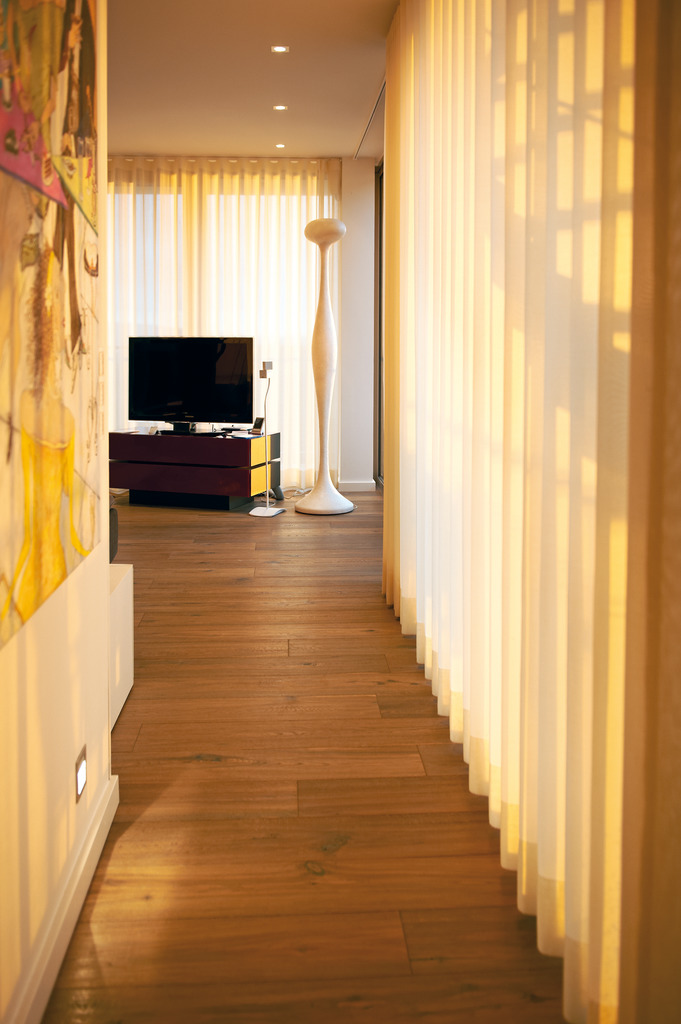

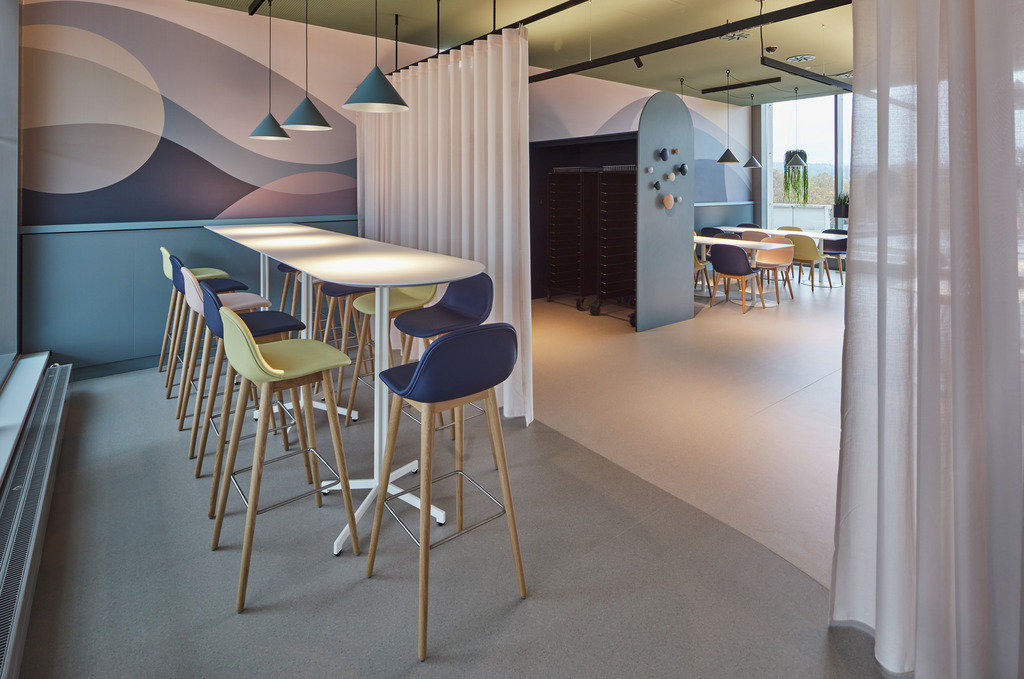

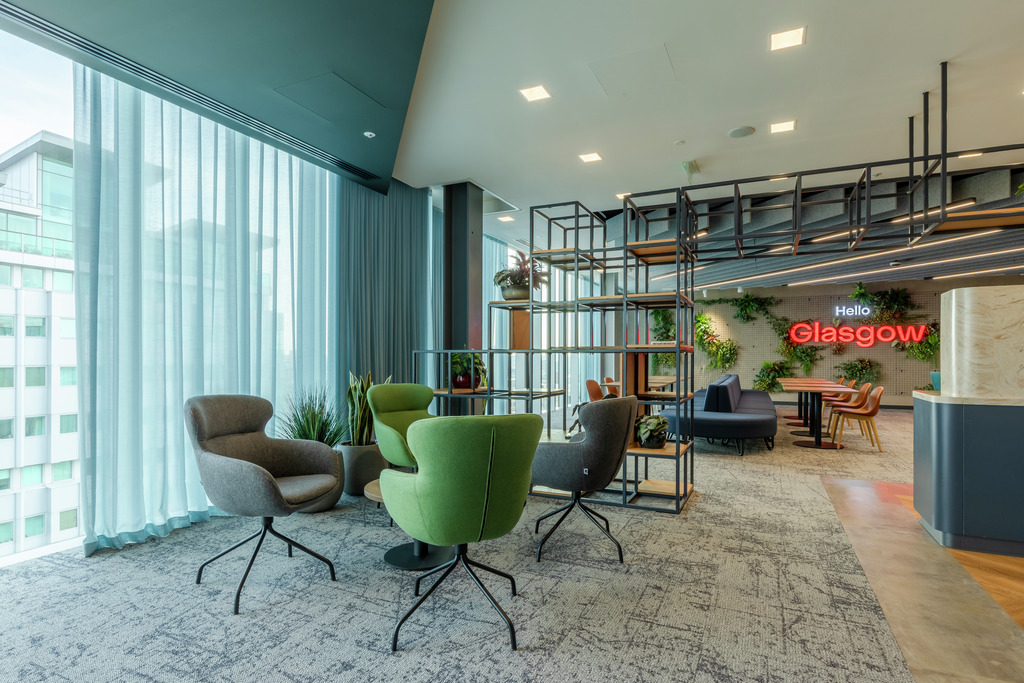

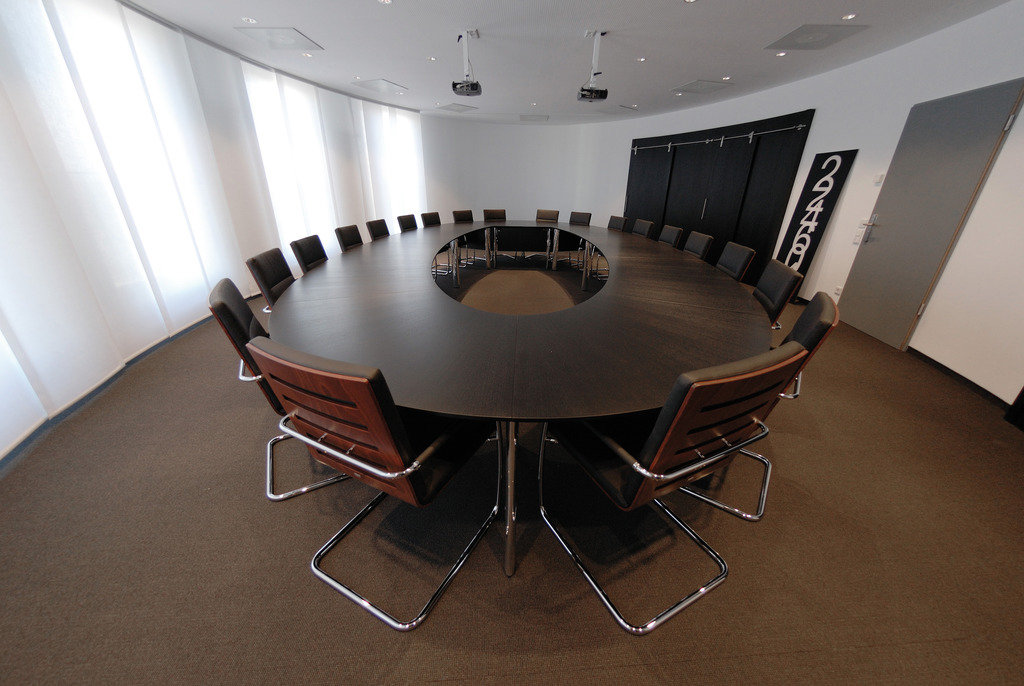

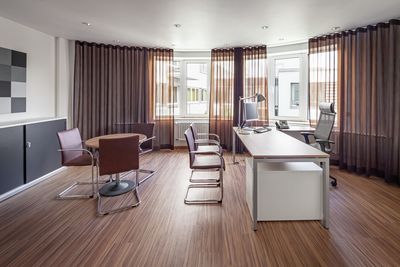

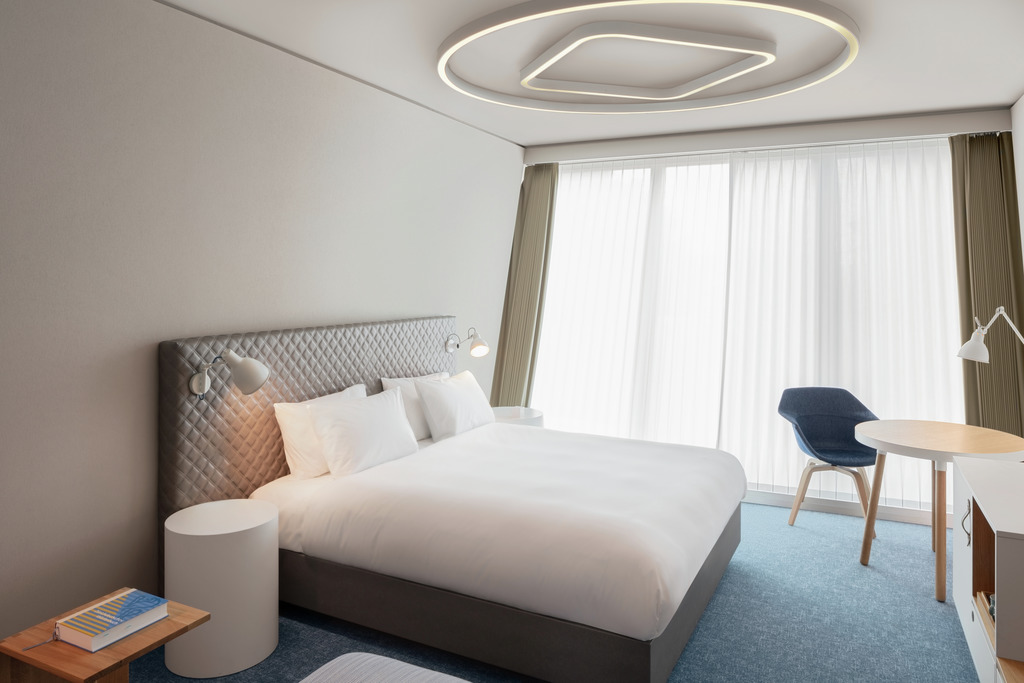

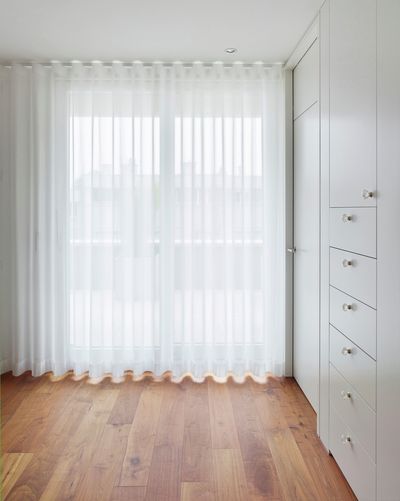

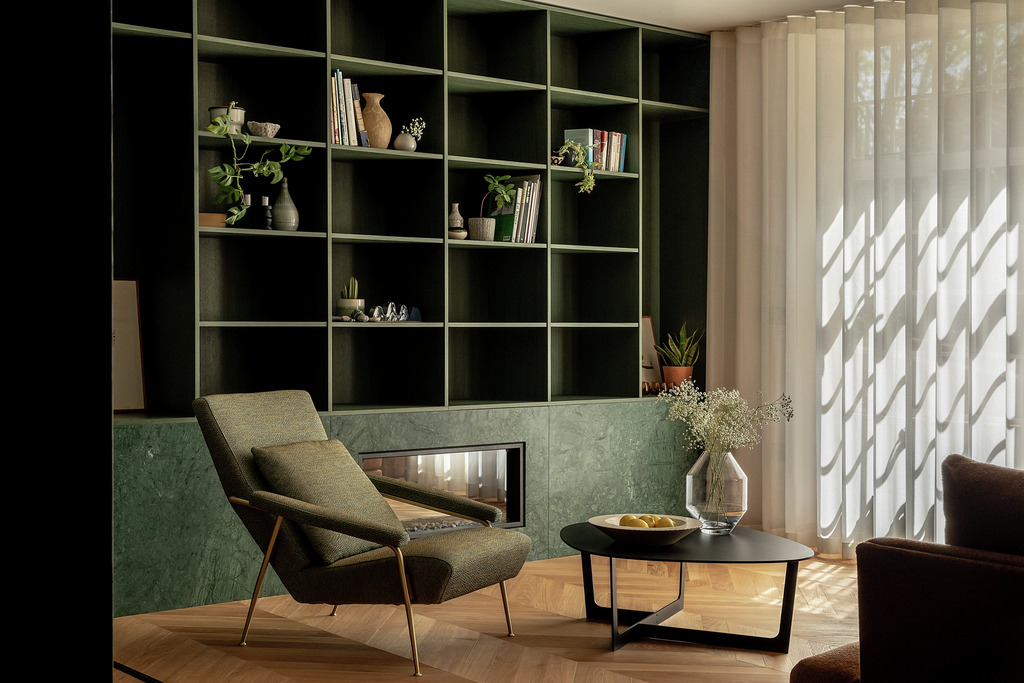

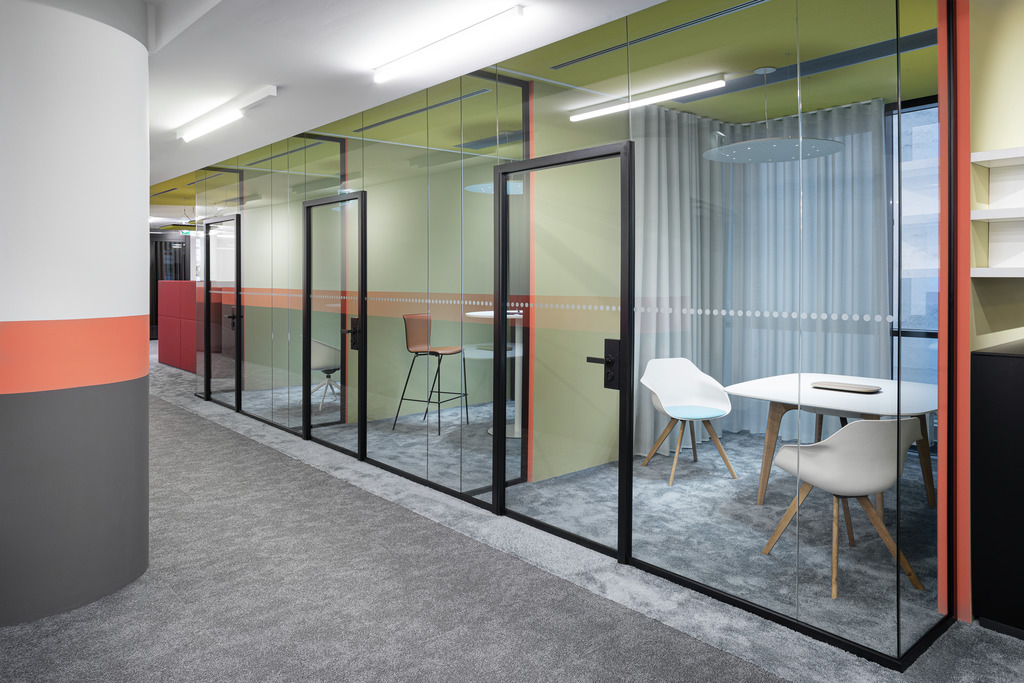

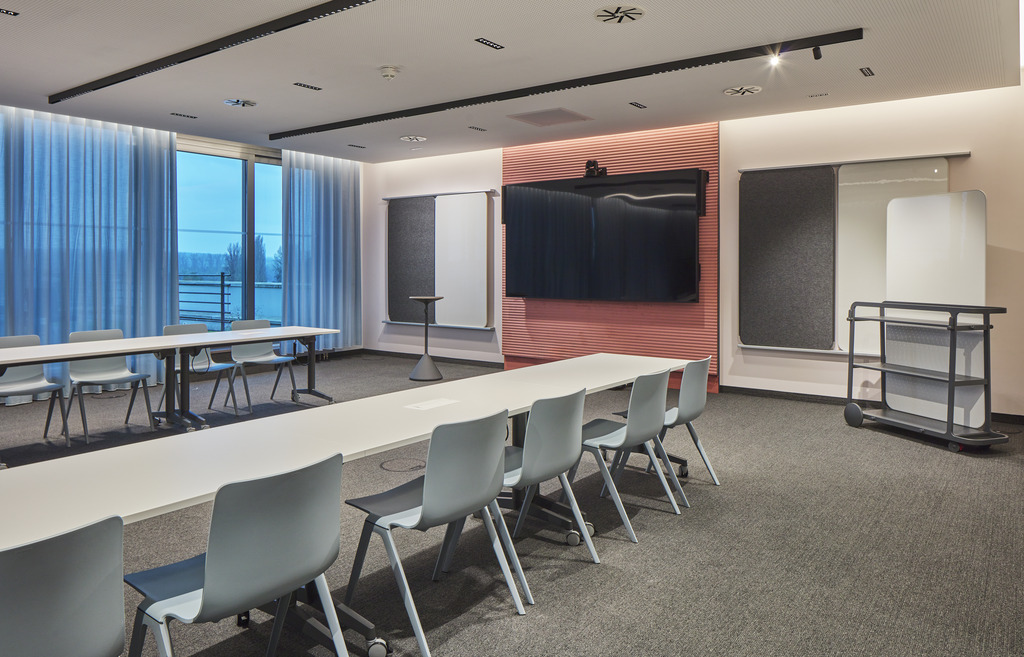

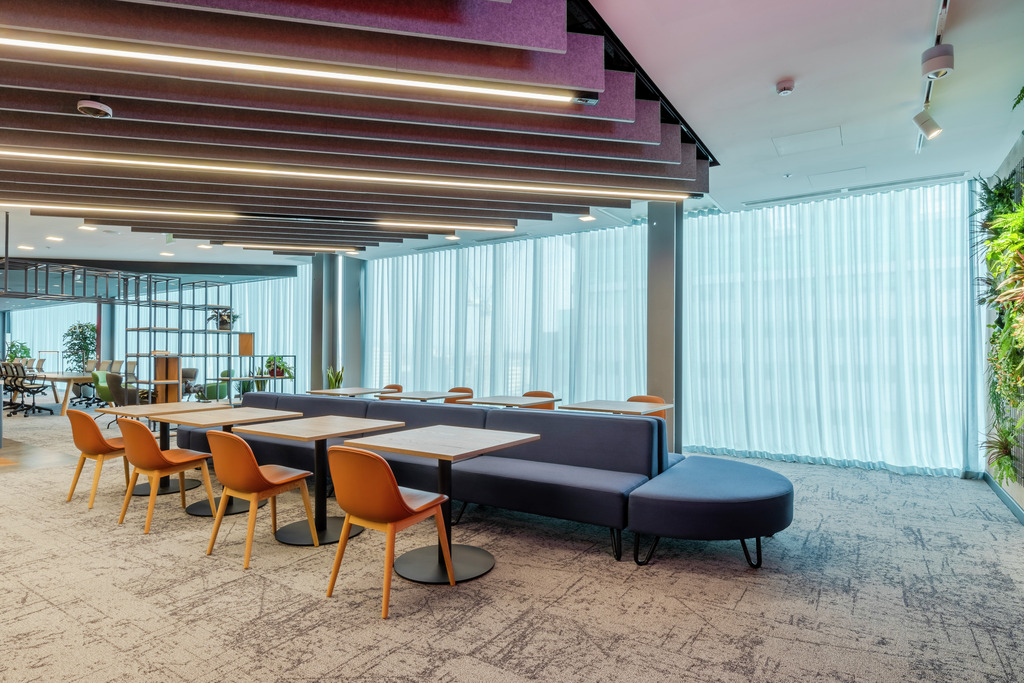

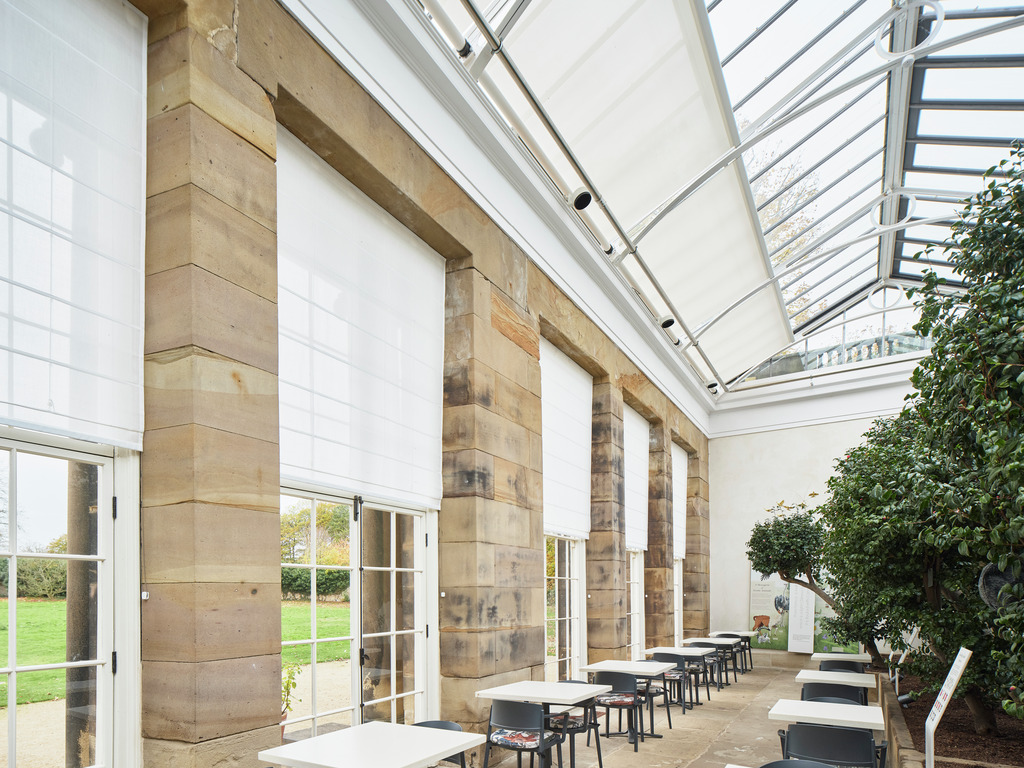

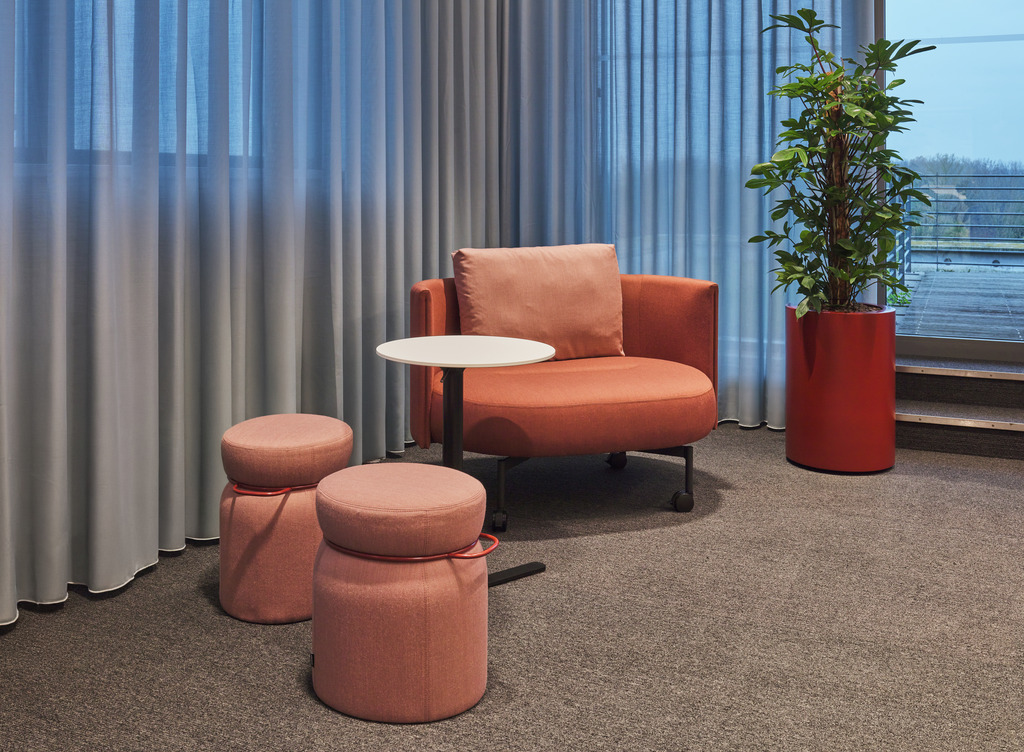

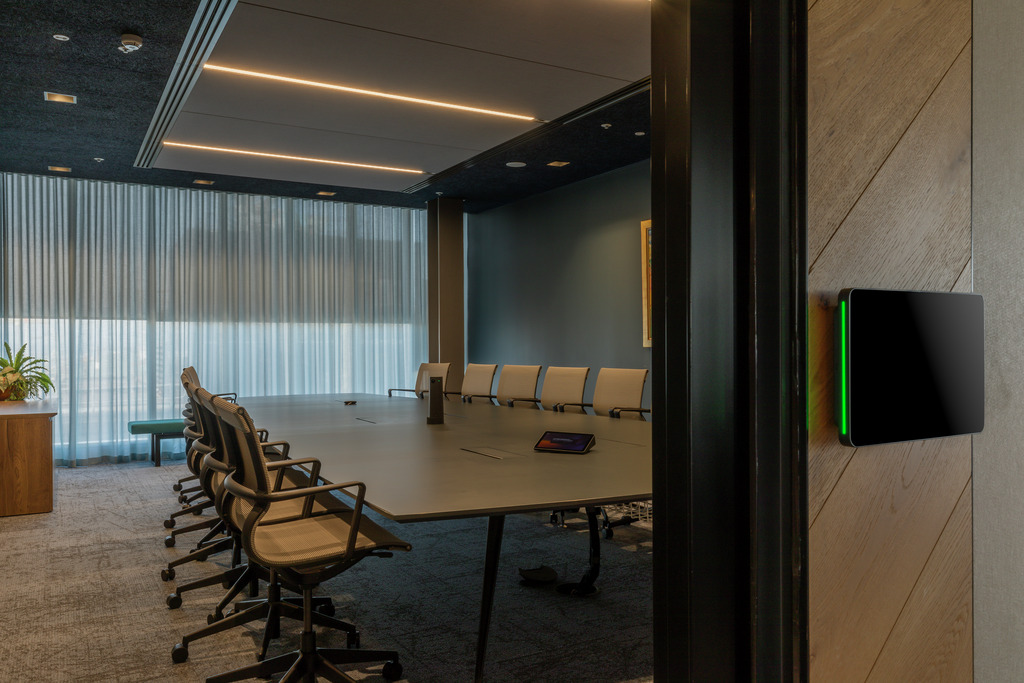

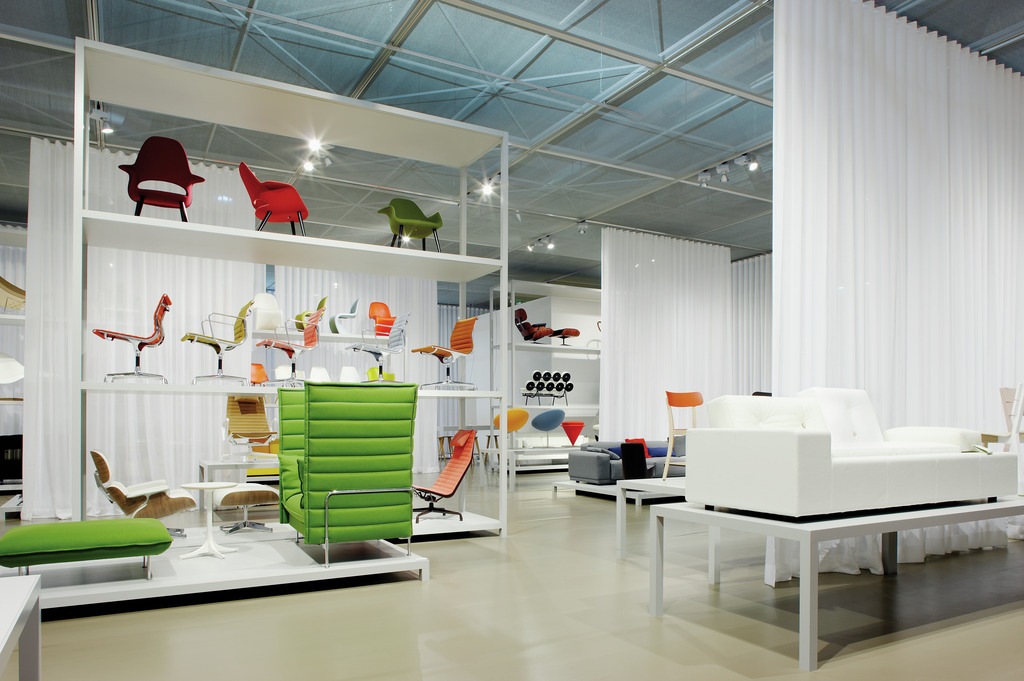

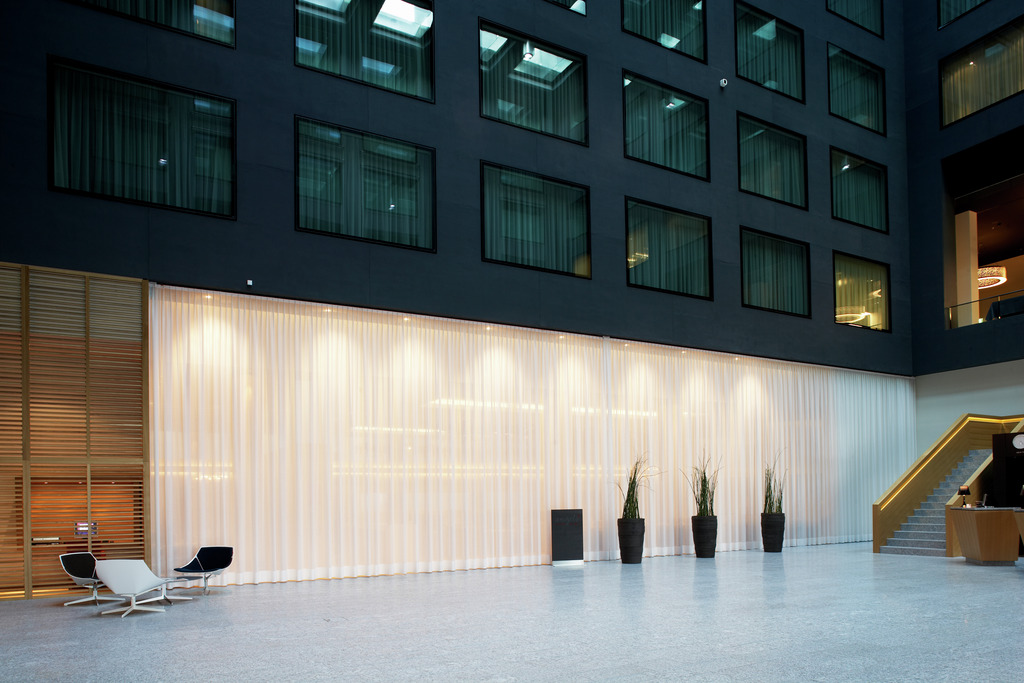

Inspiration
