Fabric properties
Transparent
Polyester Trevira CS
130 g/m²
0.45 mm
325 cm
330 cm
330 cm
Features / Technical properties
6
Flame retardant
Applicable in humid areas
Fabric must be turned
Fabric must be turned
Oeko-Tex, Cradle to Cradle
Washing instructions
-1%
-2%
-2.5%
-0.5%
-1%
-0.5%
Optical and solar coefficients (± 5%, DIN EN 410)
| Colour | |||||||
|---|---|---|---|---|---|---|---|

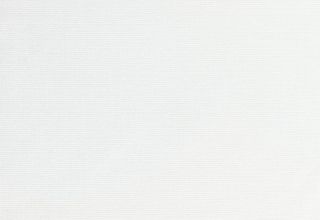

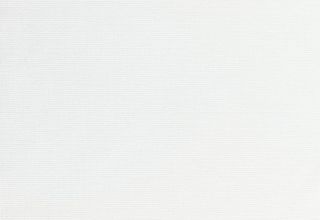

| Colour 111 | Tv(%) 36.1 | Ts(%) 37.0 | Rs(%) 52.9 | As(%) 10.1 | Tuv(%) 26.0 | Fc() 0.61 | gtot() 0.44 |

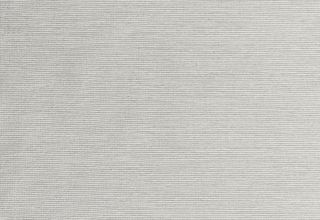

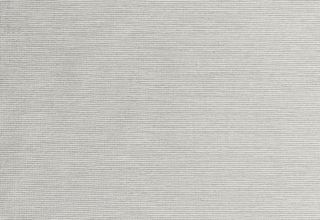

| Colour 131 | Tv(%) 33.4 | Ts(%) 34.9 | Rs(%) 43.8 | As(%) 21.3 | Tuv(%) 25.9 | Fc() 0.67 | gtot() 0.48 |

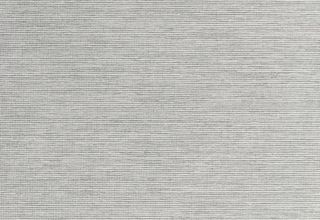

| Colour 161 | Tv(%) 29.3 | Ts(%) 30.6 | Rs(%) 38.2 | As(%) 31.2 | Tuv(%) 23.2 | Fc() 0.70 | gtot() 0.50 |

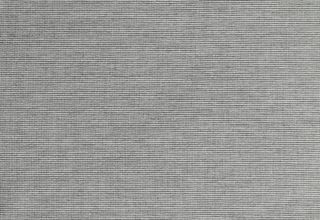

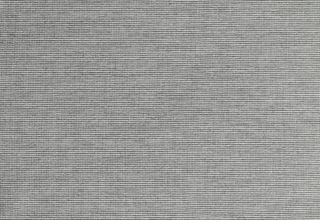

| Colour 181 | Tv(%) 29.5 | Ts(%) 29.6 | Rs(%) 28.3 | As(%) 42.1 | Tuv(%) 20.4 | Fc() 0.76 | gtot() 0.55 |

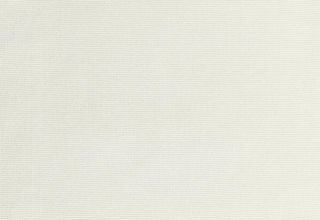

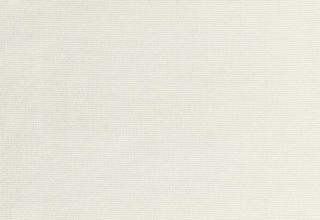

| Colour 211 | Tv(%) 42.8 | Ts(%) 43.2 | Rs(%) 48.7 | As(%) 8.1 | Tuv(%) 24.4 | Fc() 0.64 | gtot() 0.46 |

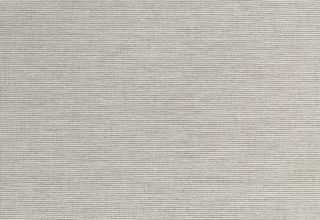

| Colour 261 | Tv(%) 29.6 | Ts(%) 30.7 | Rs(%) 36.3 | As(%) 33.0 | Tuv(%) 22.9 | Fc() 0.71 | gtot() 0.51 |

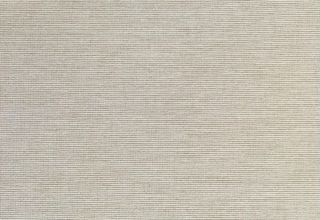

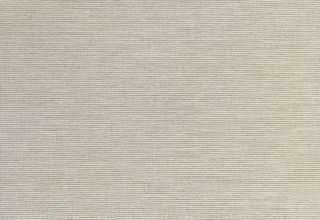

| Colour 431 | Tv(%) 28.4 | Ts(%) 32.7 | Rs(%) 42.3 | As(%) 25.0 | Tuv(%) 21.9 | Fc() 0.68 | gtot() 0.49 |

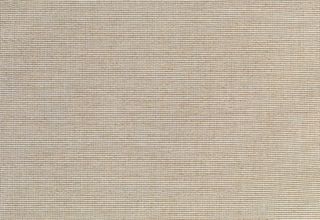

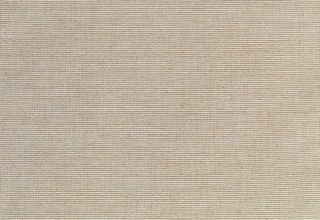

| Colour 461 | Tv(%) 29.4 | Ts(%) 33.9 | Rs(%) 39.9 | As(%) 26.2 | Tuv(%) 23.1 | Fc() 0.69 | gtot() 0.50 |
Fc + gtot: Value calculated with glass: 0.72 / Ug = 1.6 W/m² K, DIN EN 13363-1
Classification of solar shading devices (DIN EN 14501:2021)
| Colour | Glare control | Privacy at night | Sight contact with the outside | Daylight utilisation |
|---|---|---|---|---|
| Colour 111 | Glare control 0 | Privacy at night 1 | Sight contact with the outside 1 | Daylight utilisation 3 |
| Colour 131 | Glare control 0 | Privacy at night 0 | Sight contact with the outside 2 | Daylight utilisation 3 |
| Colour 161 | Glare control 0 | Privacy at night 0 | Sight contact with the outside 2 | Daylight utilisation 3 |
| Colour 181 | Glare control 0 | Privacy at night 0 | Sight contact with the outside 2 | Daylight utilisation 3 |
| Colour 211 | Glare control 0 | Privacy at night 0 | Sight contact with the outside 2 | Daylight utilisation 3 |
| Colour 261 | Glare control 0 | Privacy at night 1 | Sight contact with the outside 1 | Daylight utilisation 3 |
| Colour 431 | Glare control 0 | Privacy at night 0 | Sight contact with the outside 2 | Daylight utilisation 3 |
| Colour 461 | Glare control 0 | Privacy at night 0 | Sight contact with the outside 2 | Daylight utilisation 3 |
0: No effect, 1: Low effect, 2: Medium effect, 3: High effect, 4: Very high effect
Downloads
Flame retardant
On request:
IMO
Proven acoustic properties
Certificates
