Fabric properties
Semi transparent
Polyester Trevira CS eco
250 g/m²
0.52 mm
335 cm
340 cm
340 cm
Features / Technical properties
5-7
Flame retardant
Applicable in humid areas
Suitable for Wave
Digital printing
Oeko-Tex, Cradle to Cradle, Trevira CS eco
Special colours from 240 m
Washing instructions
-1%
-1.5%
-2%
-0.5%
-1%
Optical and solar coefficients (± 5%, DIN EN 410)
| Colour | |||||||
|---|---|---|---|---|---|---|---|

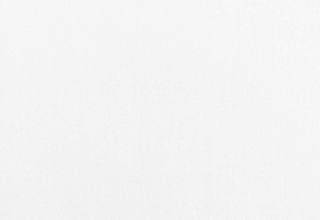

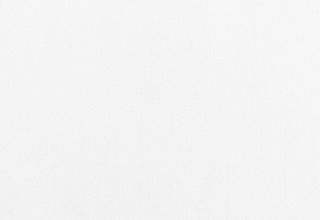

| Colour 400 | Tv(%) 30.7 | Ts(%) 31.3 | Rs(%) 63.0 | As(%) 5.7 | Tuv(%) 21.2 | Fc() 0.54 | gtot() 0.39 |

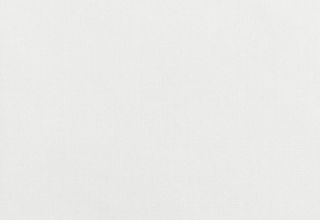

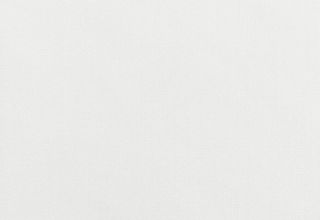

| Colour 410 | Tv(%) 38.2 | Ts(%) 37.3 | Rs(%) 58.9 | As(%) 3.8 | Tuv(%) 28.7 | Fc() 0.57 | gtot() 0.41 |

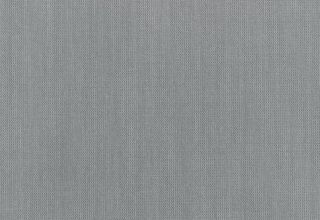

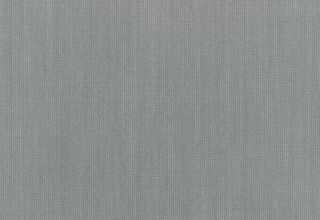

| Colour 429 | Tv(%) 13.7 | Ts(%) 26.3 | Rs(%) 45.2 | As(%) 28.5 | Tuv(%) 11.7 | Fc() 0.65 | gtot() 0.47 |
Fc + gtot: Value calculated with glass: 0.72 / Ug = 1.6 W/m² K, DIN EN 13363-1
Classification of solar shading devices (DIN EN 14501:2021)
| Colour | Glare control | Privacy at night | Sight contact with the outside | Daylight utilisation |
|---|---|---|---|---|
| Colour 400 | Glare control 0 | Privacy at night 2 | Sight contact with the outside 0 | Daylight utilisation 3 |
| Colour 410 | Glare control 0 | Privacy at night 2 | Sight contact with the outside 0 | Daylight utilisation 3 |
| Colour 429 | Glare control 3 | Privacy at night 2 | Sight contact with the outside 1 | Daylight utilisation 1 |
0: No effect, 1: Low effect, 2: Medium effect, 3: High effect, 4: Very high effect
Downloads
Flame retardant
On request:
IMO
Certificates
On request:
Trevira GRS
