Fabric properties
Transparent
92% polyester Trevira CS, 8% polyester
140 g/m²
0.40 mm
325 cm
330 cm
330 cm
Features / Technical properties
6
Alpha-w = 0.45 / 0.65
Flame retardant
Applicable in humid areas
Suitable for Wave
Oeko-Tex
Washing instructions
-1%
-2%
-0.5%
-1%
Optical and solar coefficients (± 5%, DIN EN 410)
| Colour | |||||||
|---|---|---|---|---|---|---|---|

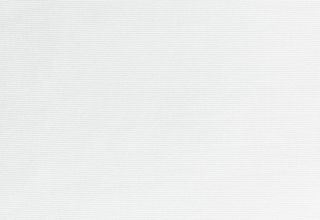

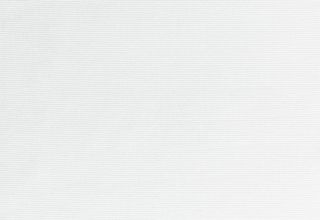

| Colour 111 | Tv(%) 44.1 | Ts(%) 43.5 | Rs(%) 51.6 | As(%) 4.9 | Tuv(%) 15.3 | Fc() 0.62 | gtot() 0.45 |

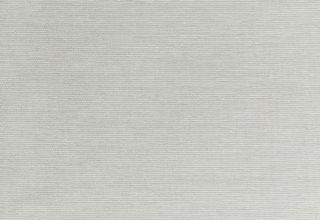

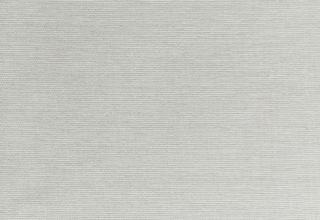

| Colour 131 | Tv(%) 33.1 | Ts(%) 33.3 | Rs(%) 44.0 | As(%) 22.7 | Tuv(%) 8.6 | Fc() 0.66 | gtot() 0.48 |

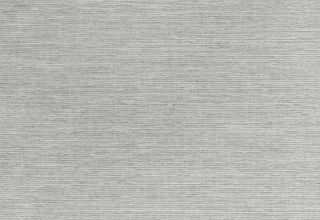

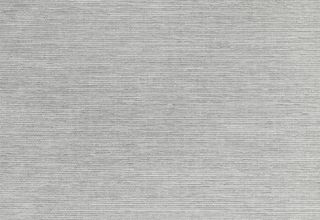

| Colour 161 | Tv(%) 30.5 | Ts(%) 30.3 | Rs(%) 36.9 | As(%) 32.8 | Tuv(%) 7.4 | Fc() 0.71 | gtot() 0.51 |

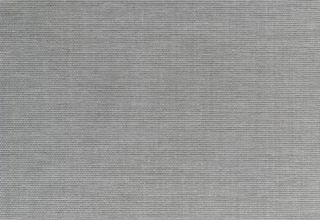

| Colour 181 | Tv(%) 31.0 | Ts(%) 30.8 | Rs(%) 29.2 | As(%) 40.0 | Tuv(%) 7.6 | Fc() 0.76 | gtot() 0.55 |

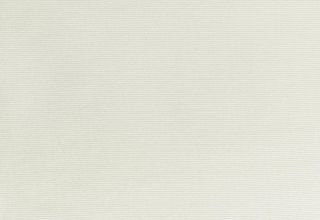

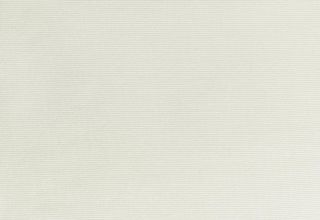

| Colour 211 | Tv(%) 37.6 | Ts(%) 37.9 | Rs(%) 50.9 | As(%) 11.2 | Tuv(%) 10.6 | Fc() 0.62 | gtot() 0.45 |

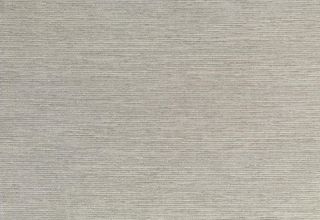

| Colour 261 | Tv(%) 31.4 | Ts(%) 31.1 | Rs(%) 37.2 | As(%) 31.7 | Tuv(%) 7.7 | Fc() 0.71 | gtot() 0.51 |

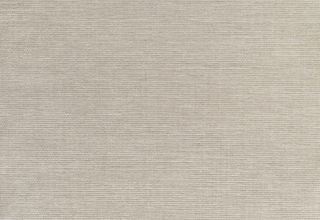

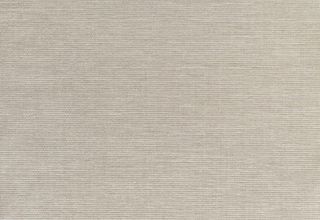

| Colour 431 | Tv(%) 30.4 | Ts(%) 33.1 | Rs(%) 42.9 | As(%) 24.0 | Tuv(%) 7.2 | Fc() 0.67 | gtot() 0.48 |

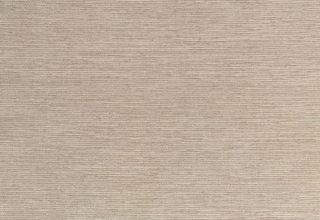

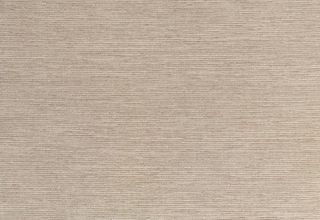

| Colour 461 | Tv(%) 30.1 | Ts(%) 33.2 | Rs(%) 40.0 | As(%) 26.8 | Tuv(%) 6.5 | Fc() 0.69 | gtot() 0.50 |
Fc + gtot: Value calculated with glass: 0.72 / Ug = 1.6 W/m² K, DIN EN 13363-1
Classification of solar shading devices (DIN EN 14501:2021)
| Colour | Glare control | Privacy at night | Sight contact with the outside | Daylight utilisation |
|---|---|---|---|---|
| Colour 111 | Glare control 0 | Privacy at night 1 | Sight contact with the outside 1 | Daylight utilisation 3 |
| Colour 131 | Glare control 0 | Privacy at night 1 | Sight contact with the outside 1 | Daylight utilisation 3 |
| Colour 161 | Glare control 0 | Privacy at night 1 | Sight contact with the outside 1 | Daylight utilisation 3 |
| Colour 181 | Glare control 0 | Privacy at night 1 | Sight contact with the outside 1 | Daylight utilisation 3 |
| Colour 211 | Glare control 0 | Privacy at night 1 | Sight contact with the outside 1 | Daylight utilisation 3 |
| Colour 261 | Glare control 0 | Privacy at night 1 | Sight contact with the outside 1 | Daylight utilisation 3 |
| Colour 431 | Glare control 0 | Privacy at night 1 | Sight contact with the outside 1 | Daylight utilisation 3 |
| Colour 461 | Glare control 0 | Privacy at night 1 | Sight contact with the outside 1 | Daylight utilisation 3 |
0: No effect, 1: Low effect, 2: Medium effect, 3: High effect, 4: Very high effect
Downloads
Flame retardant
On request:
IMO
Proven acoustic properties
Certificates
