Fabric properties
Dimout
Polyester
350 g/m²
0.80 mm
305 cm
310 cm
Features / Technical properties
5
Alpha-w = 0.60 / 0.80
Flame retardant

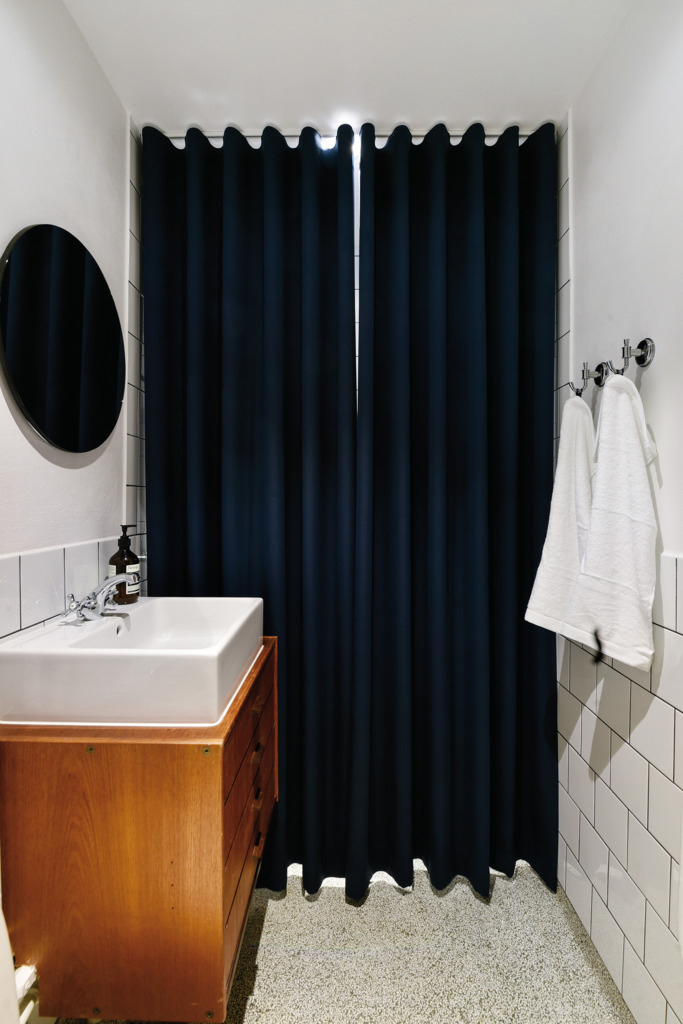

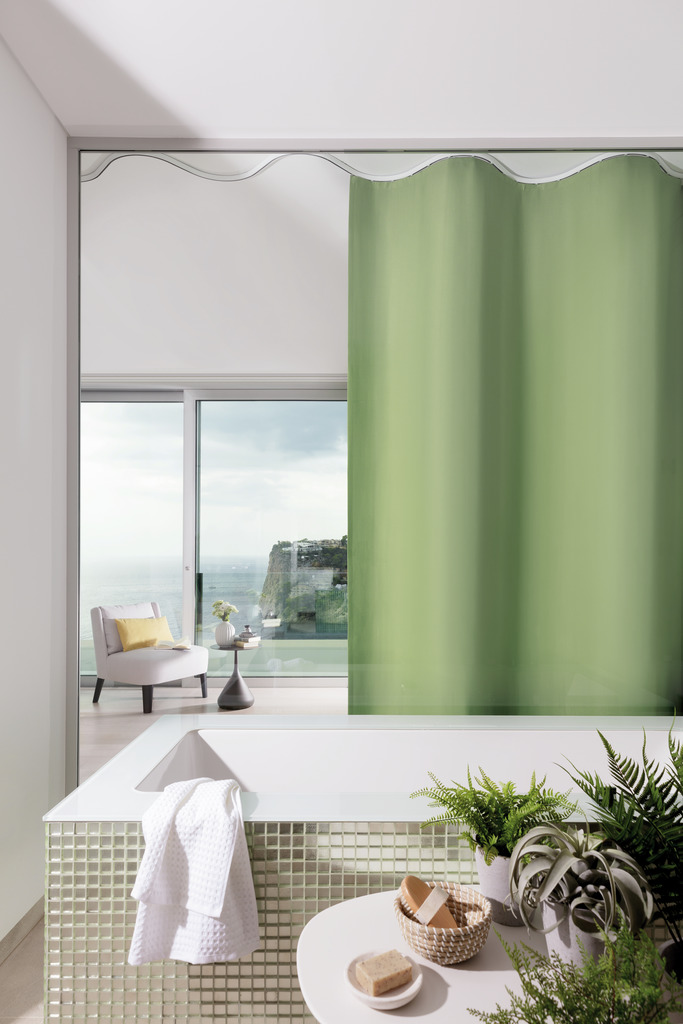

Applicable in humid areas
Fabric must be turned
Fabric must be turned
Oeko-Tex, Cradle to Cradle
Special colours from 240 m
Washing instructions
-0.5%
-1%
-2%
-0.25%
Optical and solar coefficients (± 5%, DIN EN 410)
| Colour | |||||||
|---|---|---|---|---|---|---|---|

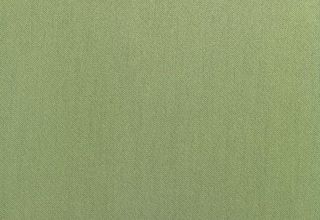

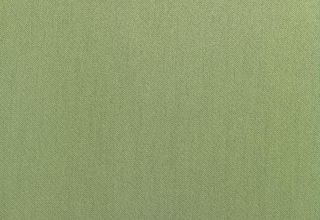

| Colour 408 | Tv(%) 0.1 | Ts(%) 0.1 | Rs(%) 31.3 | As(%) 68.6 | Tuv(%) 0.00 | Fc() 0.72 | gtot() 0.52 |

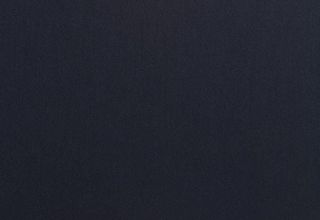

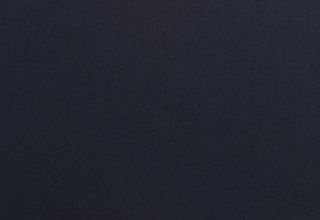

| Colour 409 | Tv(%) 0.0 | Ts(%) 0.1 | Rs(%) 18.0 | As(%) 81.9 | Tuv(%) 0.00 | Fc() 0.80 | gtot() 0.58 |

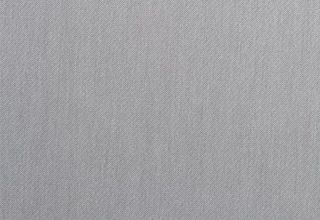

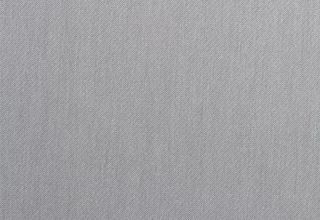

| Colour 410 | Tv(%) 0.0 | Ts(%) 0.1 | Rs(%) 27.4 | As(%) 72.5 | Tuv(%) 0.00 | Fc() 0.74 | gtot() 0.54 |

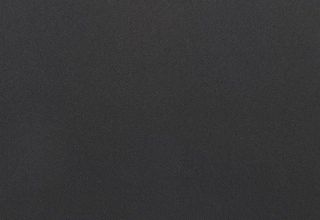

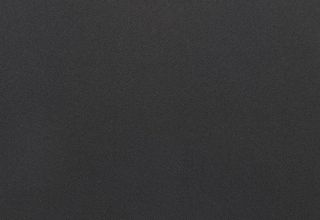

| Colour 411 | Tv(%) 0.0 | Ts(%) 0.1 | Rs(%) 20.9 | As(%) 79.0 | Tuv(%) 0.00 | Fc() 0.79 | gtot() 0.57 |

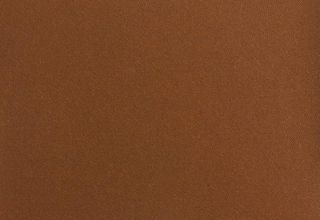

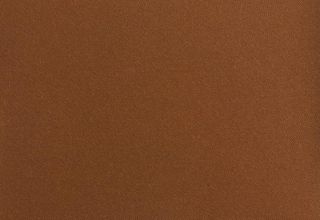

| Colour 422 | Tv(%) 0.0 | Ts(%) 0.1 | Rs(%) 23.2 | As(%) 76.7 | Tuv(%) 0.00 | Fc() 0.77 | gtot() 0.55 |

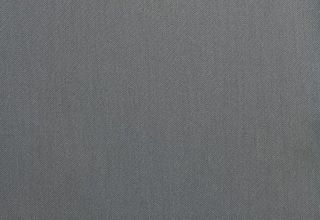

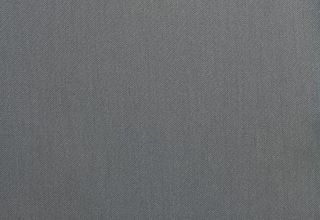

| Colour 429 | Tv(%) 0.0 | Ts(%) 0.1 | Rs(%) 26.2 | As(%) 73.7 | Tuv(%) 0.00 | Fc() 0.75 | gtot() 0.54 |

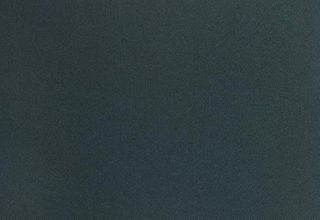

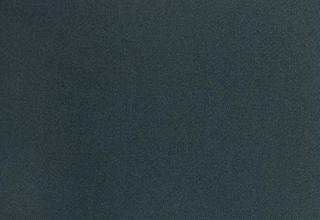

| Colour 446 | Tv(%) 0.0 | Ts(%) 0.1 | Rs(%) 19.7 | As(%) 80.2 | Tuv(%) 0.00 | Fc() 0.79 | gtot() 0.57 |

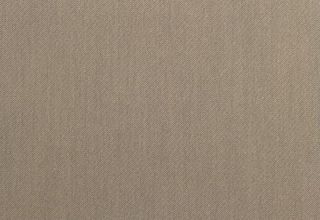

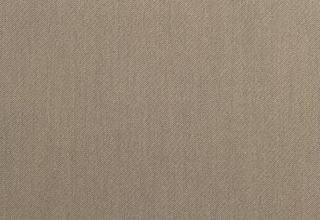

| Colour 463 | Tv(%) 0.1 | Ts(%) 0.1 | Rs(%) 29.9 | As(%) 70.0 | Tuv(%) 0.00 | Fc() 0.73 | gtot() 0.52 |

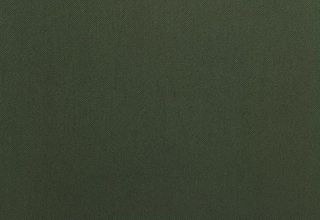

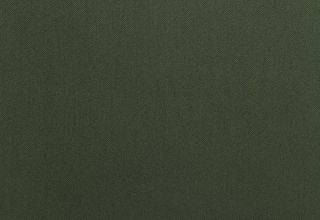

| Colour 478 | Tv(%) 0.0 | Ts(%) 0.1 | Rs(%) 21.0 | As(%) 78.9 | Tuv(%) 0.00 | Fc() 0.78 | gtot() 0.57 |

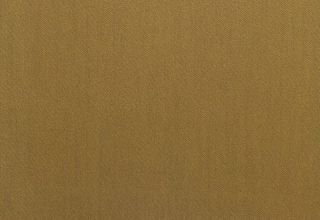

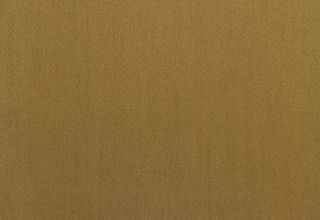

| Colour 479 | Tv(%) 0.0 | Ts(%) 0.1 | Rs(%) 25.3 | As(%) 74.6 | Tuv(%) 0.00 | Fc() 0.76 | gtot() 0.55 |
Fc + gtot: Value calculated with glass: 0.72 / Ug = 1.6 W/m² K, DIN EN 13363-1
Classification of solar shading devices (DIN EN 14501:2021)
| Colour | Glare control | Privacy at night | Sight contact with the outside | Daylight utilisation |
|---|---|---|---|---|
| Colour 408 | Glare control 4 | Privacy at night 4 | Sight contact with the outside 0 | Daylight utilisation 0 |
| Colour 409 | Glare control 4 | Privacy at night 4 | Sight contact with the outside 0 | Daylight utilisation 0 |
| Colour 410 | Glare control 4 | Privacy at night 4 | Sight contact with the outside 0 | Daylight utilisation 0 |
| Colour 411 | Glare control 4 | Privacy at night 4 | Sight contact with the outside 0 | Daylight utilisation 0 |
| Colour 422 | Glare control 4 | Privacy at night 4 | Sight contact with the outside 0 | Daylight utilisation 0 |
| Colour 429 | Glare control 4 | Privacy at night 4 | Sight contact with the outside 0 | Daylight utilisation 0 |
| Colour 446 | Glare control 4 | Privacy at night 4 | Sight contact with the outside 0 | Daylight utilisation 0 |
| Colour 463 | Glare control 4 | Privacy at night 4 | Sight contact with the outside 0 | Daylight utilisation 0 |
| Colour 478 | Glare control 4 | Privacy at night 4 | Sight contact with the outside 0 | Daylight utilisation 0 |
| Colour 479 | Glare control 4 | Privacy at night 4 | Sight contact with the outside 0 | Daylight utilisation 0 |
0: No effect, 1: Low effect, 2: Medium effect, 3: High effect, 4: Very high effect
