Fabric properties
Dimout
Polyester
370 g/m²
0.80 mm
290 cm
295 cm
Features / Technical properties
4-5
Alpha-w = 0.75 / 0.90
Flame retardant
Fabric must be turned
Fabric must be turned
Oeko-Tex
Special colours from 1’000 m
Washing instructions
-0.5%
-1%
-0.25%
Optical and solar coefficients (± 5%, DIN EN 410)
| Colour | |||||||
|---|---|---|---|---|---|---|---|

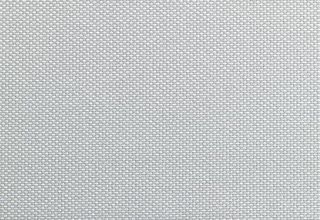

| Colour 1 | Tv(%) 1.9 | Ts(%) 2.2 | Rs(%) 62.0 | As(%) 35.8 | Tuv(%) 0.10 | Fc() 0.52 | gtot() 0.38 |

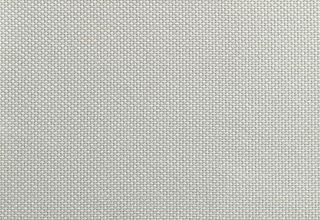

| Colour 2 | Tv(%) 1.9 | Ts(%) 2.2 | Rs(%) 62.0 | As(%) 35.8 | Tuv(%) 0.10 | Fc() 0.52 | gtot() 0.38 |
| Colour 3 | Tv(%) 1.9 | Ts(%) 2.2 | Rs(%) 62.0 | As(%) 35.8 | Tuv(%) 0.10 | Fc() 0.52 | gtot() 0.38 |
| Colour 5 | Tv(%) 1.9 | Ts(%) 2.2 | Rs(%) 62.0 | As(%) 35.8 | Tuv(%) 0.10 | Fc() 0.52 | gtot() 0.38 |
| Colour 7 | Tv(%) 0.0 | Ts(%) 1.0 | Rs(%) 38.8 | As(%) 60.2 | Tuv(%) 0.00 | Fc() 0.67 | gtot() 0.48 |

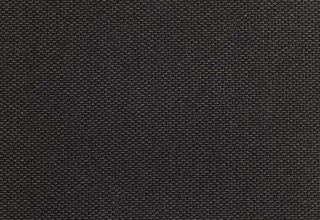

| Colour 8 | Tv(%) 0.0 | Ts(%) 1.0 | Rs(%) 40.9 | As(%) 58.1 | Tuv(%) 0.00 | Fc() 0.66 | gtot() 0.47 |
| Colour 9 | Tv(%) 0.1 | Ts(%) 1.2 | Rs(%) 45.9 | As(%) 52.9 | Tuv(%) 0.00 | Fc() 0.63 | gtot() 0.45 |
| Colour 21 | Tv(%) 0.3 | Ts(%) 1.4 | Rs(%) 61.4 | As(%) 37.2 | Tuv(%) 0.00 | Fc() 0.53 | gtot() 0.38 |
| Colour 23 | Tv(%) 1.9 | Ts(%) 2.2 | Rs(%) 62.0 | As(%) 35.8 | Tuv(%) 0.10 | Fc() 0.52 | gtot() 0.38 |
| Colour 24 | Tv(%) 0.3 | Ts(%) 1.4 | Rs(%) 61.4 | As(%) 37.2 | Tuv(%) 0.00 | Fc() 0.53 | gtot() 0.38 |

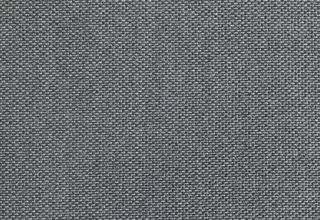

| Colour 25 | Tv(%) 0.1 | Ts(%) 1.2 | Rs(%) 45.9 | As(%) 52.9 | Tuv(%) 0.00 | Fc() 0.63 | gtot() 0.45 |

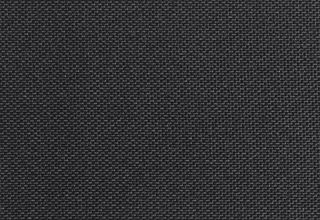

| Colour 26 | Tv(%) 0.0 | Ts(%) 1.0 | Rs(%) 40.9 | As(%) 58.1 | Tuv(%) 0.00 | Fc() 0.66 | gtot() 0.47 |

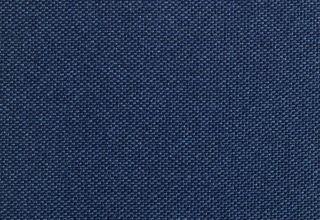

| Colour 28 | Tv(%) 0.0 | Ts(%) 1.0 | Rs(%) 40.9 | As(%) 58.1 | Tuv(%) 0.00 | Fc() 0.66 | gtot() 0.47 |
Fc + gtot: Value calculated with glass: 0.72 / Ug = 1.6 W/m² K, DIN EN 13363-1
Downloads
Flame retardant
On request:
Class 1 (UNI 9176/77)
M1 (NF P 92-503/5/7)
IMO
Proven acoustic properties
