Mercuro

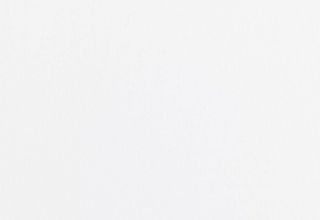

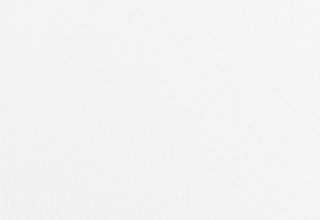

01

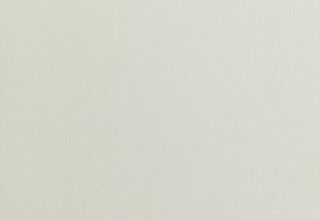

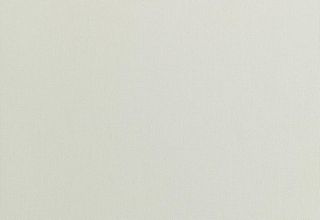

04
28

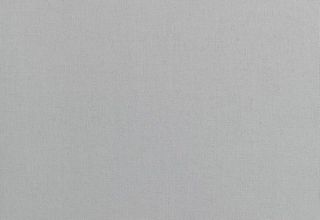

33

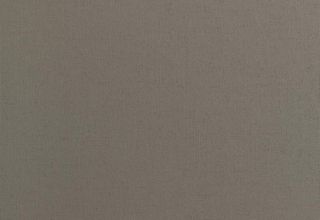

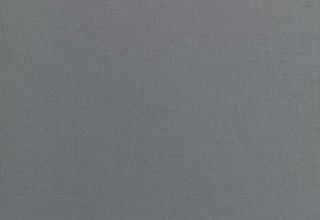

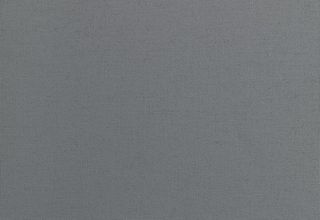

35

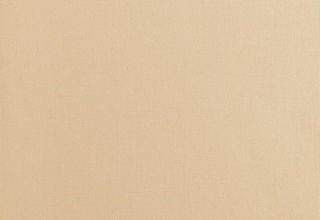

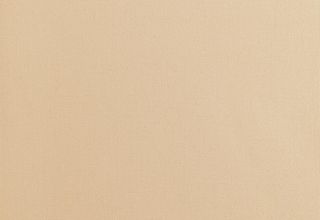

44

Applications

Width < 260 cm: Dim-out blinds
Not suitable: SG 4905

Fabric properties

Blackout
Polyester acrylic-coated
340 g/m²
0.38 mm
235 cm, 295 cm (01, 04, 28, 35, 44)
12.7 cm, 240 cm, 300 cm (01, 04, 28, 35, 44)

Features / Technical properties

5-6
Flame retardant
Digital printing
Oeko-Tex
Special colours from 500 m

Washing instructions

Oeko-Tex

Optical and solar coefficients (± 5%, DIN EN 410)

Colour
Colour 01Tv(%) 0.0 Ts(%) 0.0 Rs(%) 66.0 As(%) 34.0 Tuv(%) 0.00 Fc() 0.50 gtot() 0.36
Colour 04Tv(%) 0.0 Ts(%) 0.0 Rs(%) 71.0 As(%) 29.0 Tuv(%) 0.00 Fc() 0.46 gtot() 0.33

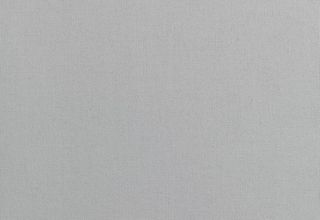

Colour 28Tv(%) 0.0 Ts(%) 0.0 Rs(%) 69.0 As(%) 31.0 Tuv(%) 0.00 Fc() 0.48 gtot() 0.34

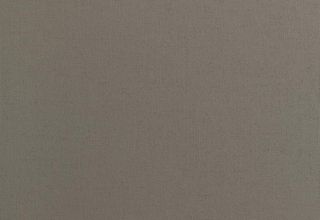

Colour 33Tv(%) 0.0 Ts(%) 0.0 Rs(%) 71.0 As(%) 29.0 Tuv(%) 0.00 Fc() 0.47 gtot() 0.34
Colour 35Tv(%) 0.0 Ts(%) 0.0 Rs(%) 71.0 As(%) 29.0 Tuv(%) 0.00 Fc() 0.46 gtot() 0.33
Colour 44Tv(%) 0.0 Ts(%) 0.0 Rs(%) 70.0 As(%) 30.0 Tuv(%) 0.00 Fc() 0.49 gtot() 0.34
Fc + gtot: Value calculated with glass: 0.72 / Ug = 1.6 W/m² K, DIN EN 13363-1

Classification of solar shading devices (DIN EN 14501:2021)

Colour Glare control Privacy at night Sight contact with the outside Daylight utilisation
Colour 01Glare control 4 Privacy at night 4 Sight contact with the outside 0 Daylight utilisation 0
Colour 04Glare control 4 Privacy at night 4 Sight contact with the outside 0 Daylight utilisation 0
Colour 28Glare control 4 Privacy at night 4 Sight contact with the outside 0 Daylight utilisation 0
Colour 33Glare control 4 Privacy at night 4 Sight contact with the outside 0 Daylight utilisation 0
Colour 35Glare control 4 Privacy at night 4 Sight contact with the outside 0 Daylight utilisation 0
Colour 44Glare control 4 Privacy at night 4 Sight contact with the outside 0 Daylight utilisation 0
0: No effect, 1: Low effect, 2: Medium effect, 3: High effect, 4: Very high effect

Data Sheet

Downloads

Flame retardant
B-s2,d0 (EN 13501-1)
Type B (BS 5867-2)
B1 (DIN 4102-1)
On request:
M1 (NF P 92-503/5/7)
NFPA 701
Certificates
Oeko-Tex

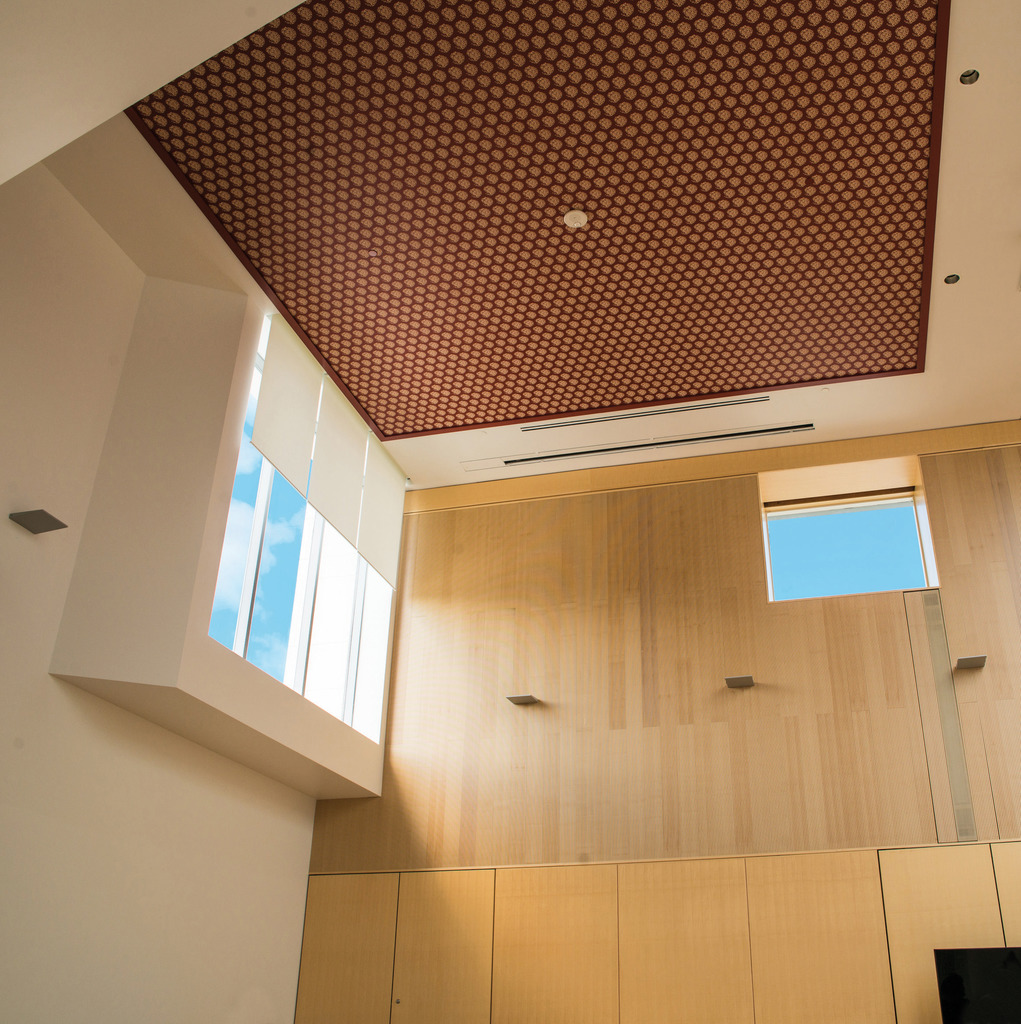

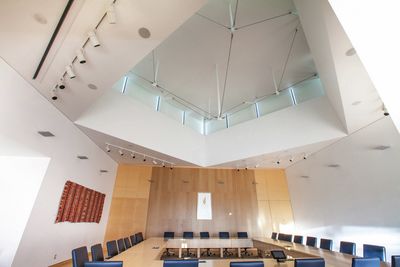

Inspiration
