Fabric properties
Dimout
Polyester
400 g/m²
0.80 mm
315 cm
320 cm
320 cm
Features / Technical properties
6
Alpha-w = 0.65 / 0.85
Flame retardant
Applicable in humid areas
Fabric must be turned
Fabric must be turned
Oeko-Tex, Cradle to Cradle
Washing instructions
-1%
-2%
-2.5%
-0.5%
-1%
Optical and solar coefficients (± 5%, DIN EN 410)
| Colour | |||||||
|---|---|---|---|---|---|---|---|

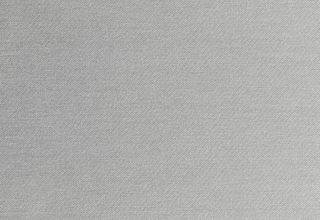

| Colour 111 | Tv(%) 0.1 | Ts(%) 0.2 | Rs(%) 50.1 | As(%) 49.7 | Tuv(%) 0.10 | Fc() 0.60 | gtot() 0.43 |

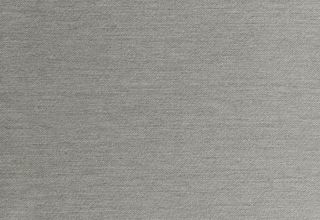

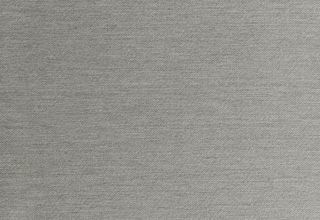

| Colour 131 | Tv(%) 0.0 | Ts(%) 0.0 | Rs(%) 50.4 | As(%) 49.6 | Tuv(%) 0.00 | Fc() 0.60 | gtot() 0.43 |

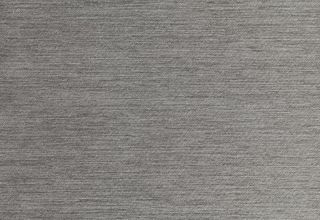

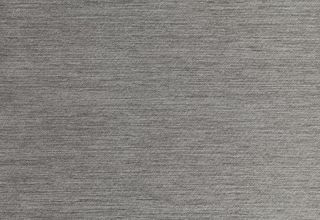

| Colour 161 | Tv(%) 0.0 | Ts(%) 0.0 | Rs(%) 47.9 | As(%) 52.1 | Tuv(%) 0.00 | Fc() 0.61 | gtot() 0.44 |

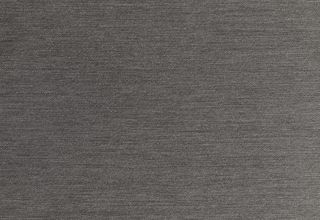

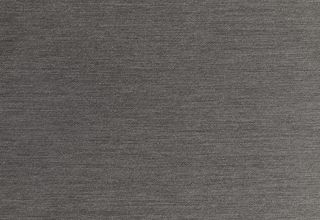

| Colour 181 | Tv(%) 0.0 | Ts(%) 0.0 | Rs(%) 49.2 | As(%) 50.8 | Tuv(%) 0.00 | Fc() 0.60 | gtot() 0.44 |

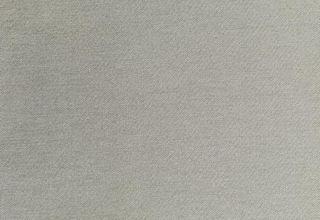

| Colour 211 | Tv(%) 0.1 | Ts(%) 0.2 | Rs(%) 50.5 | As(%) 49.3 | Tuv(%) 0.00 | Fc() 0.60 | gtot() 0.43 |

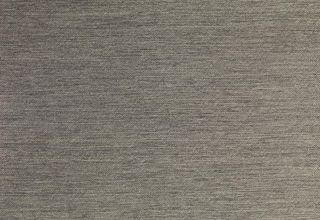

| Colour 261 | Tv(%) 0.0 | Ts(%) 0.0 | Rs(%) 49.8 | As(%) 50.2 | Tuv(%) 0.00 | Fc() 0.60 | gtot() 0.43 |

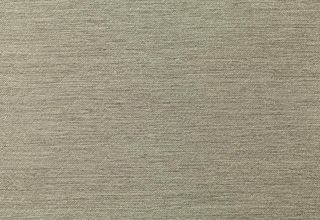

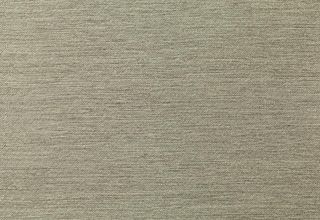

| Colour 431 | Tv(%) 0.0 | Ts(%) 0.1 | Rs(%) 49.9 | As(%) 50.0 | Tuv(%) 0.00 | Fc() 0.60 | gtot() 0.43 |

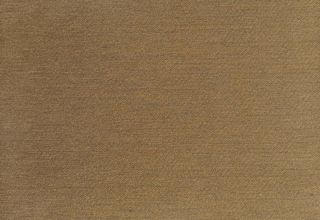

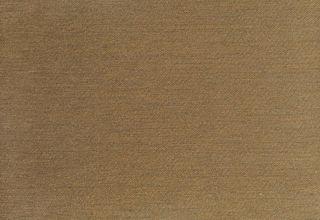

| Colour 461 | Tv(%) 0.0 | Ts(%) 0.1 | Rs(%) 50.4 | As(%) 49.5 | Tuv(%) 0.00 | Fc() 0.60 | gtot() 0.43 |
Fc + gtot: Value calculated with glass: 0.72 / Ug = 1.6 W/m² K, DIN EN 13363-1
Classification of solar shading devices (DIN EN 14501:2021)
| Colour | Glare control | Privacy at night | Sight contact with the outside | Daylight utilisation |
|---|---|---|---|---|
| Colour 111 | Glare control 4 | Privacy at night 4 | Sight contact with the outside 0 | Daylight utilisation 0 |
| Colour 131 | Glare control 4 | Privacy at night 4 | Sight contact with the outside 0 | Daylight utilisation 0 |
| Colour 161 | Glare control 4 | Privacy at night 4 | Sight contact with the outside 0 | Daylight utilisation 0 |
| Colour 181 | Glare control 4 | Privacy at night 4 | Sight contact with the outside 0 | Daylight utilisation 0 |
| Colour 211 | Glare control 4 | Privacy at night 4 | Sight contact with the outside 0 | Daylight utilisation 0 |
| Colour 261 | Glare control 4 | Privacy at night 4 | Sight contact with the outside 0 | Daylight utilisation 0 |
| Colour 431 | Glare control 4 | Privacy at night 4 | Sight contact with the outside 0 | Daylight utilisation 0 |
| Colour 461 | Glare control 4 | Privacy at night 4 | Sight contact with the outside 0 | Daylight utilisation 0 |
0: No effect, 1: Low effect, 2: Medium effect, 3: High effect, 4: Very high effect
Downloads
Flame retardant
On request:
IMO
Proven acoustic properties
Certificates
