Fabric properties
Semi transparent
Polyester
210 g/m²
0.45 mm
325 cm
330 cm
Features / Technical properties
6
Alpha-w = 0.30
Flame retardant
Applicable in humid areas
Suitable for Wave
Oeko-Tex
Washing instructions
-1%
-2.5%
-3.5%
-1%
Optical and solar coefficients (± 5%, DIN EN 410)
| Colour | |||||||
|---|---|---|---|---|---|---|---|

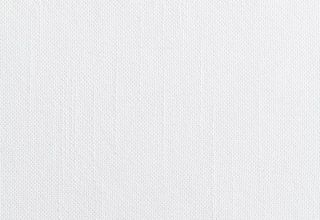

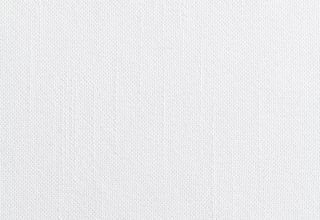

| Colour 10 | Tv(%) 34.0 | Ts(%) 33.3 | Rs(%) 60.7 | As(%) 6.0 | Tuv(%) 11.7 | Fc() 0.56 | gtot() 0.40 |

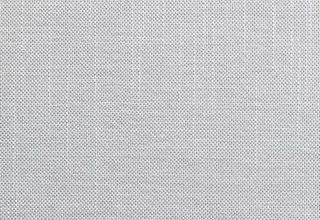

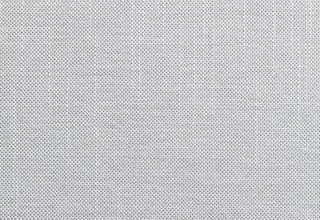

| Colour 20 | Tv(%) 19.6 | Ts(%) 20.9 | Rs(%) 43.5 | As(%) 35.6 | Tuv(%) 11.1 | Fc() 0.66 | gtot() 0.47 |
| Colour 30 | Tv(%) 18.6 | Ts(%) 19.6 | Rs(%) 40.6 | As(%) 39.8 | Tuv(%) 10.1 | Fc() 0.68 | gtot() 0.49 |

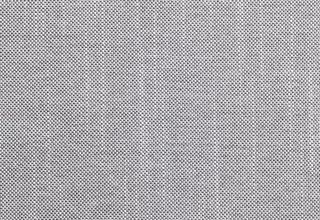

| Colour 40 | Tv(%) 15.7 | Ts(%) 16.6 | Rs(%) 31.2 | As(%) 52.2 | Tuv(%) 9.8 | Fc() 0.73 | gtot() 0.53 |

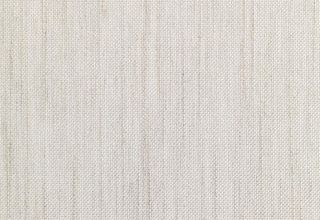

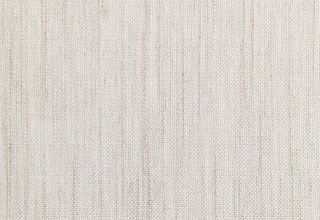

| Colour 50 | Tv(%) 27.0 | Ts(%) 31.7 | Rs(%) 51.6 | As(%) 16.7 | Tuv(%) 17.7 | Fc() 0.61 | gtot() 0.44 |

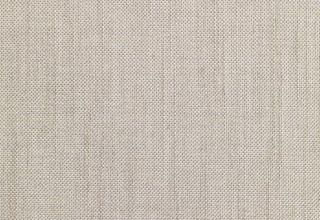

| Colour 60 | Tv(%) 20.9 | Ts(%) 25.4 | Rs(%) 41.6 | As(%) 33.0 | Tuv(%) 16.2 | Fc() 0.67 | gtot() 0.48 |

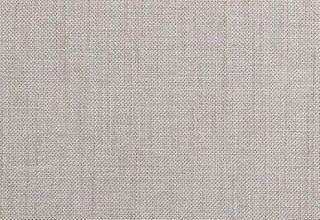

| Colour 70 | Tv(%) 17.2 | Ts(%) 21.4 | Rs(%) 37.5 | As(%) 41.1 | Tuv(%) 14.6 | Fc() 0.70 | gtot() 0.50 |

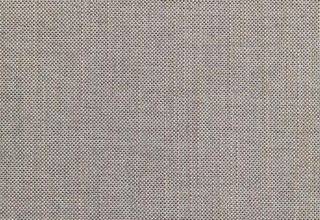

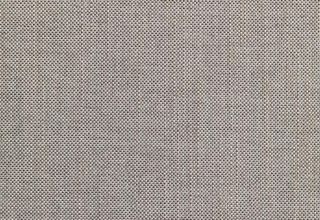

| Colour 80 | Tv(%) 15.5 | Ts(%) 18.7 | Rs(%) 27.7 | As(%) 53.6 | Tuv(%) 13.0 | Fc() 0.76 | gtot() 0.54 |
Fc + gtot: Value calculated with glass: 0.72 / Ug = 1.6 W/m² K, DIN EN 13363-1
Classification of solar shading devices (DIN EN 14501:2021)
| Colour | Glare control | Privacy at night | Sight contact with the outside | Daylight utilisation |
|---|---|---|---|---|
| Colour 10 | Glare control 0 | Privacy at night 1 | Sight contact with the outside 1 | Daylight utilisation 3 |
| Colour 20 | Glare control 0 | Privacy at night 1 | Sight contact with the outside 2 | Daylight utilisation 2 |
| Colour 30 | Glare control 0 | Privacy at night 1 | Sight contact with the outside 2 | Daylight utilisation 2 |
| Colour 40 | Glare control 0 | Privacy at night 1 | Sight contact with the outside 2 | Daylight utilisation 2 |
| Colour 50 | Glare control 0 | Privacy at night 1 | Sight contact with the outside 1 | Daylight utilisation 2 |
| Colour 60 | Glare control 0 | Privacy at night 1 | Sight contact with the outside 2 | Daylight utilisation 2 |
| Colour 70 | Glare control 0 | Privacy at night 1 | Sight contact with the outside 2 | Daylight utilisation 2 |
| Colour 80 | Glare control 0 | Privacy at night 1 | Sight contact with the outside 2 | Daylight utilisation 2 |
0: No effect, 1: Low effect, 2: Medium effect, 3: High effect, 4: Very high effect
