Fabric properties
Semi transparent
100% recycl. polyester, aluminium backed
215 g/m²
0.55 mm
235 cm
240 cm
Features / Technical properties
7
Flame retardant
Optimised for workstations
Low heat transmittance
Digital printing
Oeko-Tex, Cradle to Cradle
Special colours from 400 m
Washing instructions
Optical and solar coefficients (± 5%, DIN EN 410)
| Colour |
|
|
|
|
|
|
|
|---|---|---|---|---|---|---|---|

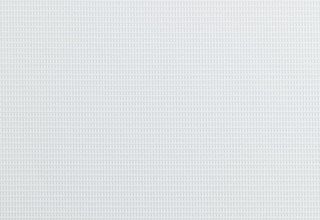

| Colour 101 | Tv(%) 9.6 | Ts(%) 9.7 | Rs(%) 59.2 | As(%) 31.1 | Tuv(%) 10.8 | Fc() 0.55 | gtot() 0.39 |

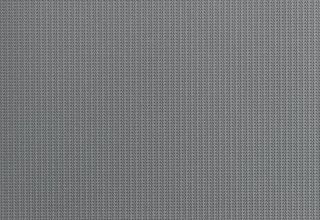

| Colour 104 | Tv(%) 4.1 | Ts(%) 7.0 | Rs(%) 56.9 | As(%) 36.1 | Tuv(%) 4.0 | Fc() 0.56 | gtot() 0.40 |

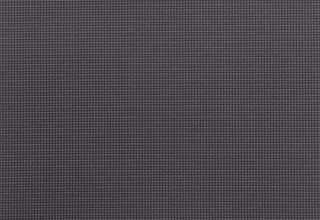

| Colour 105 | Tv(%) 2.9 | Ts(%) 5.9 | Rs(%) 57.7 | As(%) 36.4 | Tuv(%) 2.9 | Fc() 0.55 | gtot() 0.40 |

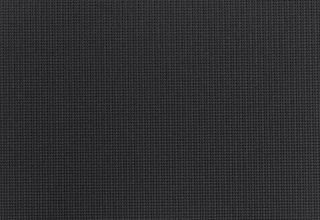

| Colour 108 | Tv(%) 2.4 | Ts(%) 5.5 | Rs(%) 59.7 | As(%) 34.8 | Tuv(%) 2.5 | Fc() 0.54 | gtot() 0.39 |
Fc + gtot: Value calculated with glass: 0.72 / Ug = 1.6 W/m² K, DIN EN 13363-1
Downloads
On request:
B1 (DIN 4102-1)
M1 (NF P 92-503/5/7)
On request:
Cradle to Cradle
