Nox

1
2

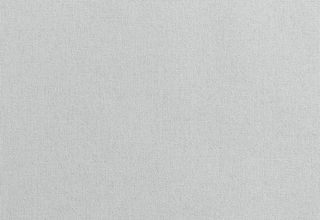

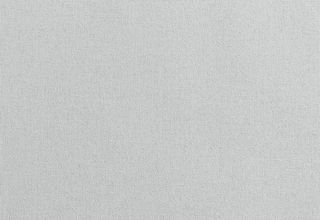

3

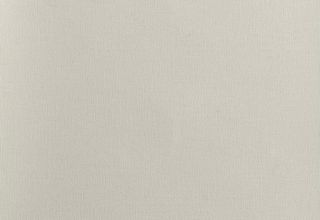

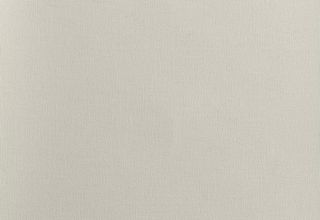

4

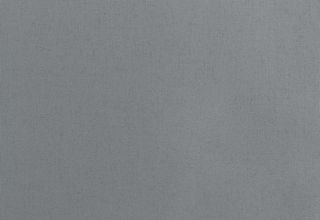

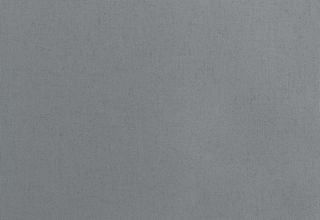

5

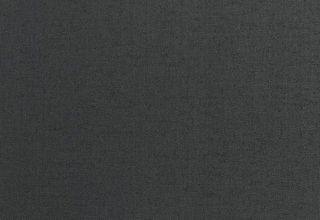

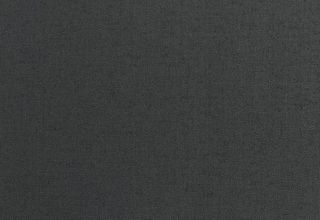

6

Applications

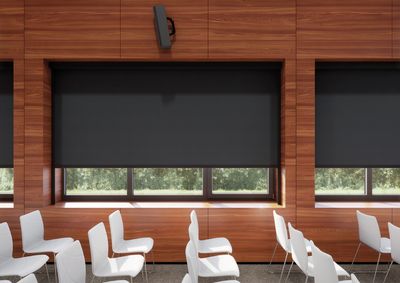

Width < 260 cm: Dim-out blinds
Not suitable: SG 4905

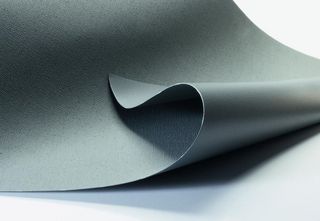

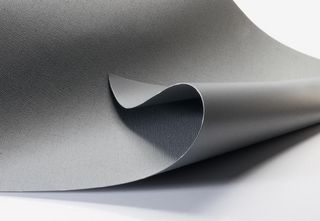

Fabric properties

Blackout
Polyester acrylic-coated
340 g/m²
0.44 mm
295 cm
12.7 cm, 300 cm

Features / Technical properties

5-6
Flame retardant
Digital printing
Oeko-Tex
Special colours from 1’000 m

Washing instructions

Oeko-Tex

Optical and solar coefficients (± 5%, DIN EN 410)

Colour
Colour 1Tv(%) 0.0 Ts(%) 0.0 Rs(%) 72.0 As(%) 28.0 Tuv(%) 0.00 Fc() 0.46 gtot() 0.33
Colour 2Tv(%) 0.0 Ts(%) 0.0 Rs(%) 70.0 As(%) 30.0 Tuv(%) 0.00 Fc() 0.47 gtot() 0.34
Colour 3Tv(%) 0.0 Ts(%) 0.0 Rs(%) 49.0 As(%) 51.0 Tuv(%) 0.00 Fc() 0.61 gtot() 0.44
Colour 4Tv(%) 0.0 Ts(%) 0.0 Rs(%) 44.0 As(%) 56.0 Tuv(%) 0.00 Fc() 0.64 gtot() 0.46
Colour 5Tv(%) 0.0 Ts(%) 0.0 Rs(%) 17.0 As(%) 83.0 Tuv(%) 0.00 Fc() 0.81 gtot() 0.58
Colour 6Tv(%) 0.0 Ts(%) 0.0 Rs(%) 5.0 As(%) 95.0 Tuv(%) 0.00 Fc() 0.89 gtot() 0.64
Fc + gtot: Value calculated with glass: 0.72 / Ug = 1.6 W/m² K, DIN EN 13363-1

Classification of solar shading devices (DIN EN 14501:2021)

Colour Glare control Privacy at night Sight contact with the outside Daylight utilisation
Colour 1Glare control 4 Privacy at night 4 Sight contact with the outside 0 Daylight utilisation 0
Colour 2Glare control 4 Privacy at night 4 Sight contact with the outside 0 Daylight utilisation 0
Colour 3Glare control 4 Privacy at night 4 Sight contact with the outside 0 Daylight utilisation 0
Colour 4Glare control 4 Privacy at night 4 Sight contact with the outside 0 Daylight utilisation 0
Colour 5Glare control 4 Privacy at night 4 Sight contact with the outside 0 Daylight utilisation 0
Colour 6Glare control 4 Privacy at night 4 Sight contact with the outside 0 Daylight utilisation 0
0: No effect, 1: Low effect, 2: Medium effect, 3: High effect, 4: Very high effect

Data Sheet

Downloads

Flame retardant
B1 (DIN 4102-1)
On request:
B-s2,d0 (EN 13501-1)
Type B (BS 5867-2)
Proven acoustic properties
Oeko-Tex

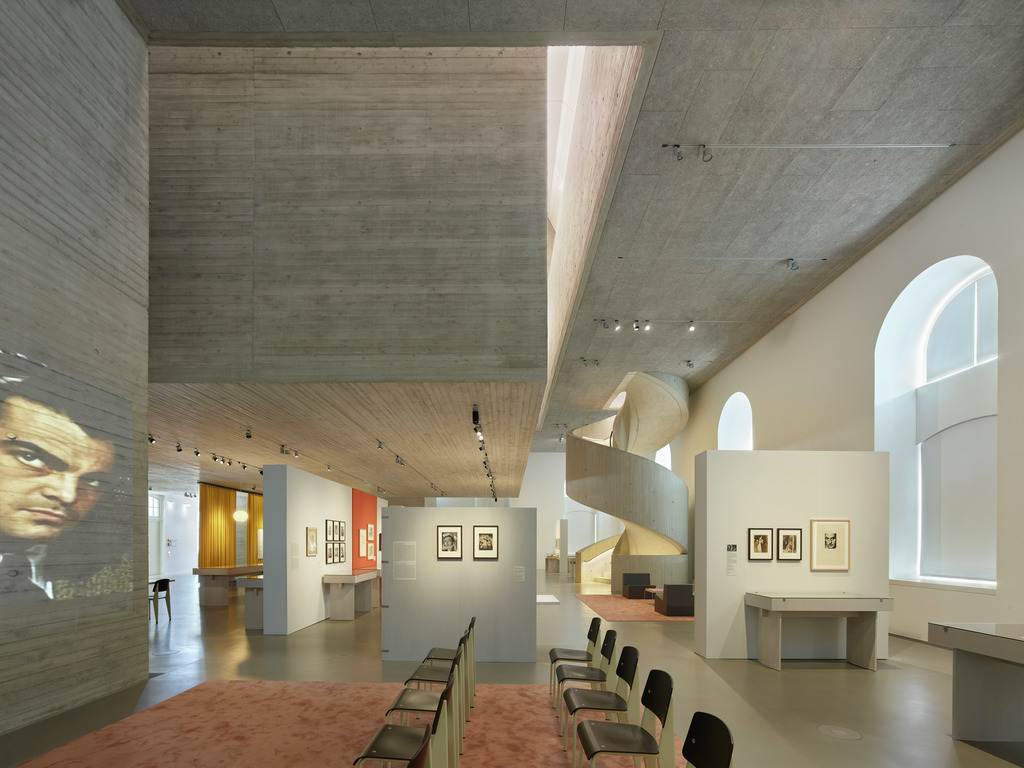

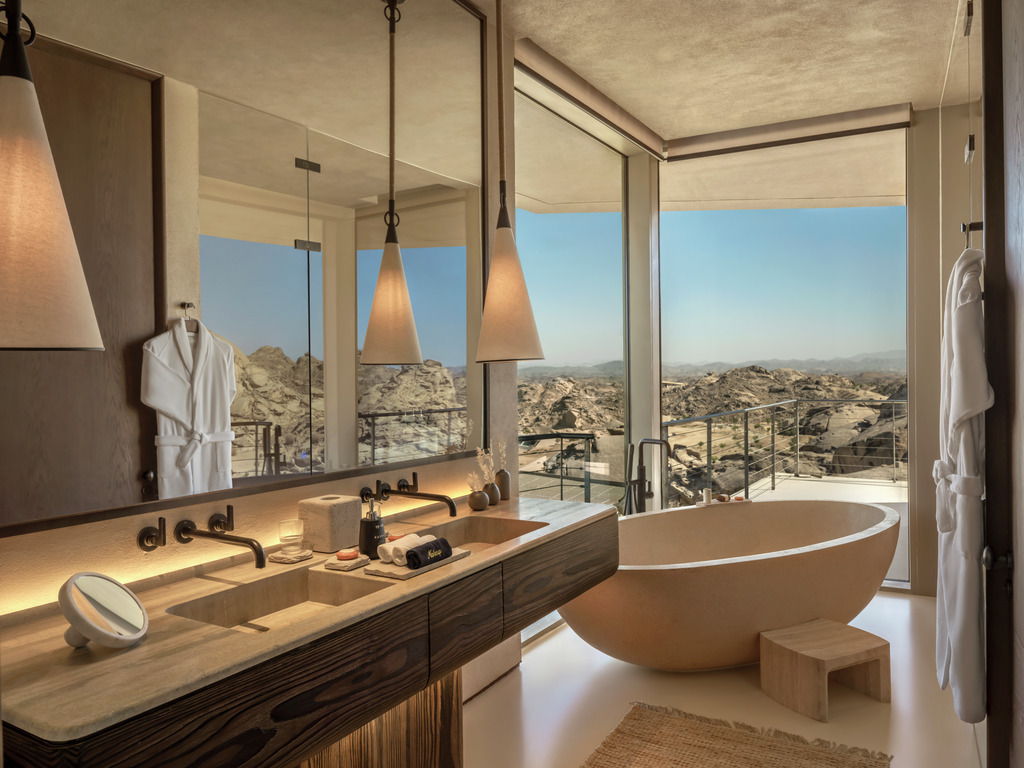

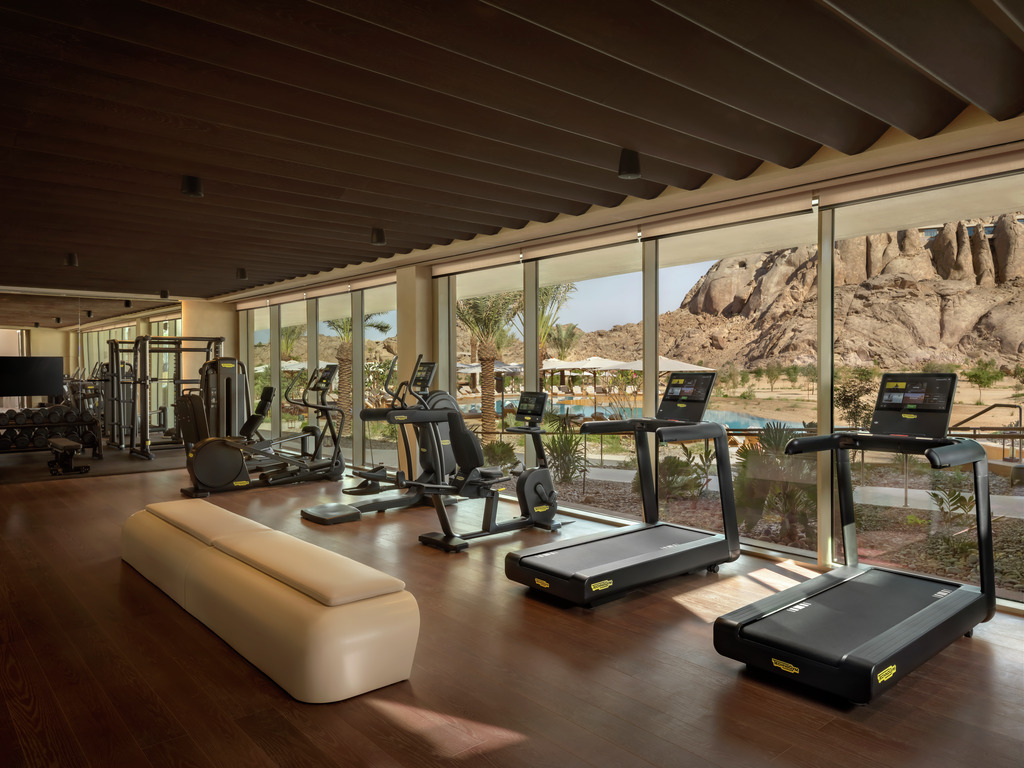

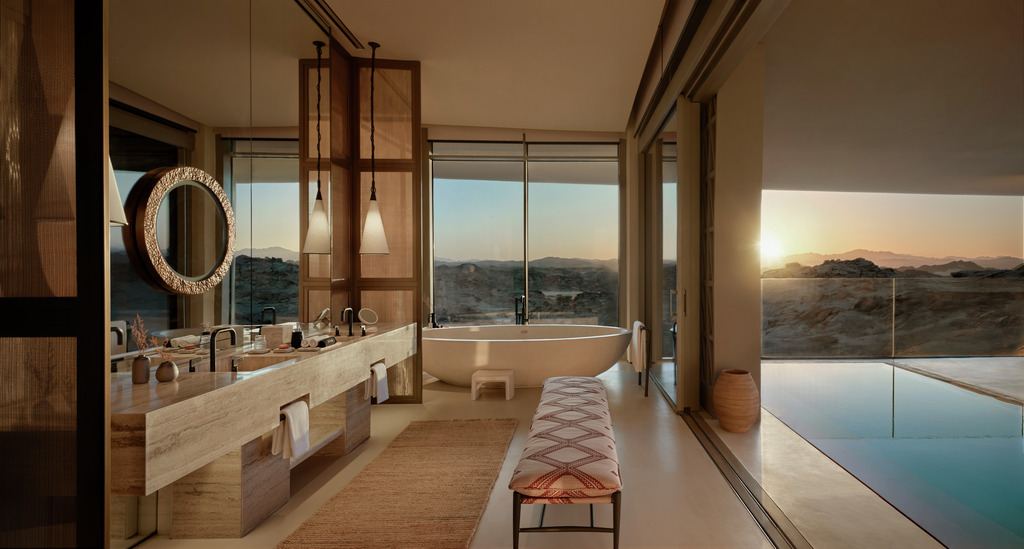

Inspiration
