Reflex

x

-

+

Applications

Fabric properties

	soft	stiff
	Semi transparent
	Polyester Trevira CS, aluminium backed
	190 g/m²	170 g/m²
	0.50 mm	0.36 mm
	235 cm
	240 cm
		12.7 cm, 240 cm

Features / Technical properties

	soft	stiff
	5-6
	Alpha-w = 0.25
	Flame retardant
	Optimised for workstations
	Low heat transmittance
	Suitable for Wave
		Digital printing
	Oeko-Tex
	Special colours from 500 m

Washing instructions

Optical and solar coefficients (± 5%, DIN EN 410)

Colour
soft

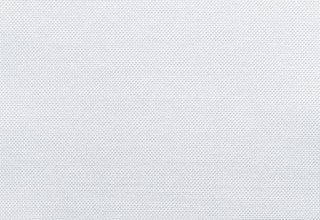

Colour 111	Tv(%) 12.0	Ts(%) 11.0	Rs(%) 41.0	As(%) 48.0	Tuv(%) 12.0	Fc() 0.68	gtot() 0.47

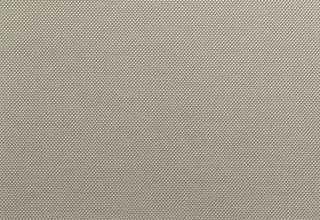

Colour 116	Tv(%) 7.0	Ts(%) 9.0	Rs(%) 38.0	As(%) 53.0	Tuv(%) 7.0	Fc() 0.69	gtot() 0.49

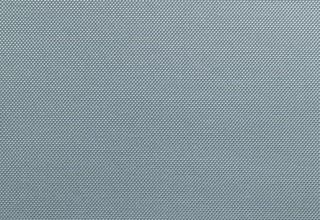

Colour 119	Tv(%) 6.0	Ts(%) 8.0	Rs(%) 39.0	As(%) 53.0	Tuv(%) 6.0	Fc() 0.69	gtot() 0.48

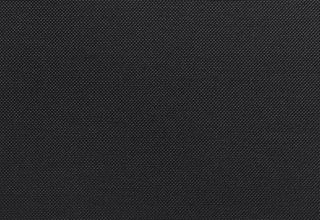

Colour 911	Tv(%) 5.0	Ts(%) 7.0	Rs(%) 40.0	As(%) 53.0	Tuv(%) 5.0	Fc() 0.67	gtot() 0.47

Colour
stiff

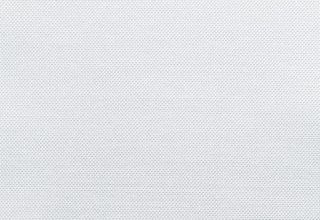

Colour 111	Tv(%) 11.0	Ts(%) 11.0	Rs(%) 50.0	As(%) 39.0	Tuv(%) 11.0	Fc() 0.61	gtot() 0.44

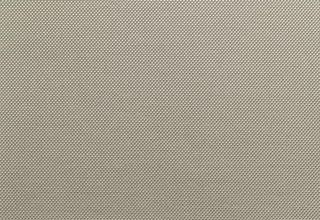

Colour 116	Tv(%) 6.0	Ts(%) 8.0	Rs(%) 50.0	As(%) 42.0	Tuv(%) 6.0	Fc() 0.62	gtot() 0.43

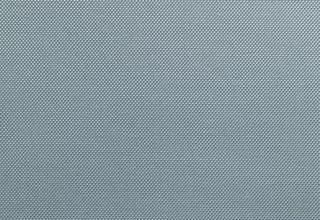

Colour 119	Tv(%) 7.0	Ts(%) 9.0	Rs(%) 49.0	As(%) 42.0	Tuv(%) 7.0	Fc() 0.61	gtot() 0.44
Colour 911	Tv(%) 3.0	Ts(%) 6.0	Rs(%) 48.0	As(%) 46.0	Tuv(%) 4.0	Fc() 0.62	gtot() 0.44

Fc + gtot: Value calculated with glass: 0.72 / Ug = 1.6 W/m² K, DIN EN 13363-1

Classification of solar shading devices (DIN EN 14501:2021)

Colour	Glare control	Privacy at night	Sight contact with the outside	Daylight utilisation
stiff
Colour 111	0	2	1	1
Colour 116	1	2	2	1
Colour 119	1	2	2	1
Colour 911	1	2	2	1

0: No effect, 1: Low effect, 2: Medium effect, 3: High effect, 4: Very high effect

Data Sheet

Downloads

Flame retardant

B-s1,d0, Class 1, B1, Type B, soft

Type B (BS 5867-2) stiff

B1 (DIN 4102-1) stiff

On request:

NFPA 701

M1 (NF P 92-503/5/7)

Proven acoustic properties

Certificates
