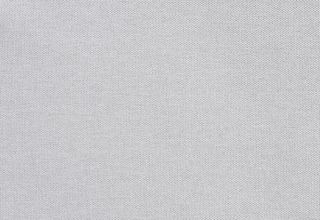

Somnia

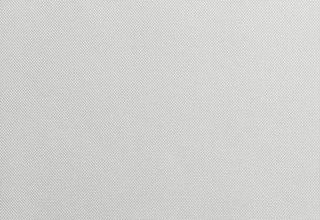

1

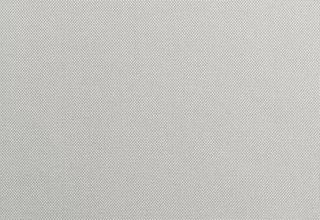

2

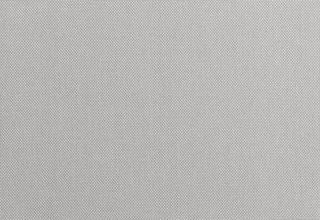

3

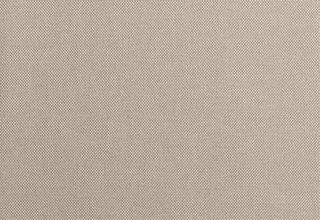

4
10

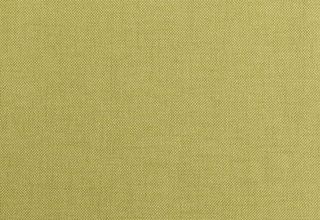

12

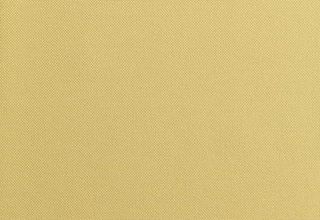

13

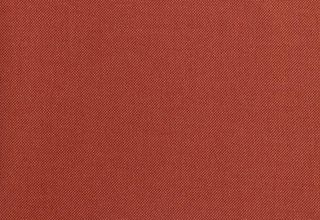

15

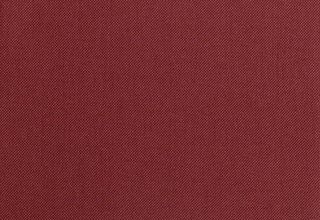

16

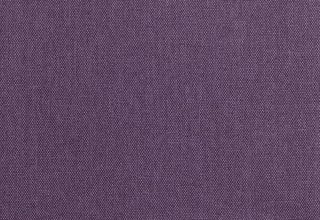

18

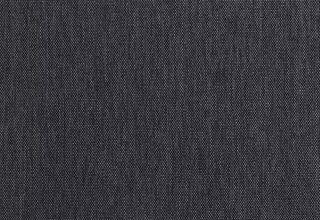

20

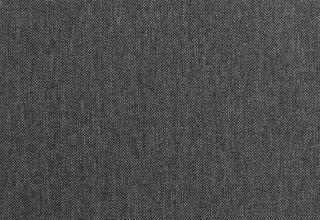

21

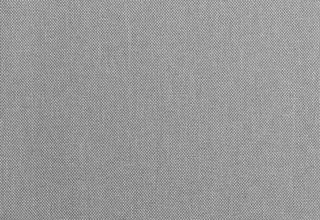

22

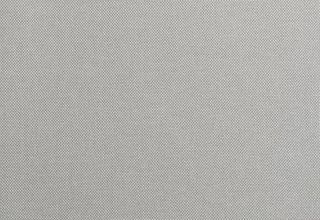

23

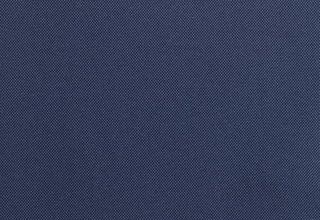

24

Applications

Fabric properties

Blackout
Polyester acrylic-coated
445 g/m²
0.70 mm
275 cm
280 cm

Features / Technical properties

4-5
Flame retardant
Fabric must be turned
Oeko-Tex
Special colours from 1’000 m

Washing instructions

-1.5%
-0.75%
Iron only on the face (front) side!
Oeko-TexIMO

Optical and solar coefficients (± 5%, DIN EN 410)

Colour
Colour 1Tv(%) 0.0 Ts(%) 0.0 Rs(%) 66.2 As(%) 33.8 Tuv(%) 0.00 Fc() 0.50 gtot() 0.36
Colour 2Tv(%) 0.0 Ts(%) 0.0 Rs(%) 66.2 As(%) 33.8 Tuv(%) 0.00 Fc() 0.50 gtot() 0.36
Colour 3Tv(%) 0.0 Ts(%) 0.0 Rs(%) 66.2 As(%) 33.8 Tuv(%) 0.00 Fc() 0.50 gtot() 0.36
Colour 4Tv(%) 0.0 Ts(%) 0.0 Rs(%) 66.2 As(%) 33.8 Tuv(%) 0.00 Fc() 0.50 gtot() 0.36
Colour 10Tv(%) 0.0 Ts(%) 0.0 Rs(%) 70.4 As(%) 29.6 Tuv(%) 0.00 Fc() 0.47 gtot() 0.34
Colour 12Tv(%) 0.0 Ts(%) 0.0 Rs(%) 70.4 As(%) 29.6 Tuv(%) 0.00 Fc() 0.47 gtot() 0.34
Colour 13Tv(%) 0.0 Ts(%) 0.0 Rs(%) 70.4 As(%) 29.6 Tuv(%) 0.00 Fc() 0.47 gtot() 0.34
Colour 15Tv(%) 0.0 Ts(%) 0.0 Rs(%) 70.4 As(%) 29.6 Tuv(%) 0.00 Fc() 0.47 gtot() 0.34
Colour 16Tv(%) 0.0 Ts(%) 0.0 Rs(%) 70.4 As(%) 29.6 Tuv(%) 0.00 Fc() 0.47 gtot() 0.34
Colour 18Tv(%) 0.0 Ts(%) 0.0 Rs(%) 62.6 As(%) 37.4 Tuv(%) 0.00 Fc() 0.52 gtot() 0.37
Colour 20Tv(%) 0.0 Ts(%) 0.0 Rs(%) 62.6 As(%) 37.4 Tuv(%) 0.00 Fc() 0.52 gtot() 0.37
Colour 21Tv(%) 0.0 Ts(%) 0.0 Rs(%) 62.6 As(%) 37.4 Tuv(%) 0.00 Fc() 0.52 gtot() 0.37
Colour 22Tv(%) 0.0 Ts(%) 0.0 Rs(%) 70.4 As(%) 29.6 Tuv(%) 0.00 Fc() 0.47 gtot() 0.34
Colour 23Tv(%) 0.0 Ts(%) 0.0 Rs(%) 66.2 As(%) 33.8 Tuv(%) 0.00 Fc() 0.50 gtot() 0.36
Colour 24Tv(%) 0.0 Ts(%) 0.0 Rs(%) 62.6 As(%) 37.4 Tuv(%) 0.00 Fc() 0.52 gtot() 0.37
Fc + gtot: Value calculated with glass: 0.72 / Ug = 1.6 W/m² K, DIN EN 13363-1

Classification of solar shading devices (DIN EN 14501:2021)

Colour Glare control Privacy at night Sight contact with the outside Daylight utilisation
Colour 1Glare control 4 Privacy at night 4 Sight contact with the outside 0 Daylight utilisation 0
Colour 2Glare control 4 Privacy at night 4 Sight contact with the outside 0 Daylight utilisation 0
Colour 3Glare control 4 Privacy at night 4 Sight contact with the outside 0 Daylight utilisation 0
Colour 4Glare control 4 Privacy at night 4 Sight contact with the outside 0 Daylight utilisation 0
Colour 10Glare control 4 Privacy at night 4 Sight contact with the outside 0 Daylight utilisation 0
Colour 12Glare control 4 Privacy at night 4 Sight contact with the outside 0 Daylight utilisation 0
Colour 13Glare control 4 Privacy at night 4 Sight contact with the outside 0 Daylight utilisation 0
Colour 15Glare control 4 Privacy at night 4 Sight contact with the outside 0 Daylight utilisation 0
Colour 16Glare control 4 Privacy at night 4 Sight contact with the outside 0 Daylight utilisation 0
Colour 18Glare control 4 Privacy at night 4 Sight contact with the outside 0 Daylight utilisation 0
Colour 20Glare control 4 Privacy at night 4 Sight contact with the outside 0 Daylight utilisation 0
Colour 21Glare control 4 Privacy at night 4 Sight contact with the outside 0 Daylight utilisation 0
Colour 22Glare control 4 Privacy at night 4 Sight contact with the outside 0 Daylight utilisation 0
Colour 23Glare control 4 Privacy at night 4 Sight contact with the outside 0 Daylight utilisation 0
Colour 24Glare control 4 Privacy at night 4 Sight contact with the outside 0 Daylight utilisation 0
0: No effect, 1: Low effect, 2: Medium effect, 3: High effect, 4: Very high effect

Data Sheet

Downloads

Flame retardant
Type B (BS 5867-2)
Class 1 (EN 13773)
On request:
Class 1 (UNI 8456)
NFPA 701
IMO
Certificates
Oeko-Tex
