Versascreen
1%, 2%, 5%, 10%

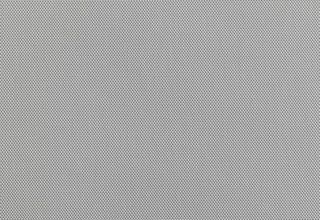

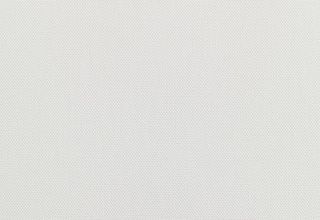

1%

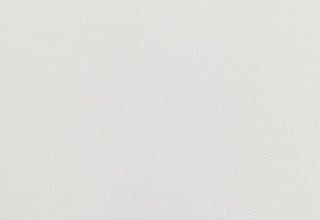

001

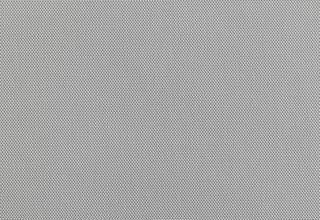

1%
003

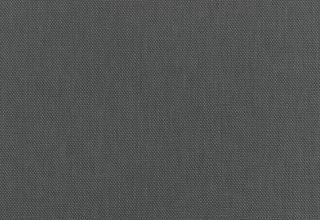

1%
401

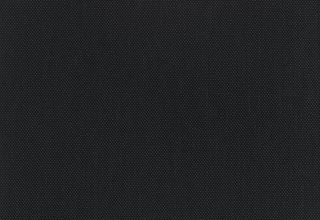

1%
901

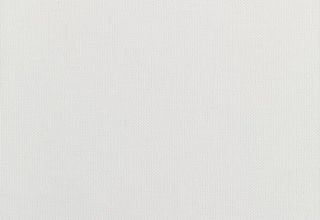

2%
001

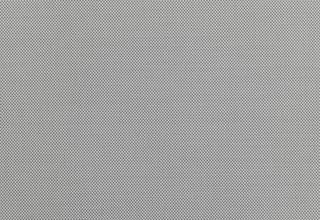

2%

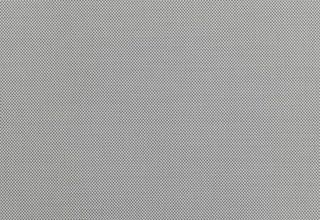

003

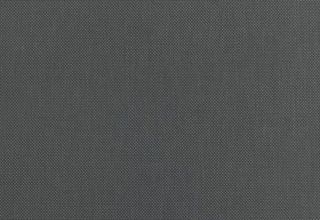

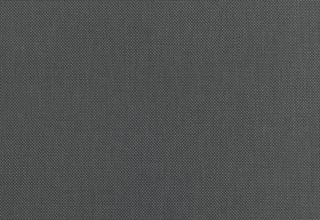

2%
401

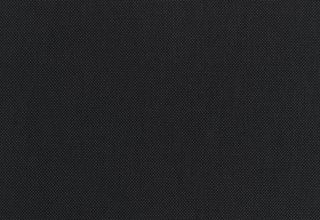

2%
901
5%
001

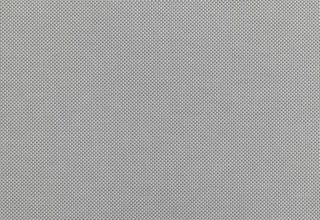

5%
003

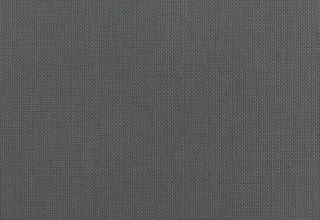

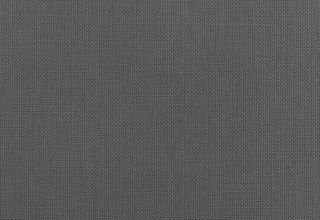

5%
401

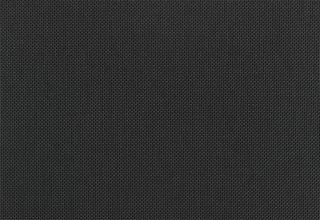

5%
901

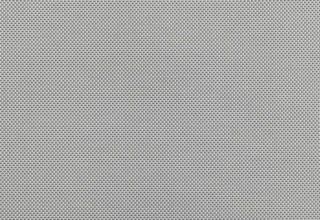

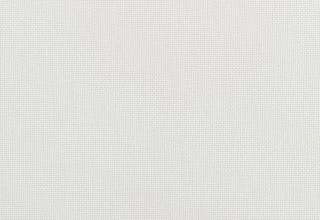

10%
001

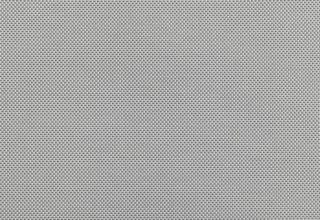

10%
003

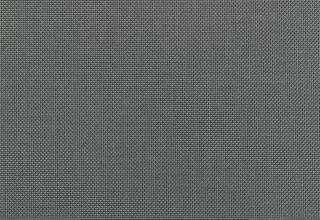

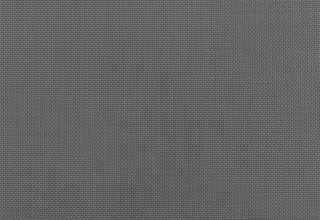

10%
401

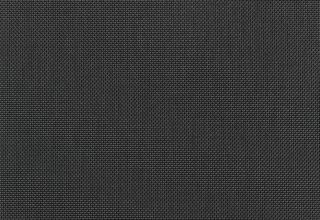

10%

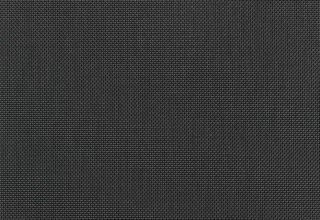

901

Applications




5%
5%, 10%
Not suitable: SG 4905, SG 4900, SG 4907

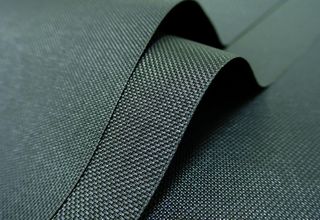

Fabric properties

1%2%5%10%
Semi transparent
25% Polyester, 75% PVC
520 g/m²510 g/m²420 g/m²400 g/m²
0.70 mm0.63 mm0.55 mm0.55 mm
295 cm
12.7 cm, 250 cm, 300 cm

Features / Technical properties

8
Flame retardant
Optimised for workstations
Various openness factors
Antimicrobial (ASTM - SGS)
Applicable in humid areas
Oeko-Tex, Greenguard
Special colours from 800 m
Weldable

Washing instructions

Oeko-TexGreenguardFabric tested for increased mould resistance

Optical and solar coefficients (± 5%, DIN EN 410)

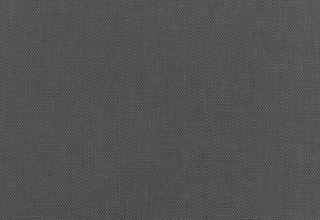

Versascreen 1%
Colour
Colour 001Tv(%) 11.0 Ts(%) 15.0 Rs(%) 67.0 As(%) 18.0 Tuv(%) 0.10 Fc() 0.50 gtot() 0.36
Colour 003Tv(%) 4.5 Ts(%) 7.0 Rs(%) 51.0 As(%) 42.0 Tuv(%) 0.10 Fc() 0.60 gtot() 0.43
Colour 401Tv(%) 0.7 Ts(%) 3.0 Rs(%) 17.0 As(%) 80.0 Tuv(%) 0.00 Fc() 0.81 gtot() 0.58
Colour 901Tv(%) 0.1 Ts(%) 0.5 Rs(%) 4.0 As(%) 95.5 Tuv(%) 0.00 Fc() 0.89 gtot() 0.64
Versascreen 2%
Colour
Colour 001Tv(%) 12.0 Ts(%) 16.0 Rs(%) 72.0 As(%) 12.0 Tuv(%) 1.4 Fc() 0.47 gtot() 0.34
Colour 003Tv(%) 5.3 Ts(%) 9.0 Rs(%) 50.0 As(%) 41.0 Tuv(%) 1.4 Fc() 0.61 gtot() 0.44
Colour 401Tv(%) 1.1 Ts(%) 3.0 Rs(%) 17.0 As(%) 80.0 Tuv(%) 0.70 Fc() 0.81 gtot() 0.58
Colour 901Tv(%) 0.8 Ts(%) 1.0 Rs(%) 4.0 As(%) 95.0 Tuv(%) 1.0 Fc() 0.89 gtot() 0.64

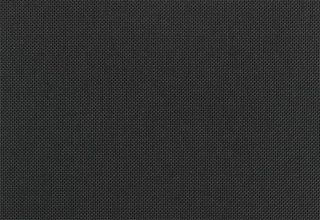

Versascreen 5%
Colour
Colour 001Tv(%) 12.0 Ts(%) 20.0 Rs(%) 66.0 As(%) 14.0 Tuv(%) 6.6 Fc() 0.51 gtot() 0.37
Colour 003Tv(%) 9.0 Ts(%) 12.0 Rs(%) 44.0 As(%) 44.0 Tuv(%) 5.2 Fc() 0.65 gtot() 0.47
Colour 401Tv(%) 6.0 Ts(%) 5.0 Rs(%) 6.0 As(%) 89.0 Tuv(%) 4.8 Fc() 0.88 gtot() 0.64
Colour 901Tv(%) 6.0 Ts(%) 5.0 Rs(%) 5.0 As(%) 90.0 Tuv(%) 7.7 Fc() 0.89 gtot() 0.64
Versascreen 10%
Colour
Colour 001Tv(%) 20.0 Ts(%) 24.0 Rs(%) 63.0 As(%) 13.0 Tuv(%) 6.7 Fc() 0.54 gtot() 0.39
Colour 003Tv(%) 15.0 Ts(%) 19.0 Rs(%) 45.0 As(%) 36.0 Tuv(%) 8.8 Fc() 0.65 gtot() 0.47
Colour 401Tv(%) 9.0 Ts(%) 11.0 Rs(%) 17.0 As(%) 72.0 Tuv(%) 9.3 Fc() 0.82 gtot() 0.59
Colour 901Tv(%) 9.0 Ts(%) 9.0 Rs(%) 4.0 As(%) 87.0 Tuv(%) 9.4 Fc() 0.90 gtot() 0.65
Fc + gtot: Value calculated with glass: 0.72 / Ug = 1.6 W/m² K, DIN EN 13363-1

Classification of solar shading devices (DIN EN 14501:2021)

Versascreen 1%
Colour Glare control Privacy at night Sight contact with the outside Daylight utilisation
Colour 001 3 2 1 2
Colour 003 4 4 0 1
Colour 401 4 2 2 0
Colour 901
Versascreen 2%
Colour Glare control Privacy at night Sight contact with the outside Daylight utilisation
Colour 001 2 2 1 2
Colour 003 3 2 2 1
Colour 401 4 2 2 1
Colour 901 4 2 2 0
Versascreen 5%
Colour Glare control Privacy at night Sight contact with the outside Daylight utilisation
Colour 001 0 1 2 2
Colour 003 1 2 1 1
Colour 401 4 2 2 1
Colour 901 4 2 2 0
Versascreen 10%
Colour Glare control Privacy at night Sight contact with the outside Daylight utilisation
Colour 001 0 1 2 2
Colour 003 0 1 2 2
Colour 401 0 1 3 2
Colour 901 0 1 3 2
0: No effect, 1: Low effect, 2: Medium effect, 3: High effect, 4: Very high effect

Data Sheet

Downloads

Flame retardant
C-s3,d0 (EN 13501-1) 5%
M1 (NF P 92-503/5/7) 5%
Type B (BS 5867-2)
B1 (DIN 4102-1)
On request:
NFPA 701
Certificates
Oeko-Tex
On request:
Greenguard
ASTM

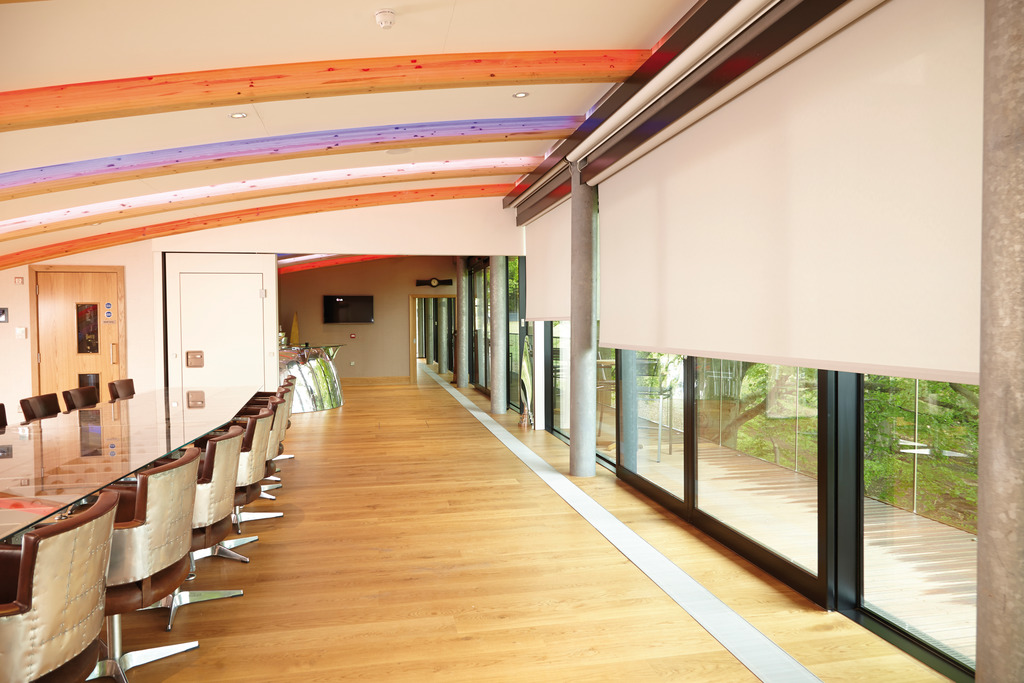

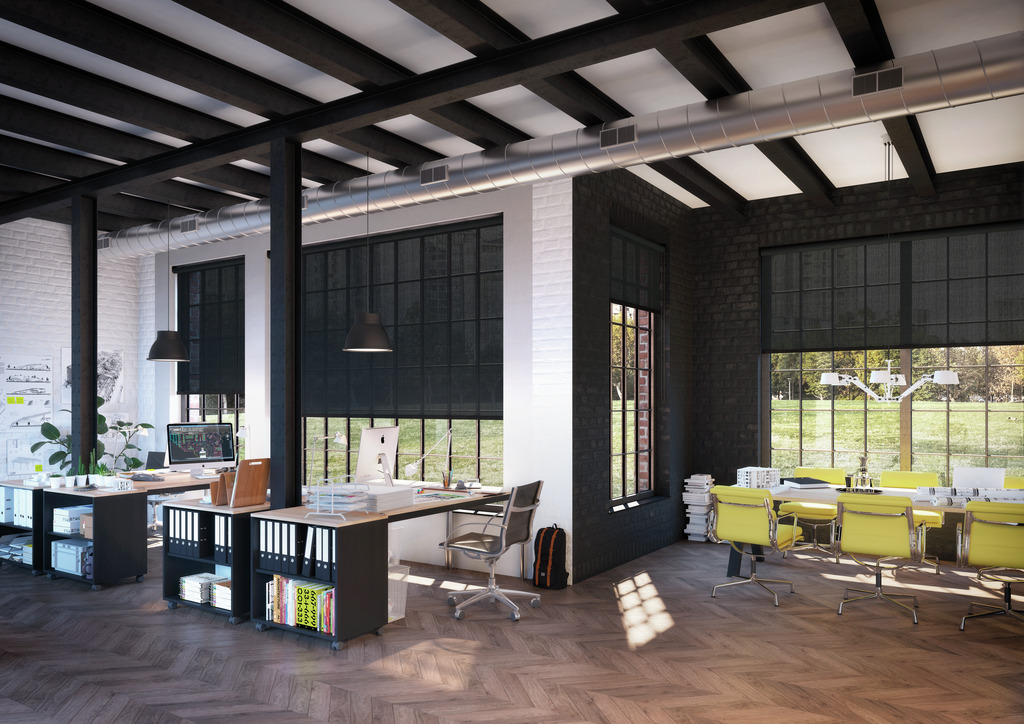

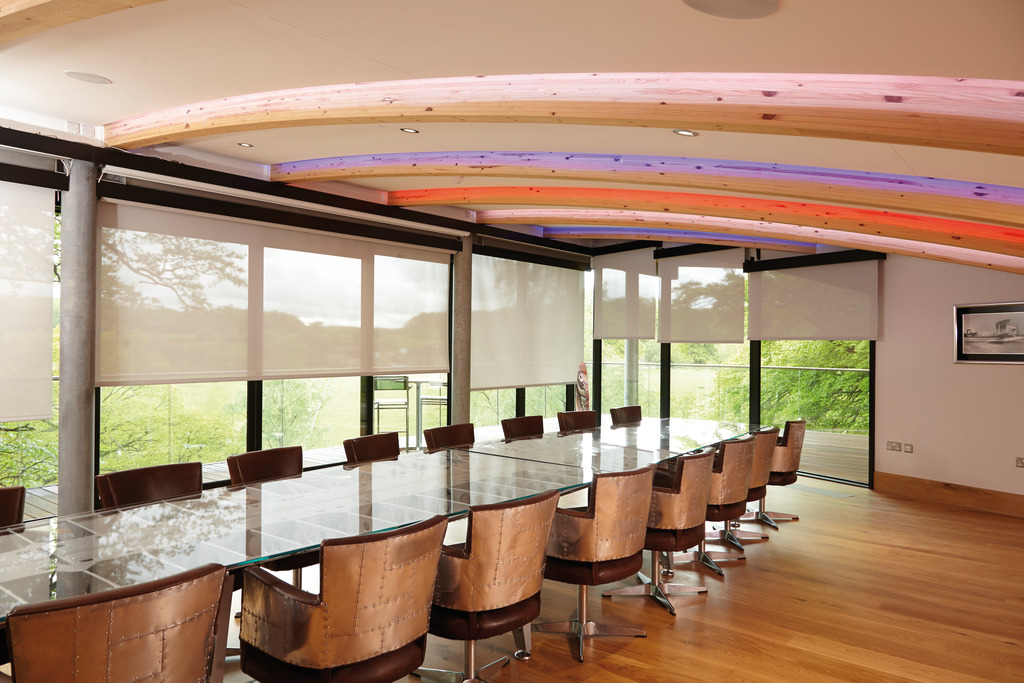

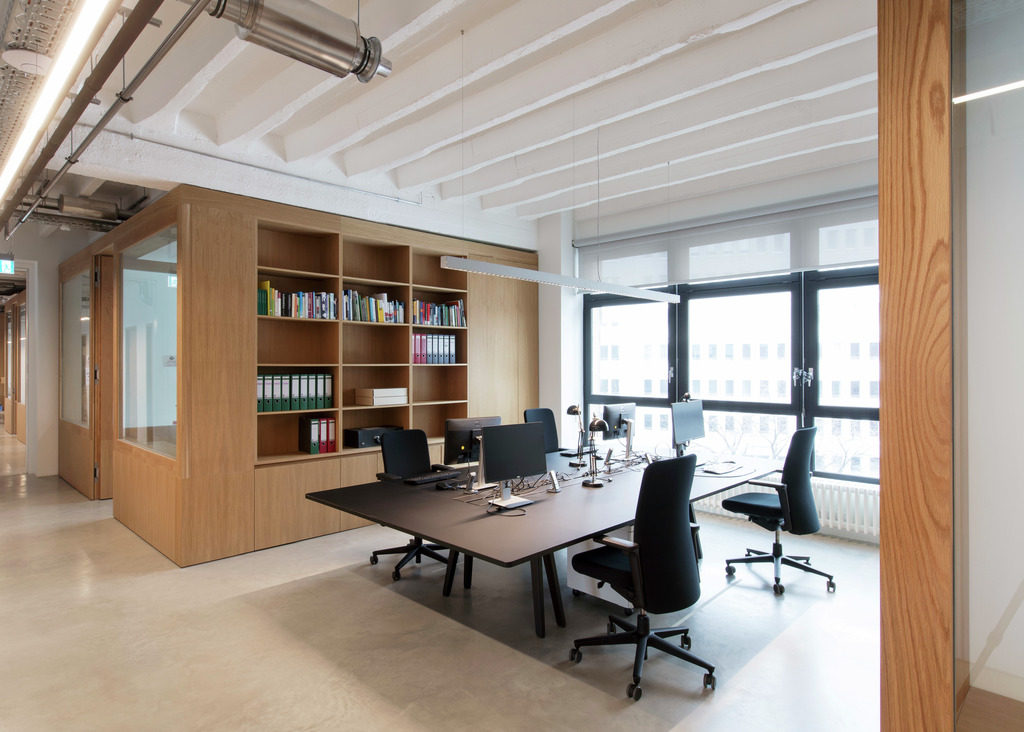

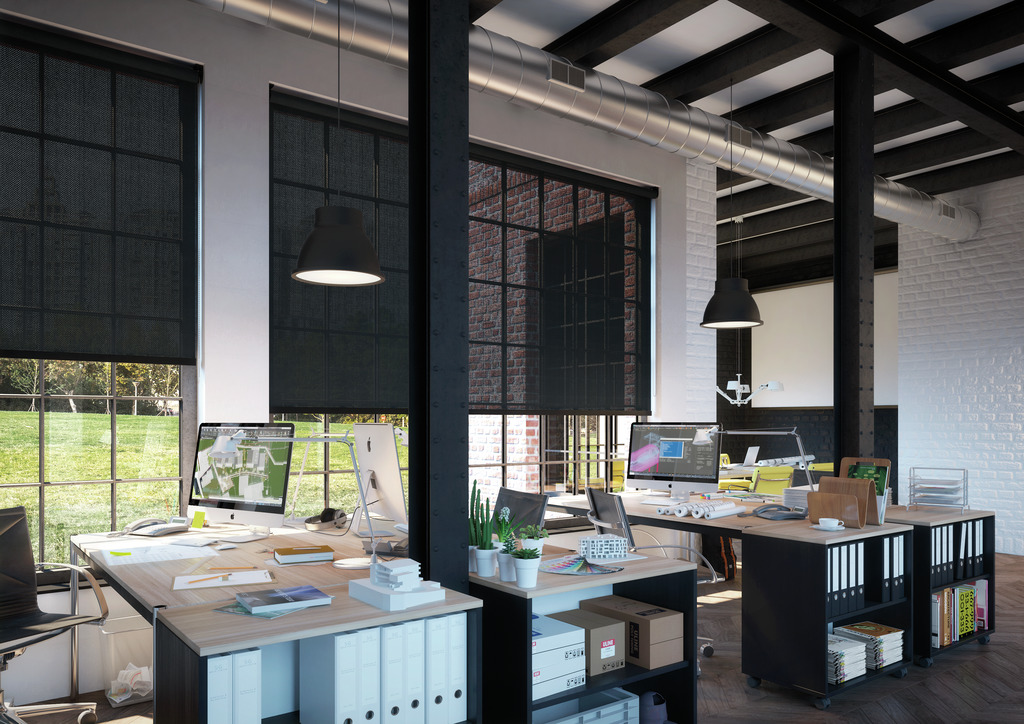

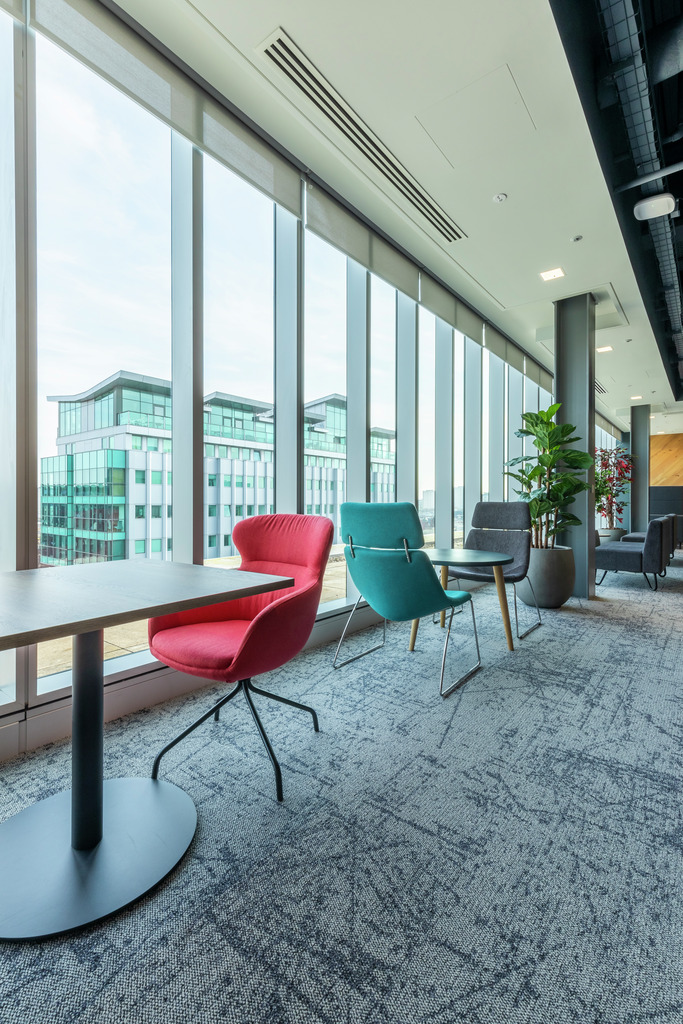

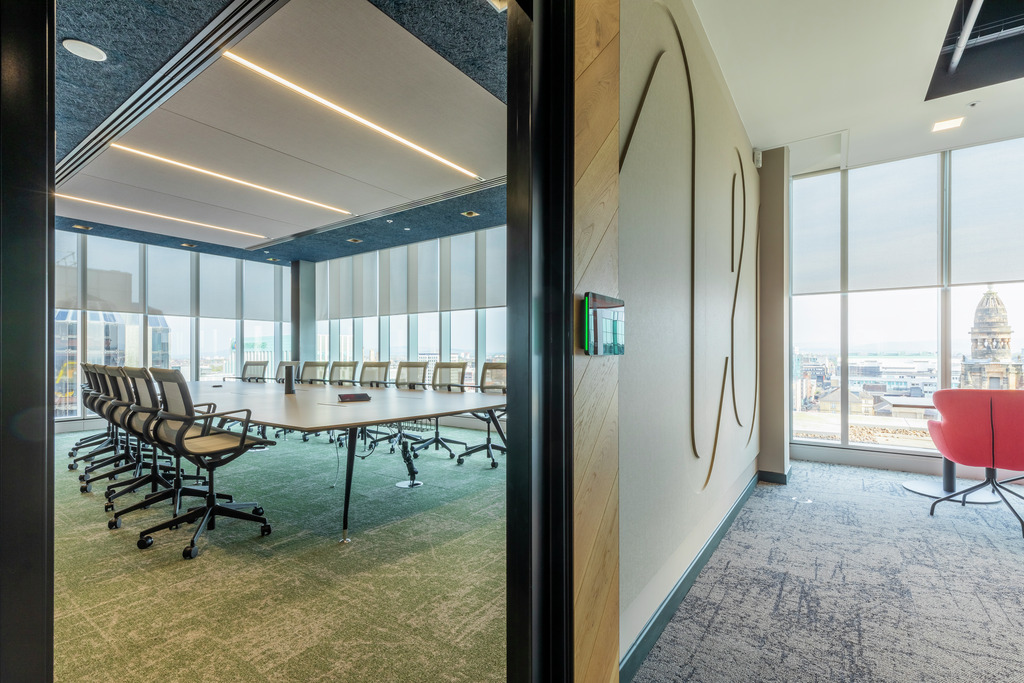

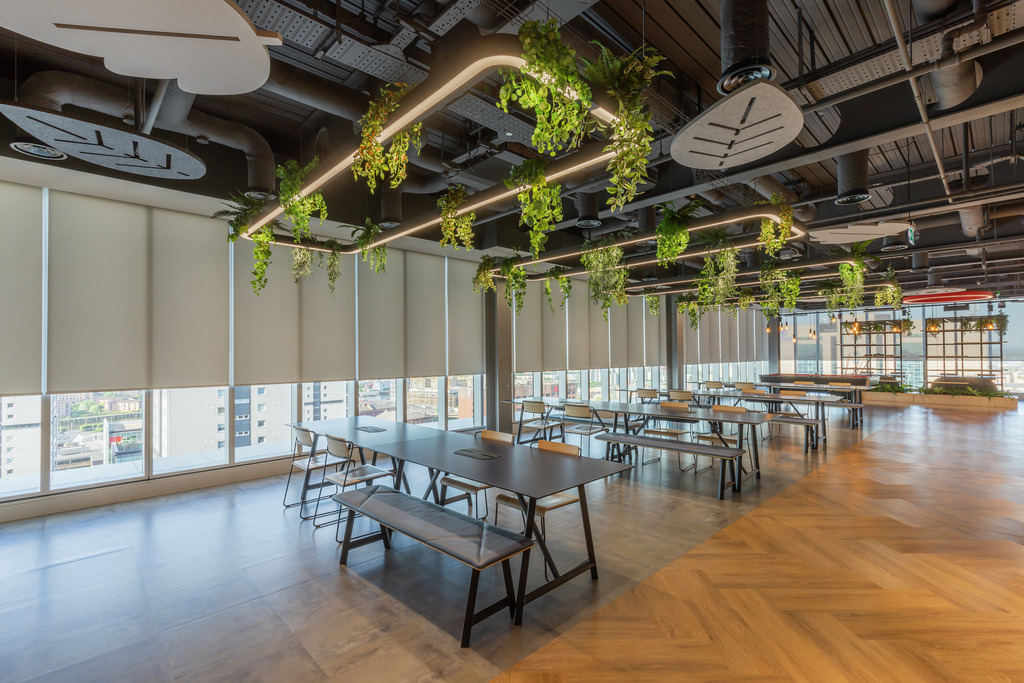

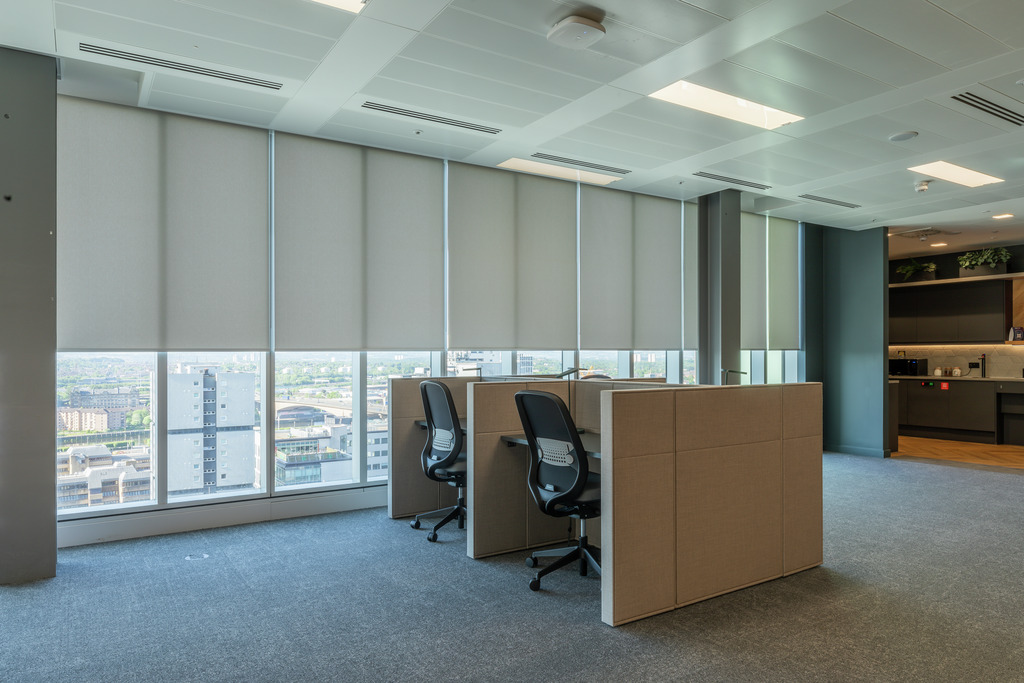

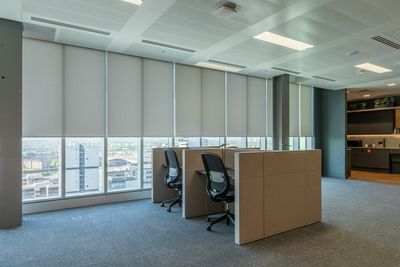

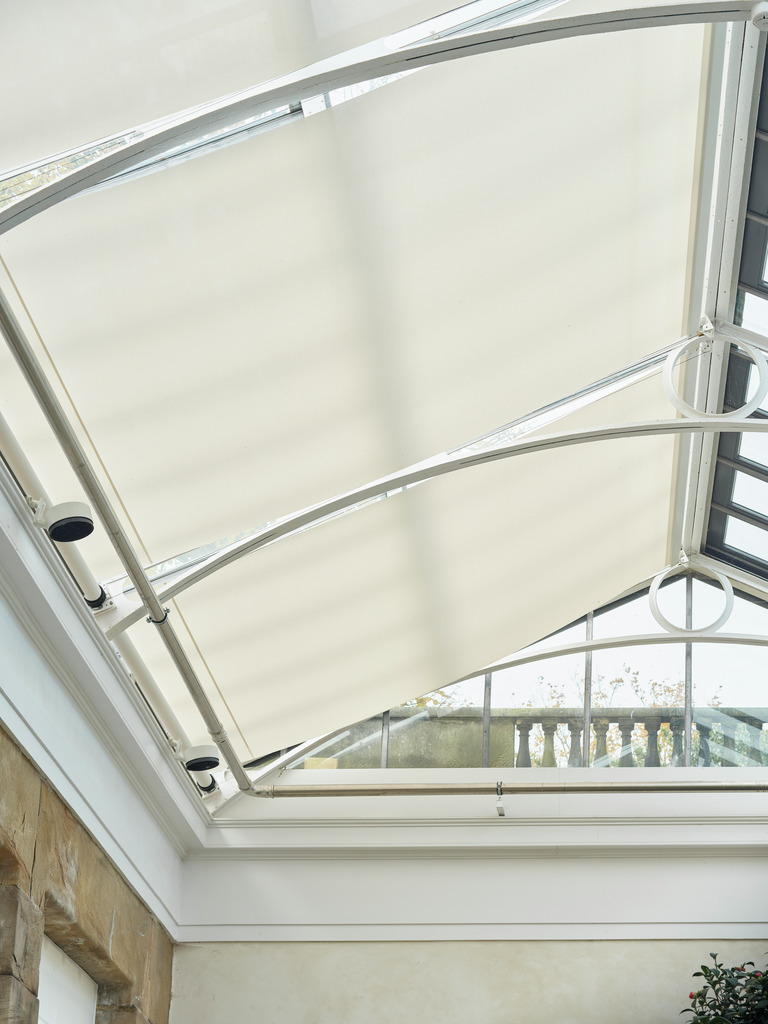

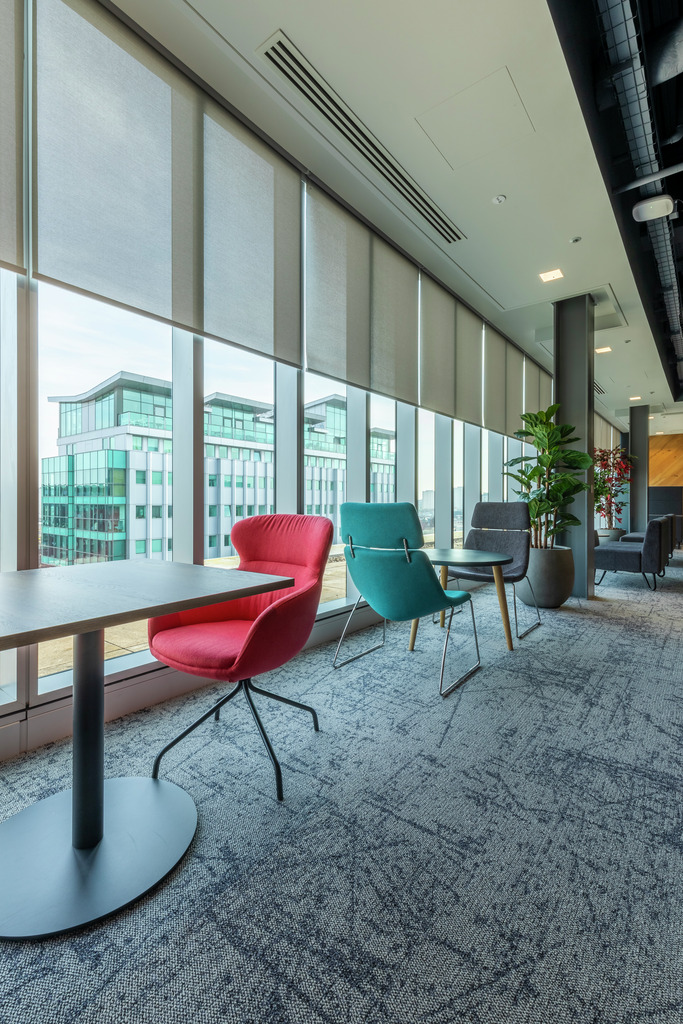

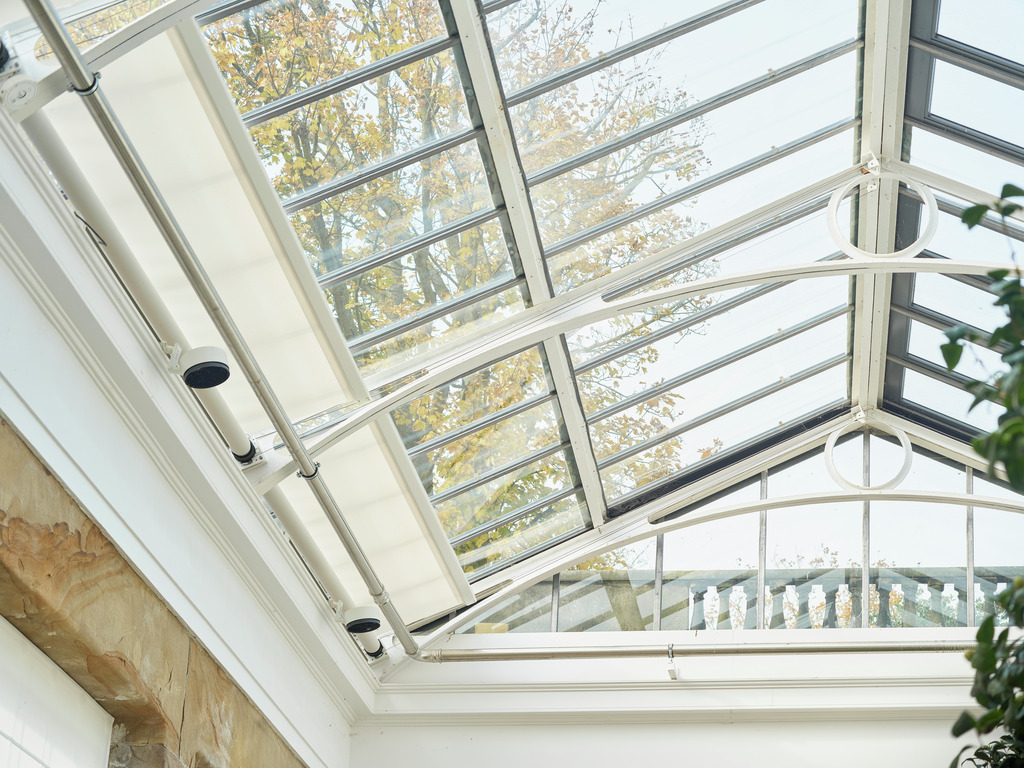

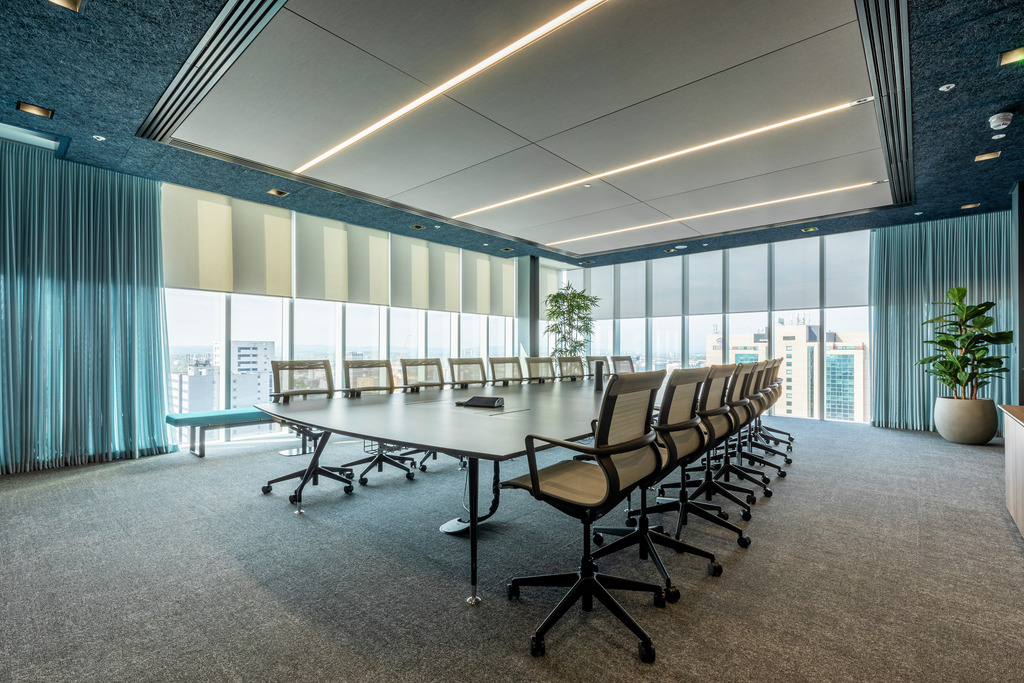

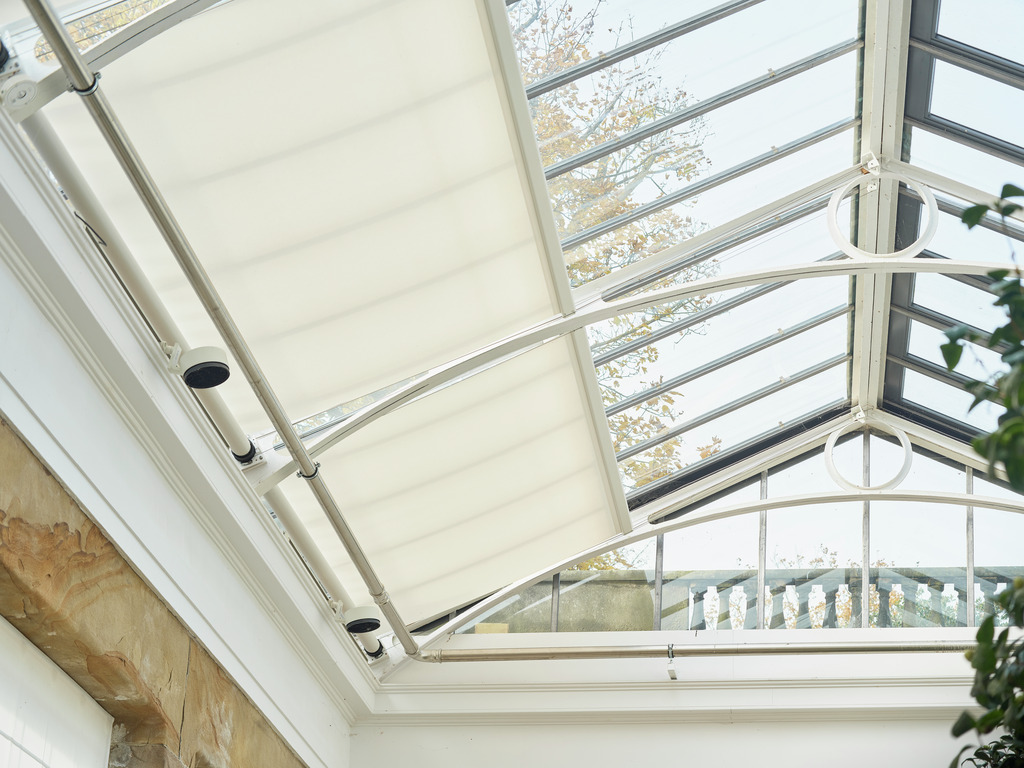

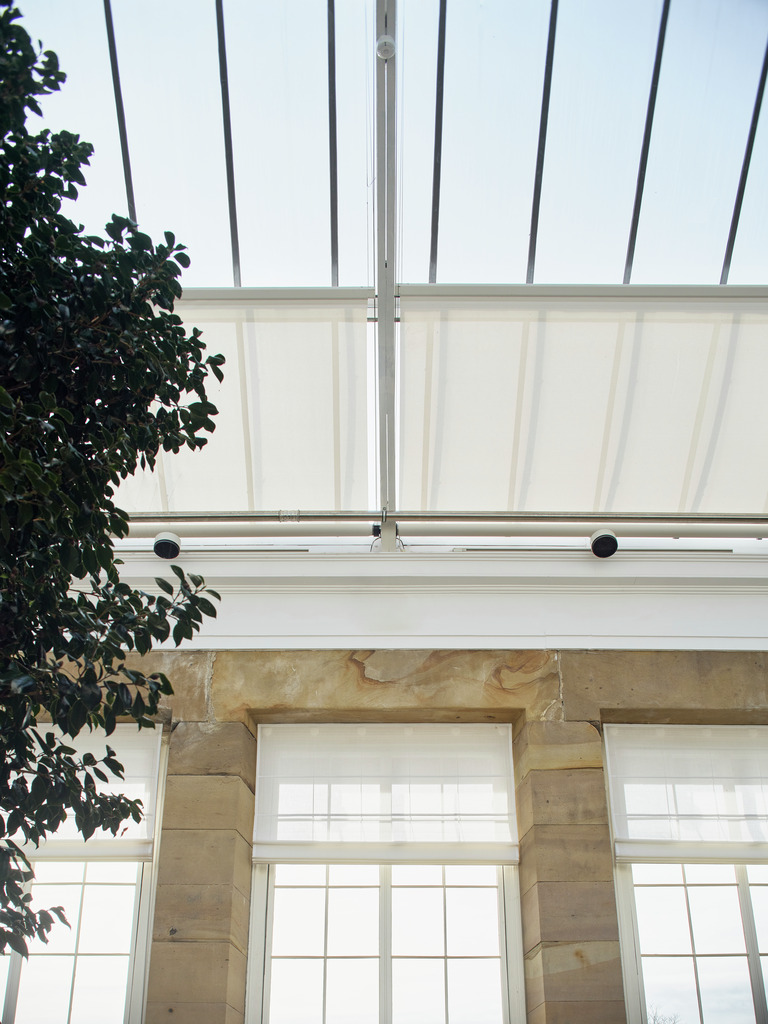

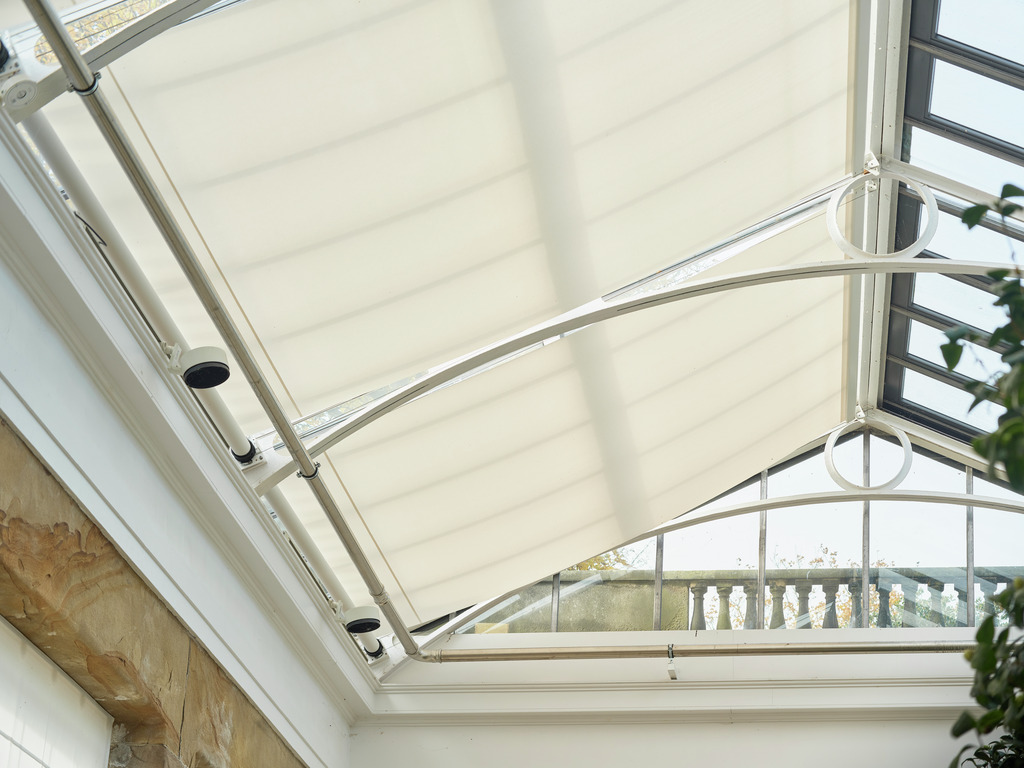

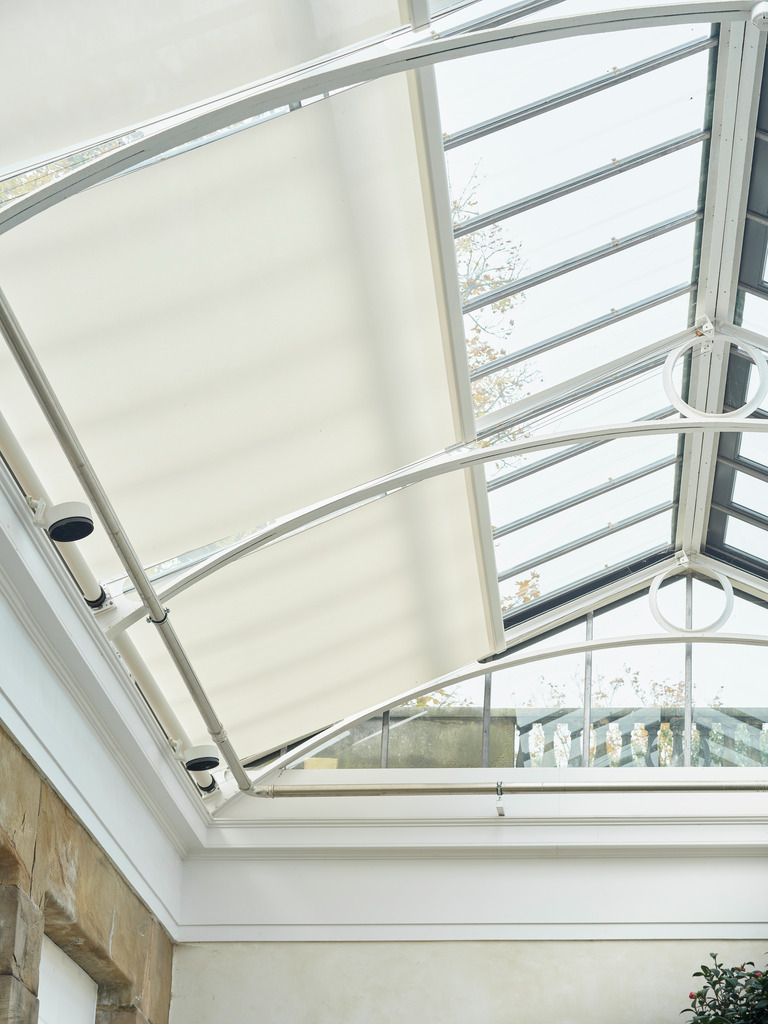

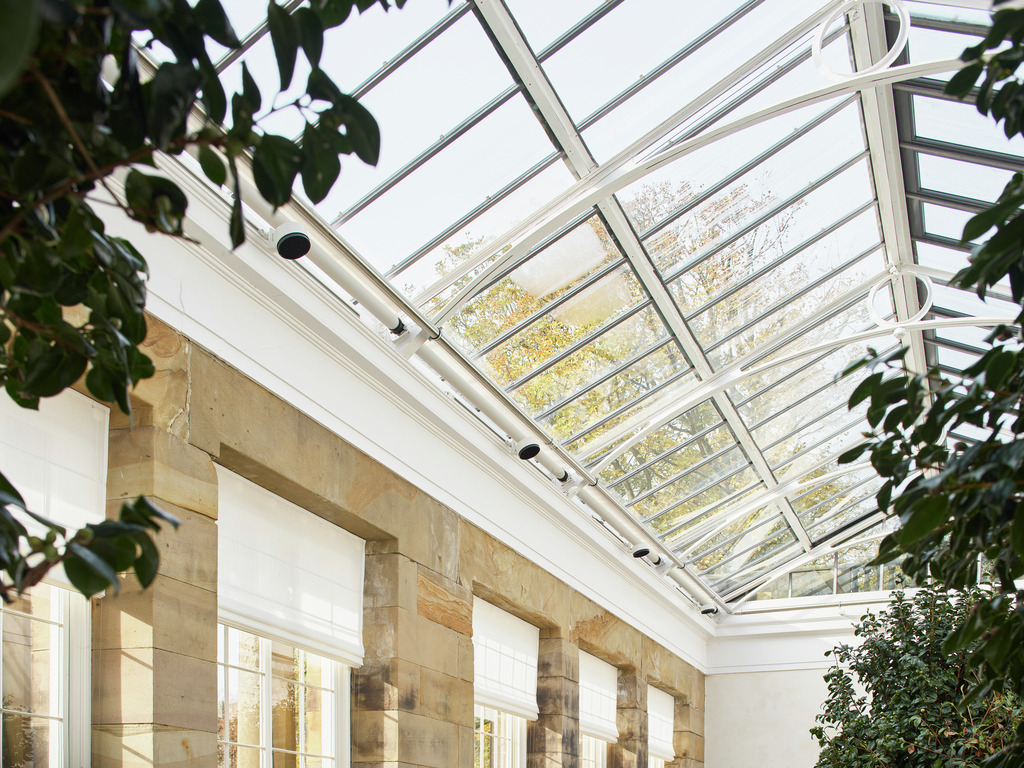

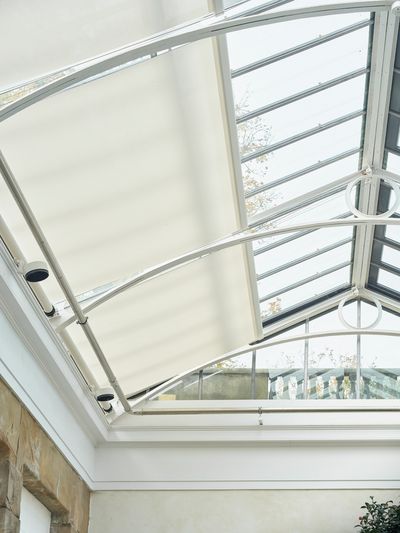

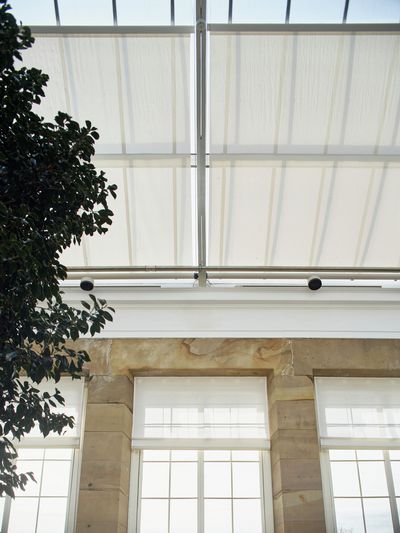

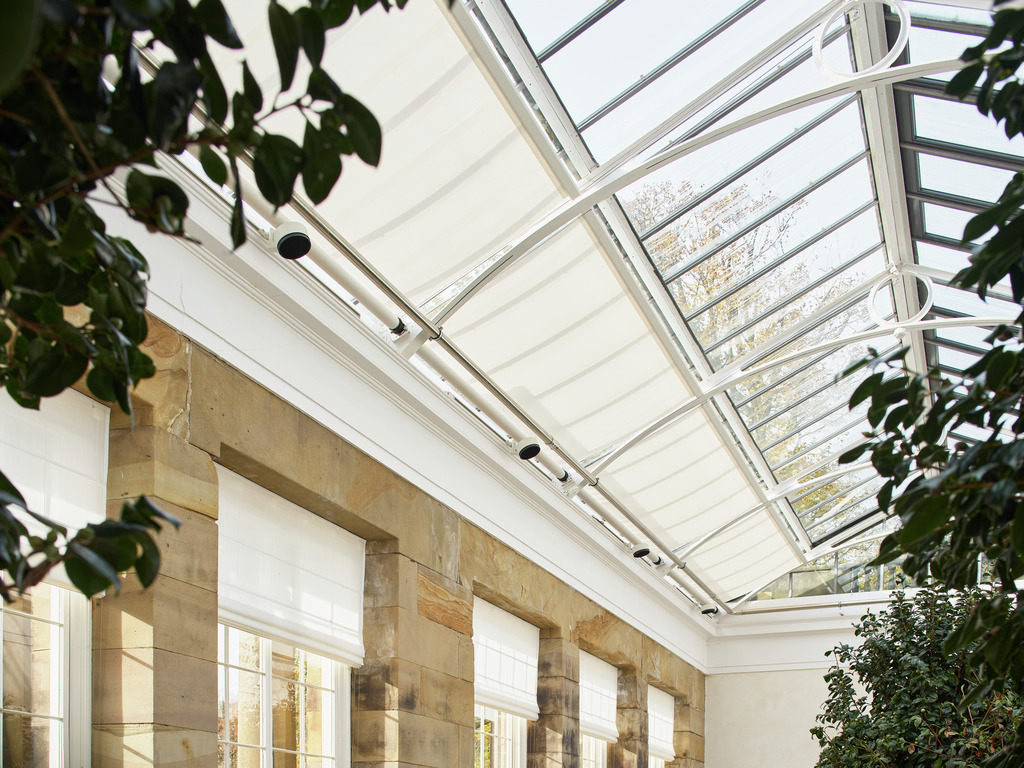

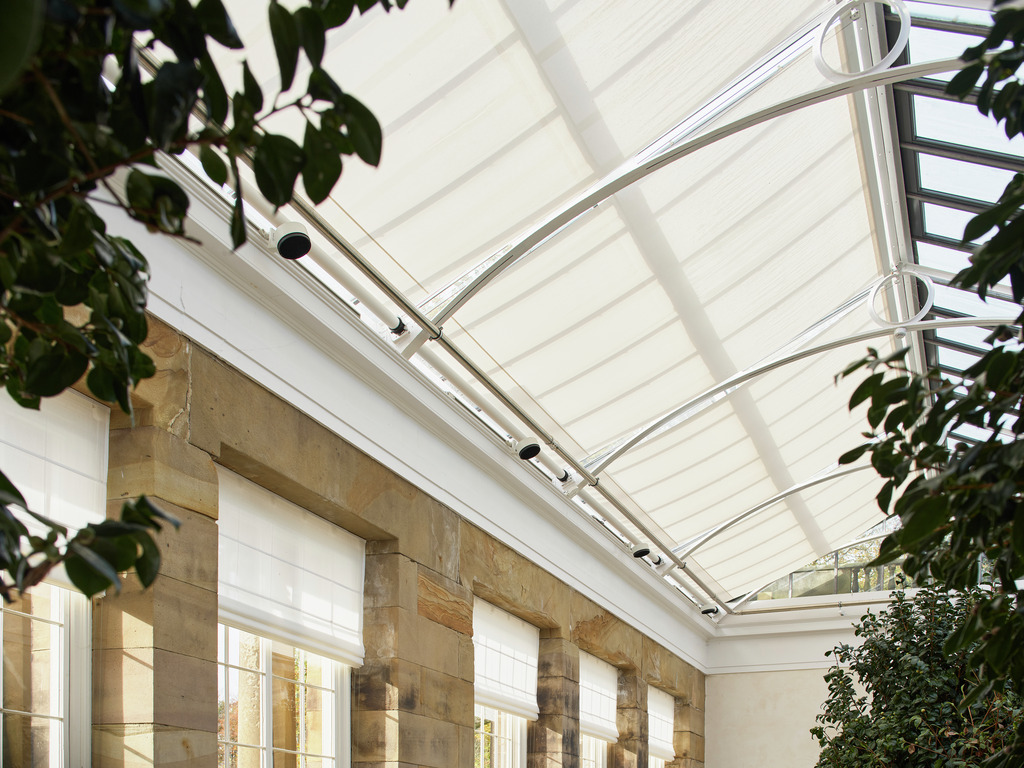

Inspiration
